KNIPEX Cable Cutter Ratchet Action 280mm 52mm Capacity VDE Insulated 95 36 280

KNIPEX Cable Cutter Ratchet Action 280mm 52mm Capacity VDE Insulated 95 36 280

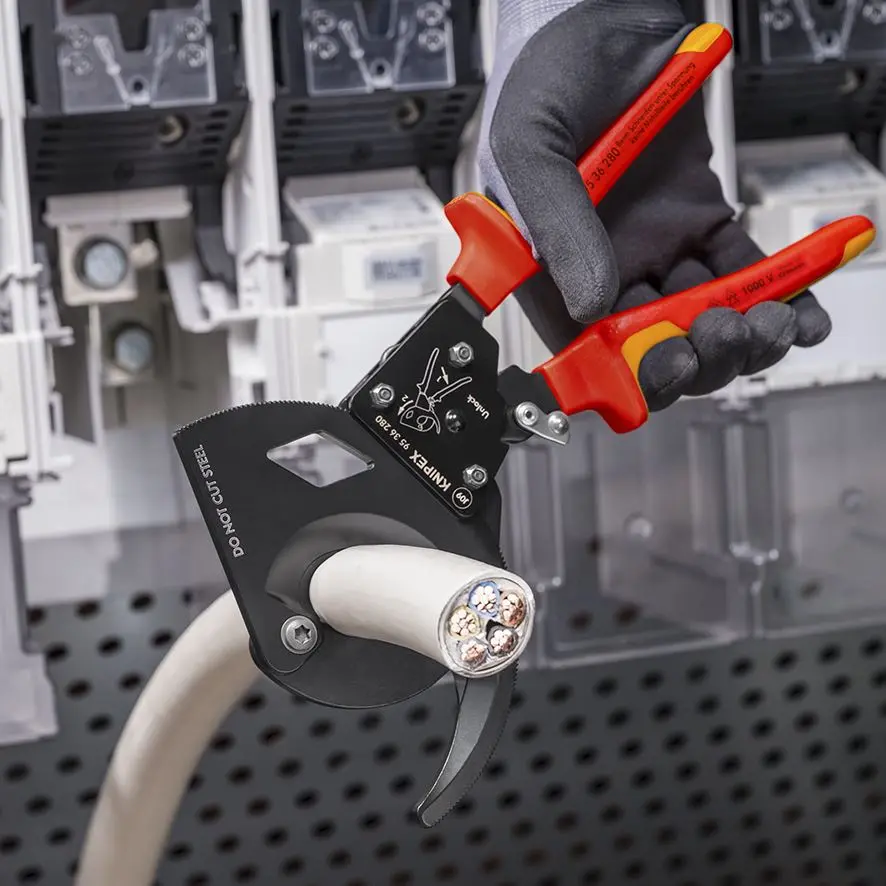

95 36 280 Cable Cutter Sturdy. Easy to use. Stable innovative three-stage ratchet-drive with high leverage for easy cutting in one-hand and two-hand operation. simple handling as a result of low weight and compact design - can be used even in confined areas. Pinch guard prevents operators' fingers being pinched. For cables with single and multi-wire conductors (conductor classes 1 & 2 according to DIN EN 60228, VDE 0295, IEC 60228). Manual open and emergency release possible in any position. Lockable for transport in closed condition - saves space and protects the tool. Not suitable for steel wire, wire ropes and fine-stranded (highly flexible) conductors. Cuts copper and aluminium cables up to a diameter of 52 mm (380 mm²) in one and two-handed operation. hardened cutting edges, precisely ground, cut smoothly and neatly without crushing.

Cutting capacity copper cable, multiple-stranded: 380 mm²

Cutting capacity copper cable, multiple-stranded: Ø 52 mm

MCM: 750

VDE tested: yes

Technical Information:

• Pinch guard prevents operators' fingers being pinched
• For cables with single and multi-wire conductors (conductor classes 1 & 2 according to DIN EN 60228, VDE 0295, IEC 60228)
• Manual open and emergency release possible in any position
• Lockable for transport in closed condition - saves space and protects the tool
• Not suitable for steel wire, wire ropes and fine-stranded (highly flexible) conductors

Downloadable Files:

• Data Sheet: View Here
