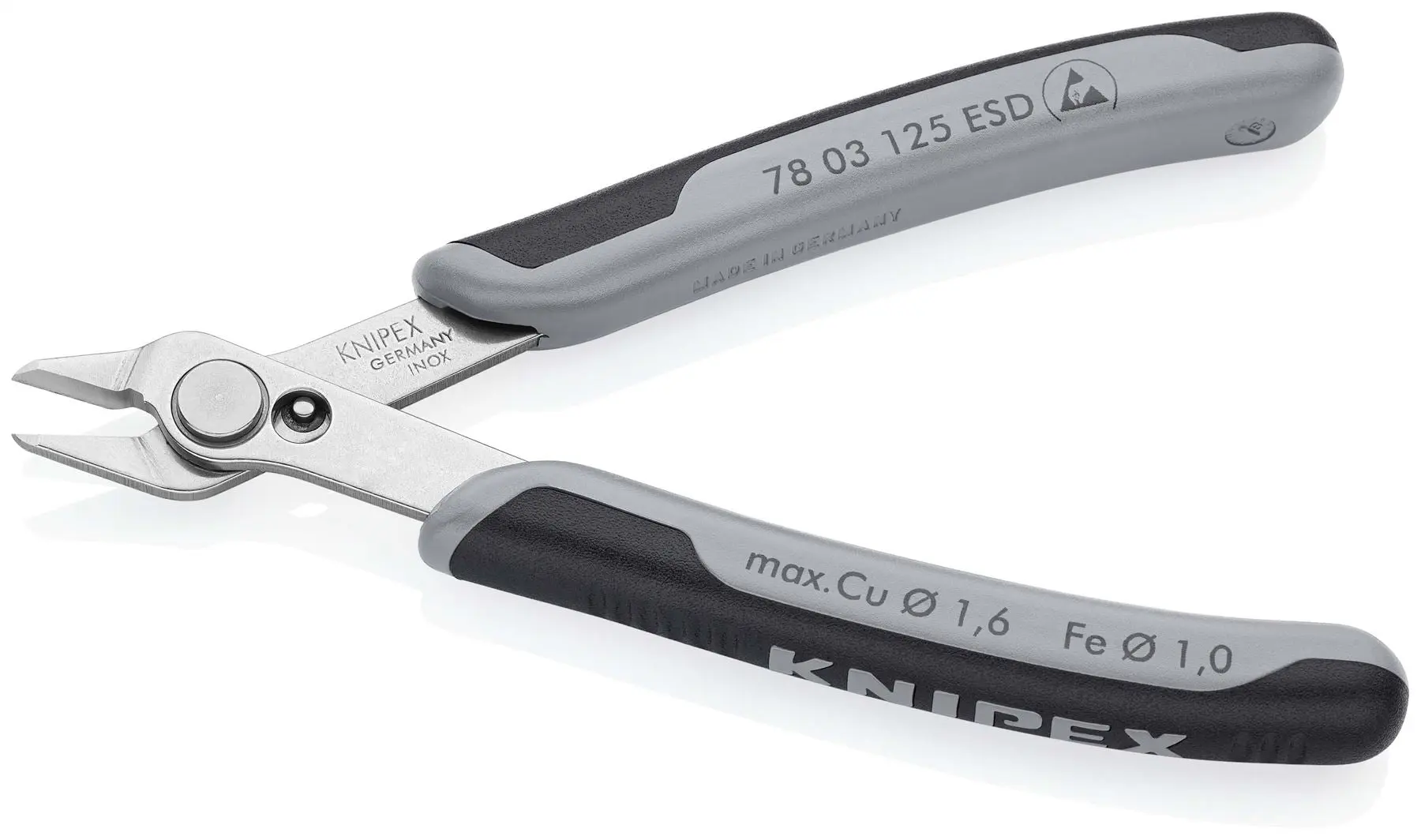

Knipex Electronic Super Knips 125mm ESD Electrostatic Discharge Fine Cutting Pliers 78 03 125 ESD

KNIPEX Electronic Super Knips 125mm ESD Electrostatic Discharge Fine Cutting Pliers 78 03 125 ESD

78 03 125 ESD Electronic Super Knips® ESD
Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Electrically discharging handles - dissipative. Ground, very sharp cutting edges without bevel. Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life. Precisely shaped tips cut wires close to a surface from Ø 0.2 mm. Joint with stainless steel rivet. Extremely smooth movement for minimum operator fatigue. With opening spring and opening limiter. cutting edge hardness approx. 54 HRC. INOX tool steel.

Cutting capacities medium hard wire (diameter): Ø 1.0 mm

Cutting capacities soft wire (diameter): Ø 0.2 – 1.6 mm

Jaw length (B): 9 mm

Jaw thickness (joint) (D): 7.5 mm

Head width (A): 13.5 mm

ESD: yes

Technical Information:

• cutting edge hardness approx. 54 HRC
• Electrically discharging handles - dissipative
• extremely smooth movement for minimum operator fatigue
• ground, very sharp cutting edges without bevel
• INOX tool steel
• Joint with stainless steel rivet

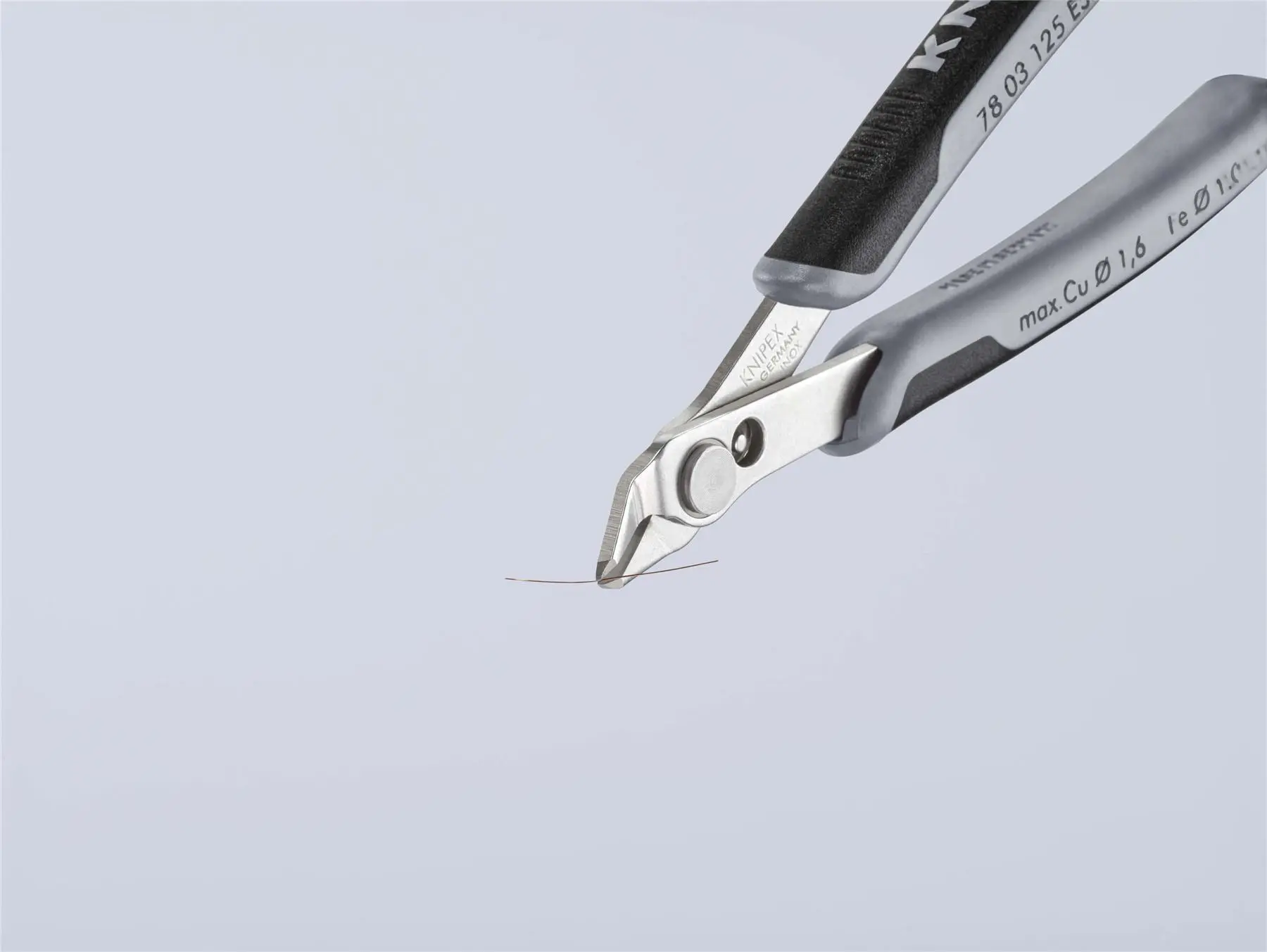

• Precisely shaped tips cut wires close to a surface from Ø 0.2 mm

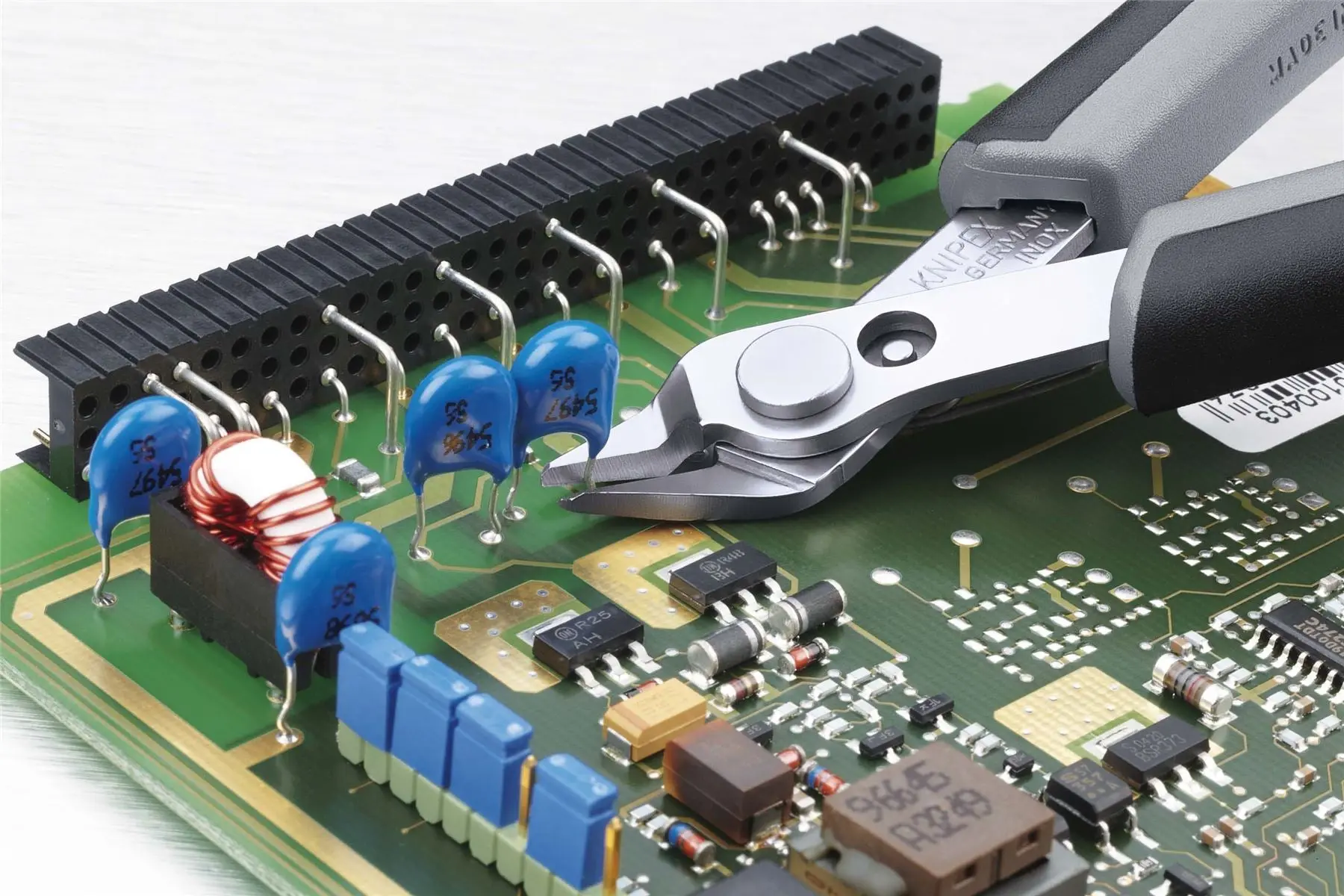

• precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life
• with opening spring and opening limiter

Downloadable Files:

• Data Sheet: View Here
