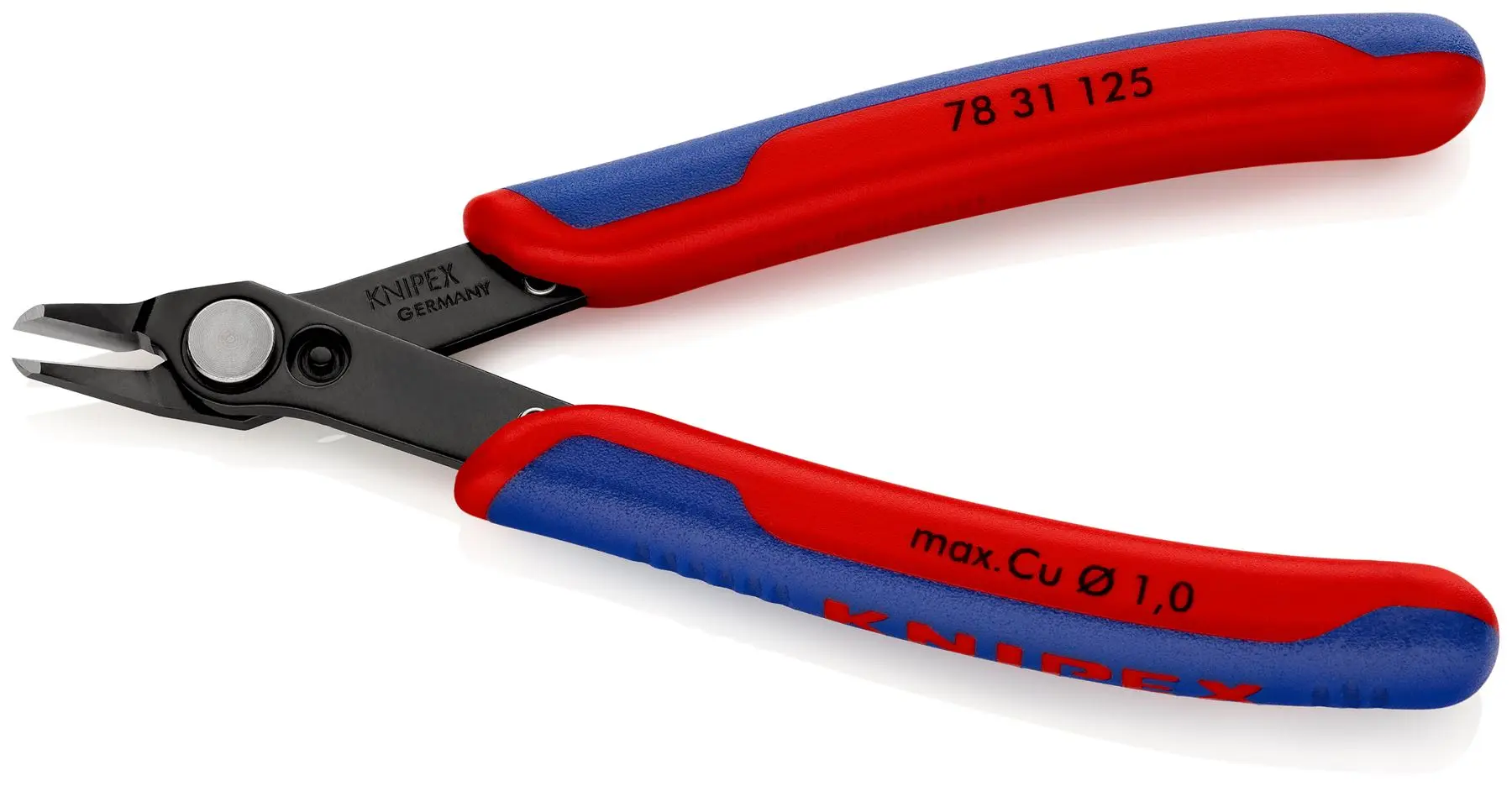

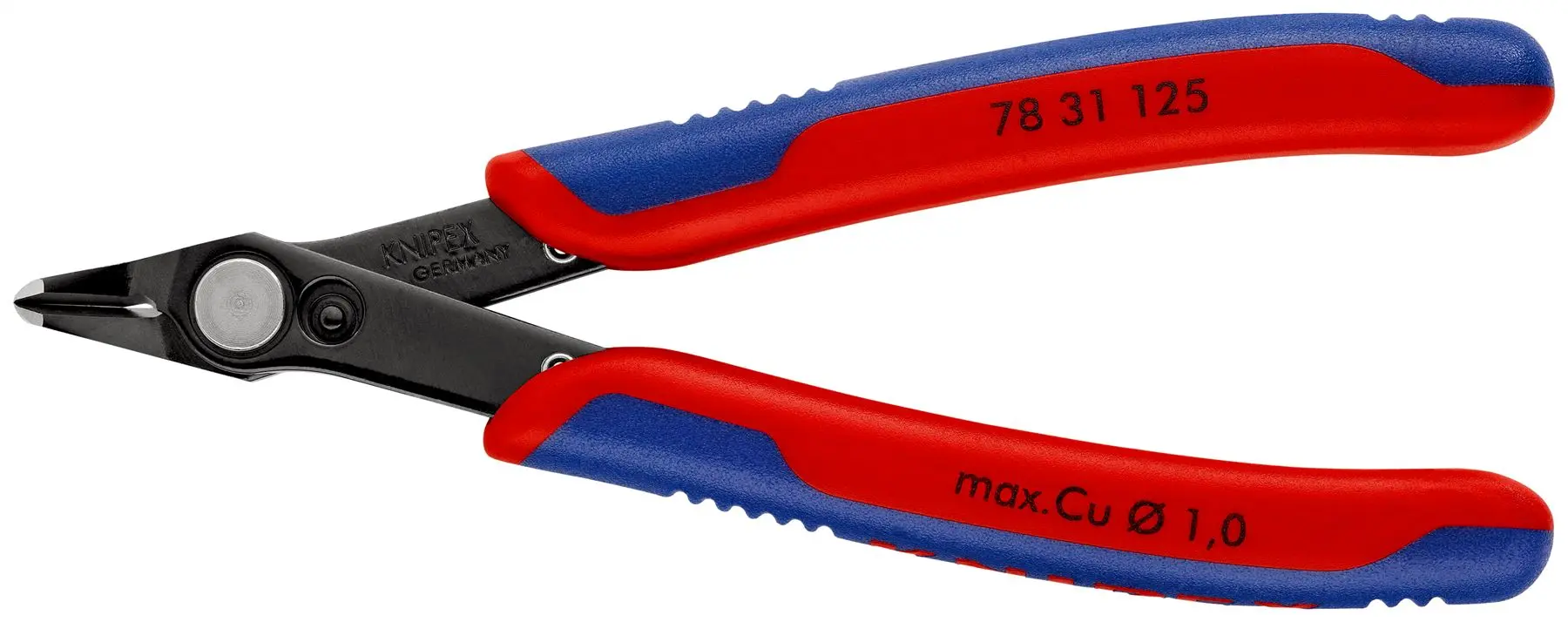

KNIPEX Electronic Super Knips with Narrow Head 125mm Multi Component Grips 78 31 125

KNIPEX Electronic Super Knips with Narrow Head 125mm Multi Component Grips 78 31 125

78 31 125 Electronic Super Knips® Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Ground, very sharp cutting edges without bevel. Precisely shaped tips cut wires close to a surface from Ø 0.2 mm. Shear cut with controlled micro cutting edge offset for the most precise cutting of even the thinnest of wires and for a long service life. Joint with stainless steel rivet. Extremely smooth movement for minimum operator fatigue. With opening spring and opening limiter. with narrow head. cutting edges additionally induction-hardened, cutting edge hardness approx. 60 HRC. special tool steel, burnished.

Cutting capacities soft wire (diameter): Ø 0.2 – 1.6 mm

Jaw length (B): 9 mm

Jaw thickness (joint) (D): 7.5 mm

Head width (A): 12.5 mm

Technical Information:

• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Ground, very sharp cutting edges without bevel
• Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
• Shear cut with controlled micro cutting edge offset for the most precise cutting of even the thinnest of wires and for a long service life
• Joint with stainless steel rivet
• Extremely smooth movement for minimum operator fatigue
• With opening spring and opening limiter

Downloadable Files:

• Data Sheet: View Here
