Knipex StriX Insulation Wire Stippiers with Cable Shears 180mm VDE Tested 13 66 180

KNIPEX StriX Insulation Wire Strippers with Cable Shears 180mm VDE Tested 13 66 180

13 66 180 KNIPEX StriX®

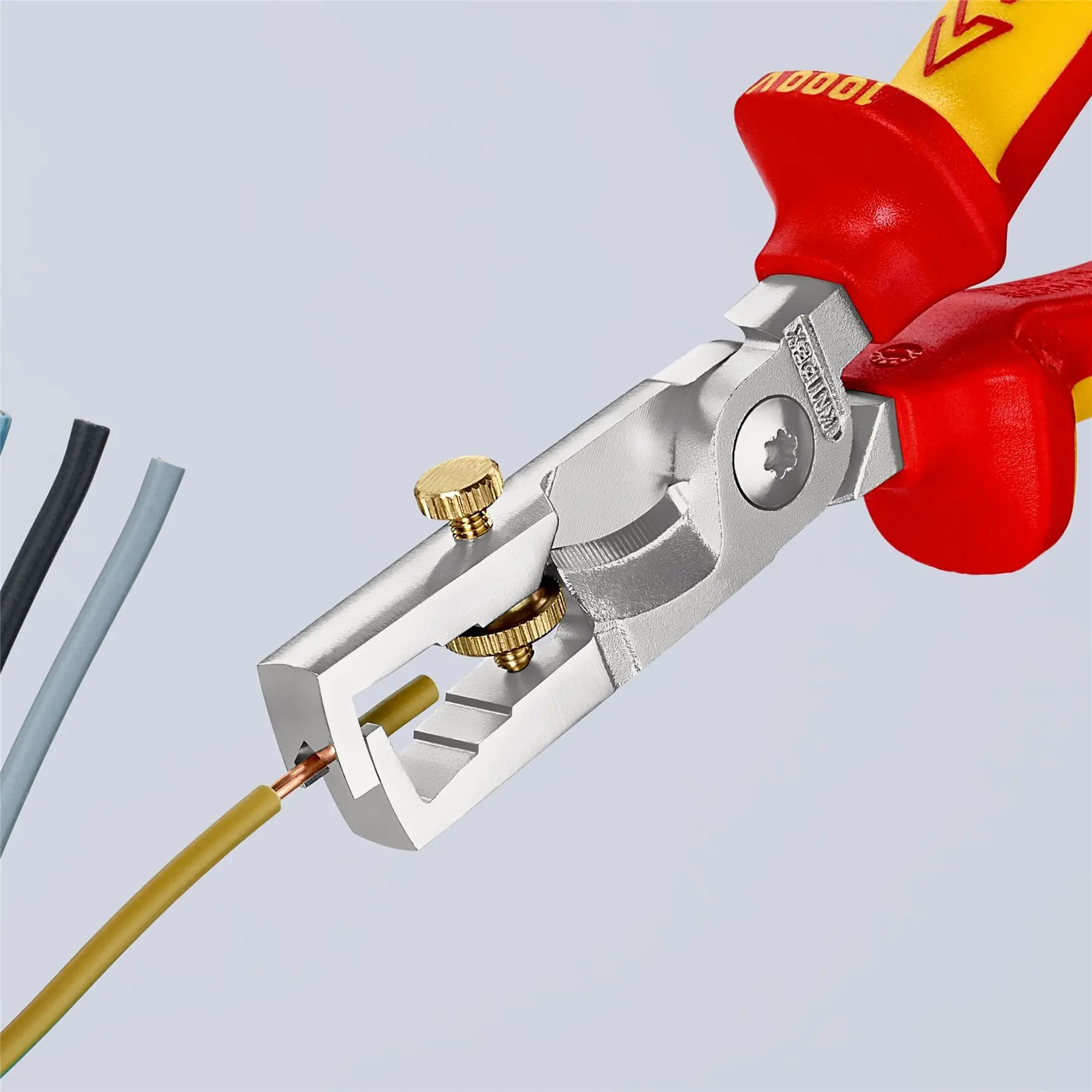

Wire stripper with cable shears – two essential electrical installations tools in one pair of pliers. Integrated cable shears for the clean cutting of Cu- and Al-cables without crushing. Cutting edges additionally induction-hardened, cutting edge hardness approx. 57 HRC. Universal adjustment of the stripping blades by means of a knurled screw. Slim dimensions for easy access. Stripping of single-, multi- and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm² cross-section. Graduated jaw provides a visual orientation aid when stripping wire in standard lengths (11 mm and 16 mm).

Cutting capacity copper cable, multiple-stranded: 50 mm²

Cutting capacity copper cable, multiple-stranded: Ø 15 mm

Stripping capacities in square millimetres: 10.0 mm²

Stripping capacities (diameter): Ø 5.0 mm

AWG: 8

VDE tested: yes

Technical Information:

• cutting edges additionally induction-hardened, cutting edge hardness approx. 57 HRC
• Graduated jaw provides a visual orientation aid when stripping wire in standard lengths (11 mm and 16 mm)
• Integrated cable shears for the clean cutting of Cu- and Al-cables without crushing up to Ø 15 mm (5 x 2,5 mm²)
• Slim dimensions for easy access
• Stripping of single-, multi- and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm² cross-section
• Universal adjustment of the stripping blades by means of a knurled screw

Downloadable Files:

• Data Sheet: View Here
