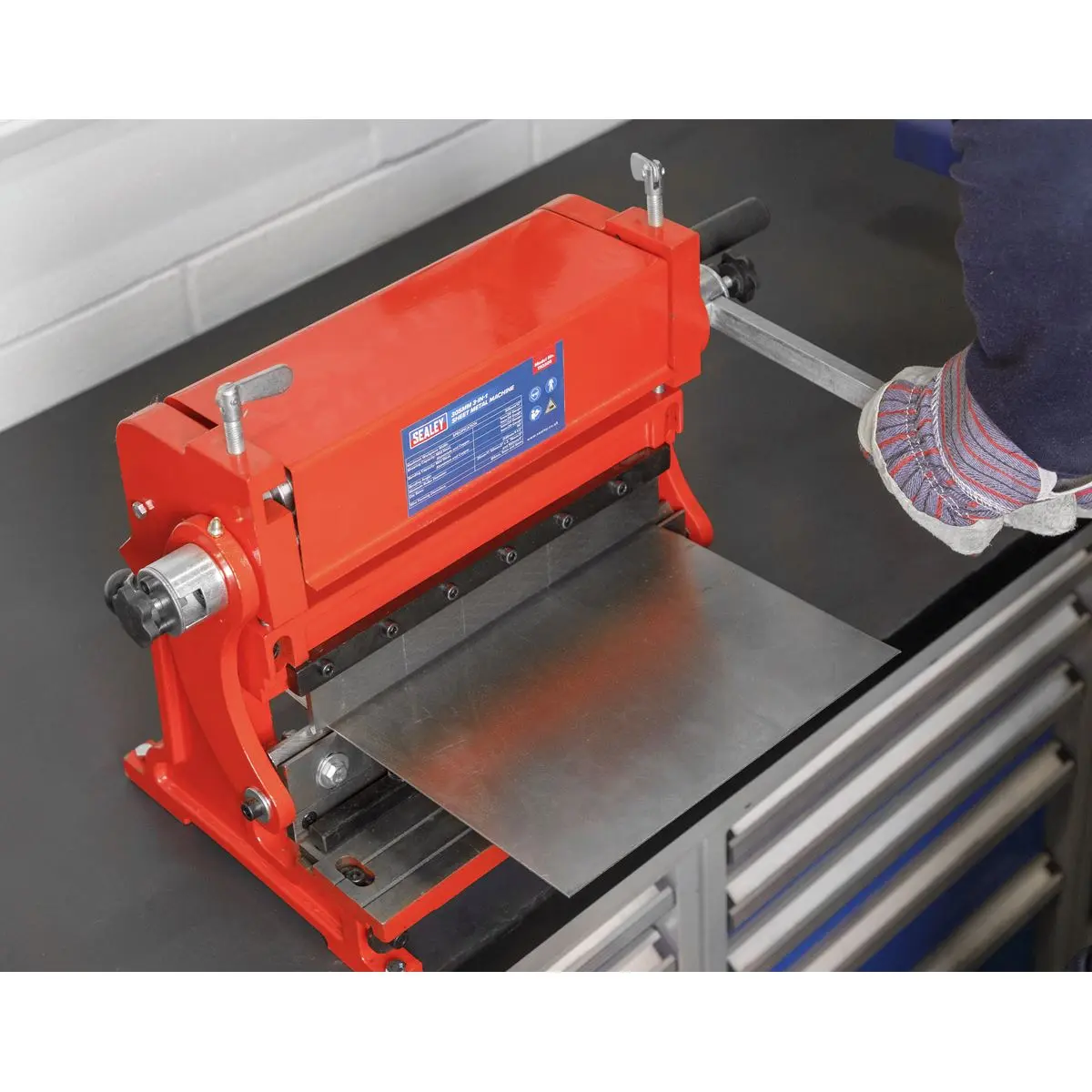

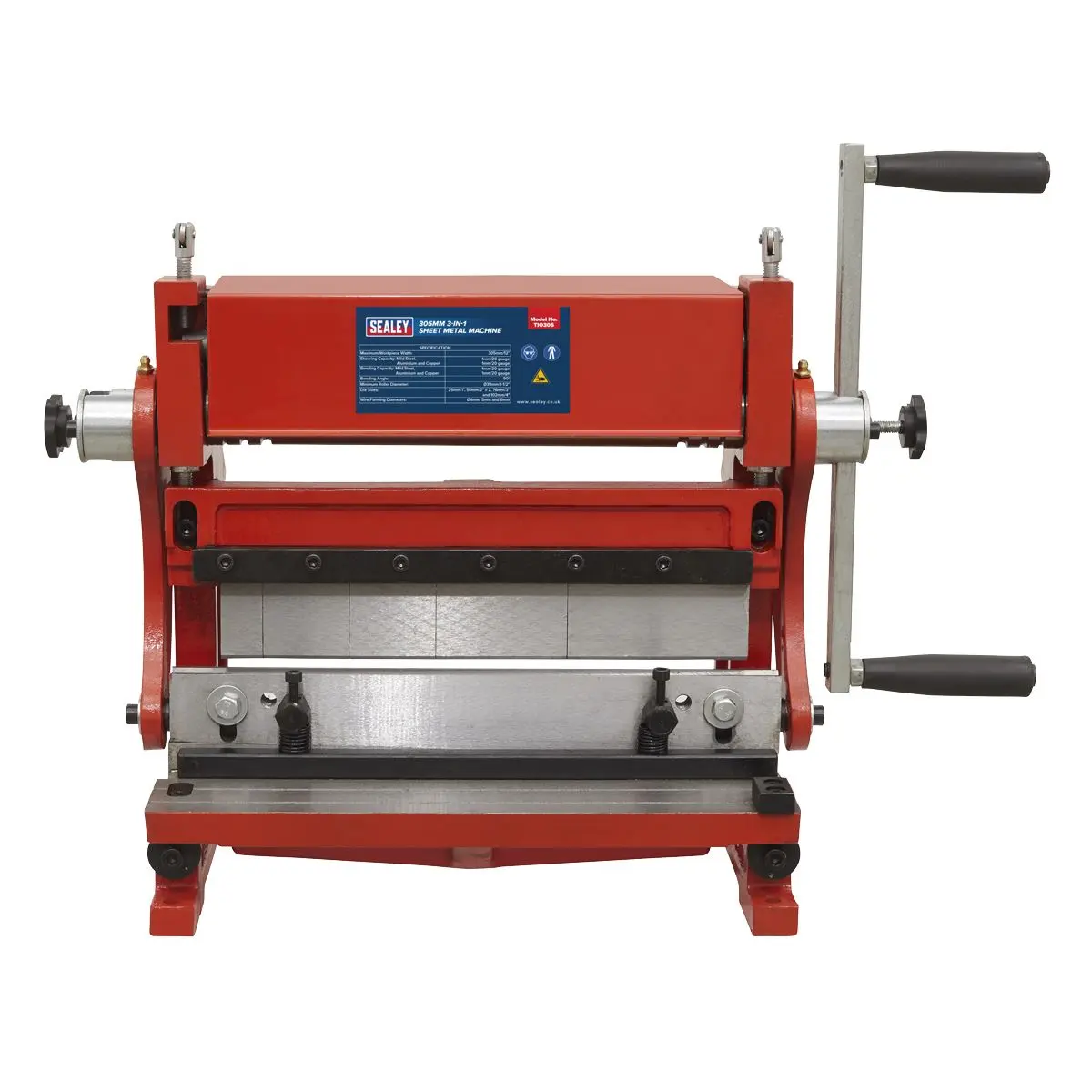

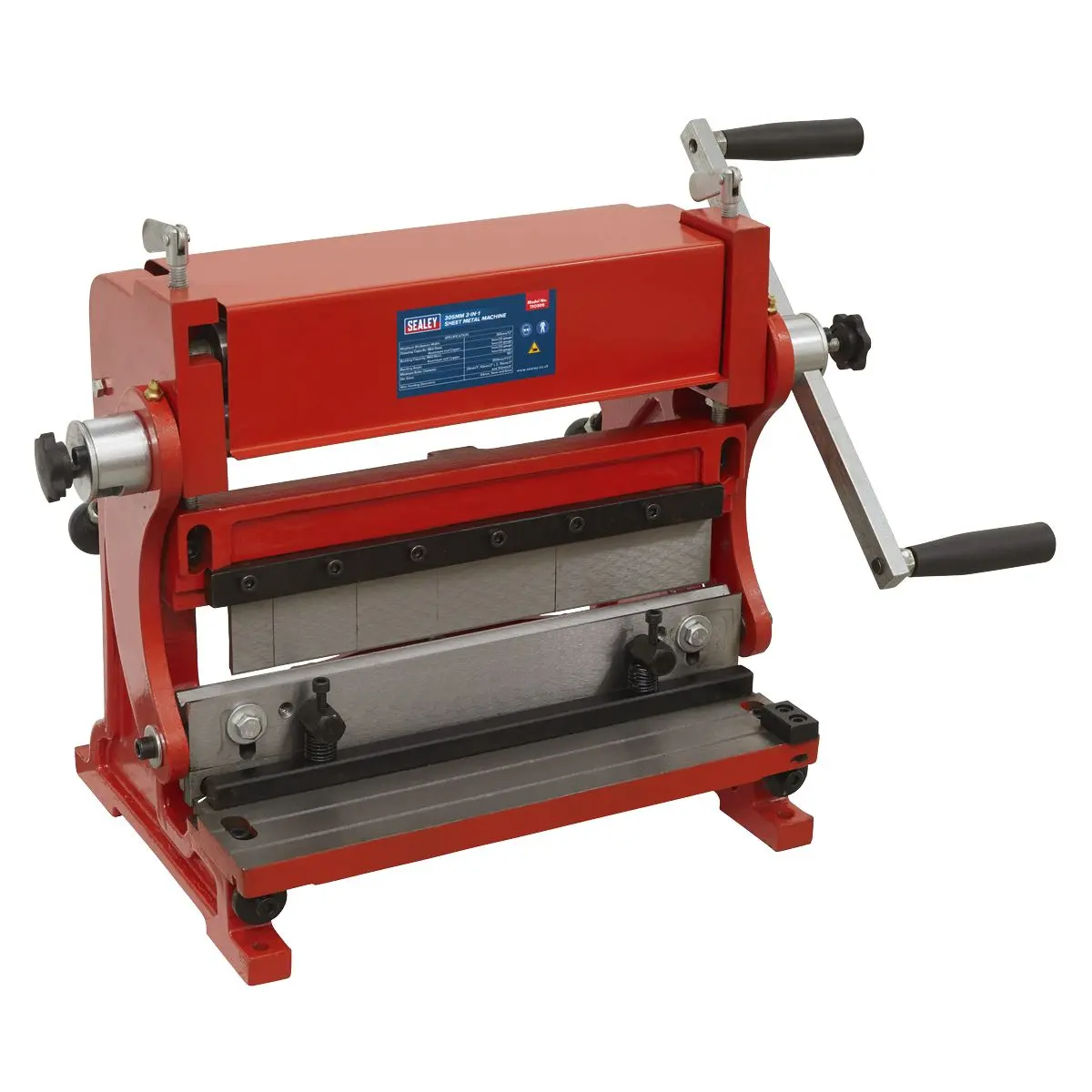

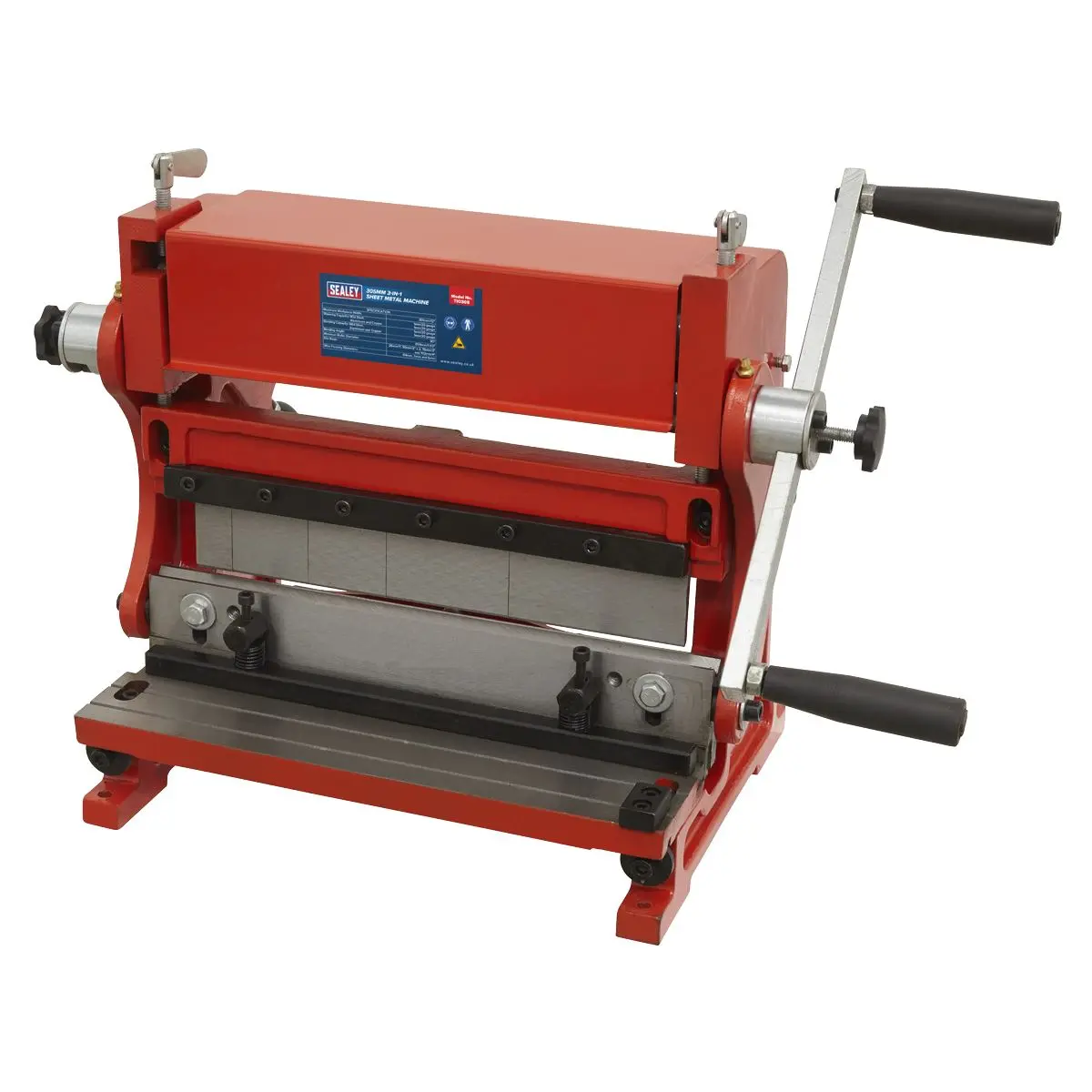

Sealey 3-in-1 Sheet Metal Machine 305mm

Sealey 3-in-1 Sheet Metal Machine 305mm

12" 3-in-1 light sheet metal working machine.

Can shear, bend and roll a variety of metals including mild steel, aluminium and copper.

The rollers have grooves with diameters of Ø2.5mm, 3mm, 4mm, 5mm, 5.5mm and 6mm for bending rods.

Adjust the distance and angle of the rollers to create the desired curvature for curves, cylinders or cones.

Shear sheets of metal up to 305mm wide.

Make pans with a maximum lip of 1” and bend (brake) sheets up to an angle of 90°.

Specification:

• Model No TIO305
• Brand: Sealey
• Nett Weight: 42kg
• Tube Rolling Diameter: Ø2.5mm, 3mm, 4mm, 5mm, 5.5mm, 6mm
• Workpiece Maximum Thickness: Mild Steel: 1mm/20 gaugeAluminium and copper: 1.2mm/18 gauge
• Workpiece Maximum Width: 305mm/12"
• Workpiece Maximum Thickness: Mild Steel: 1mm/20 gaugeAluminium and copper: 1.2mm/18 gauge
• Workpiece Maximum Width: 305mm/12"

Product Guarantee: 1 Year
Catalogue Page: Page 903

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
