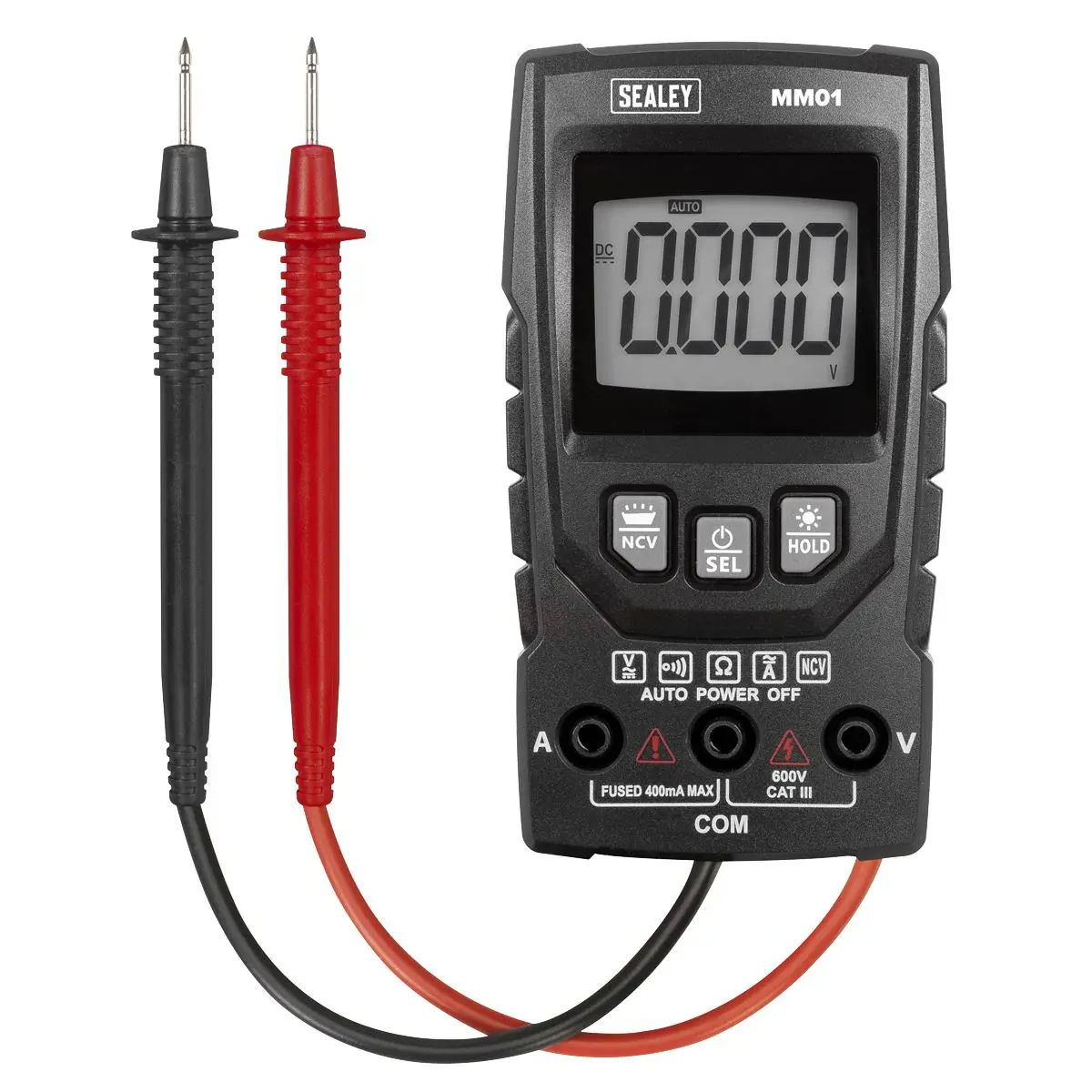

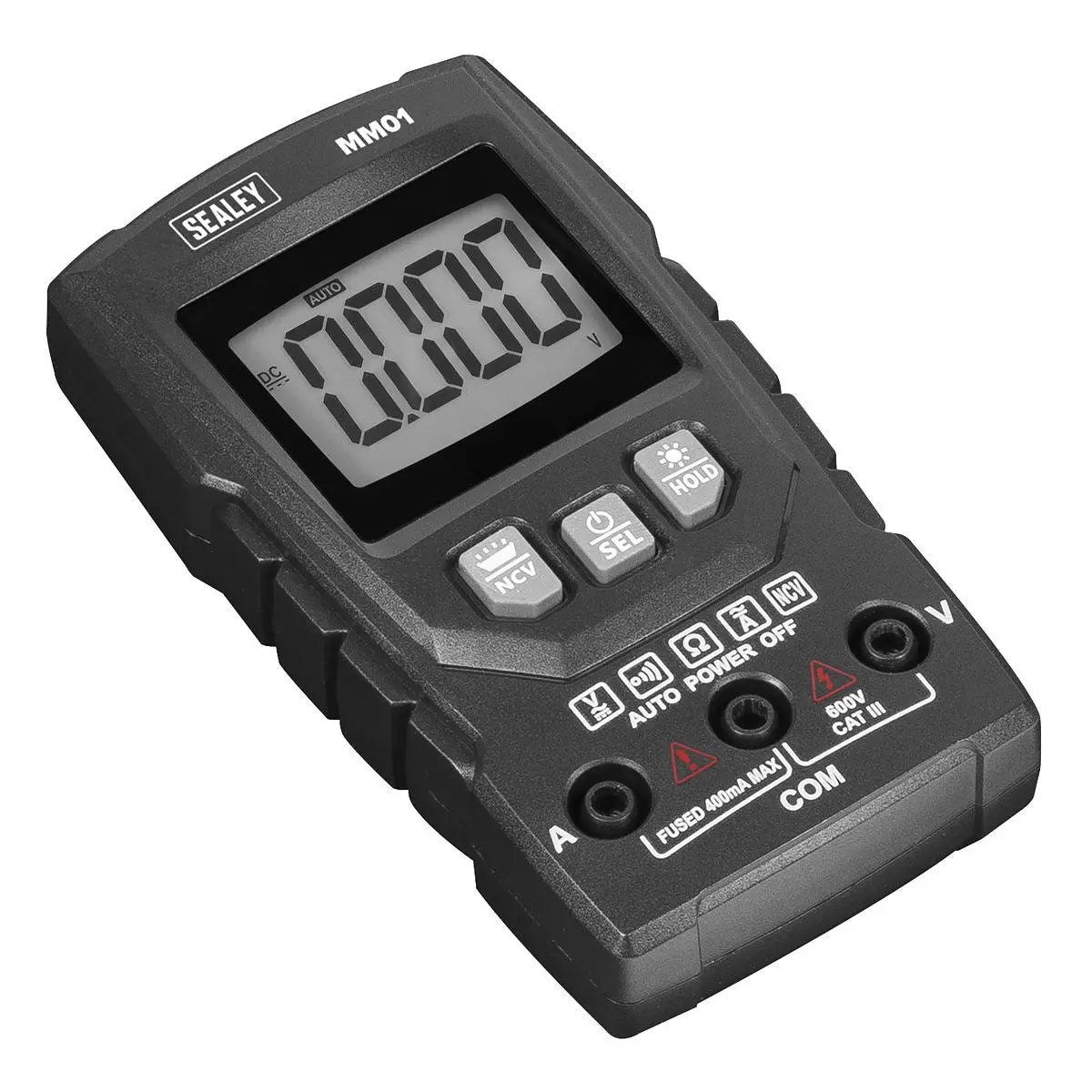

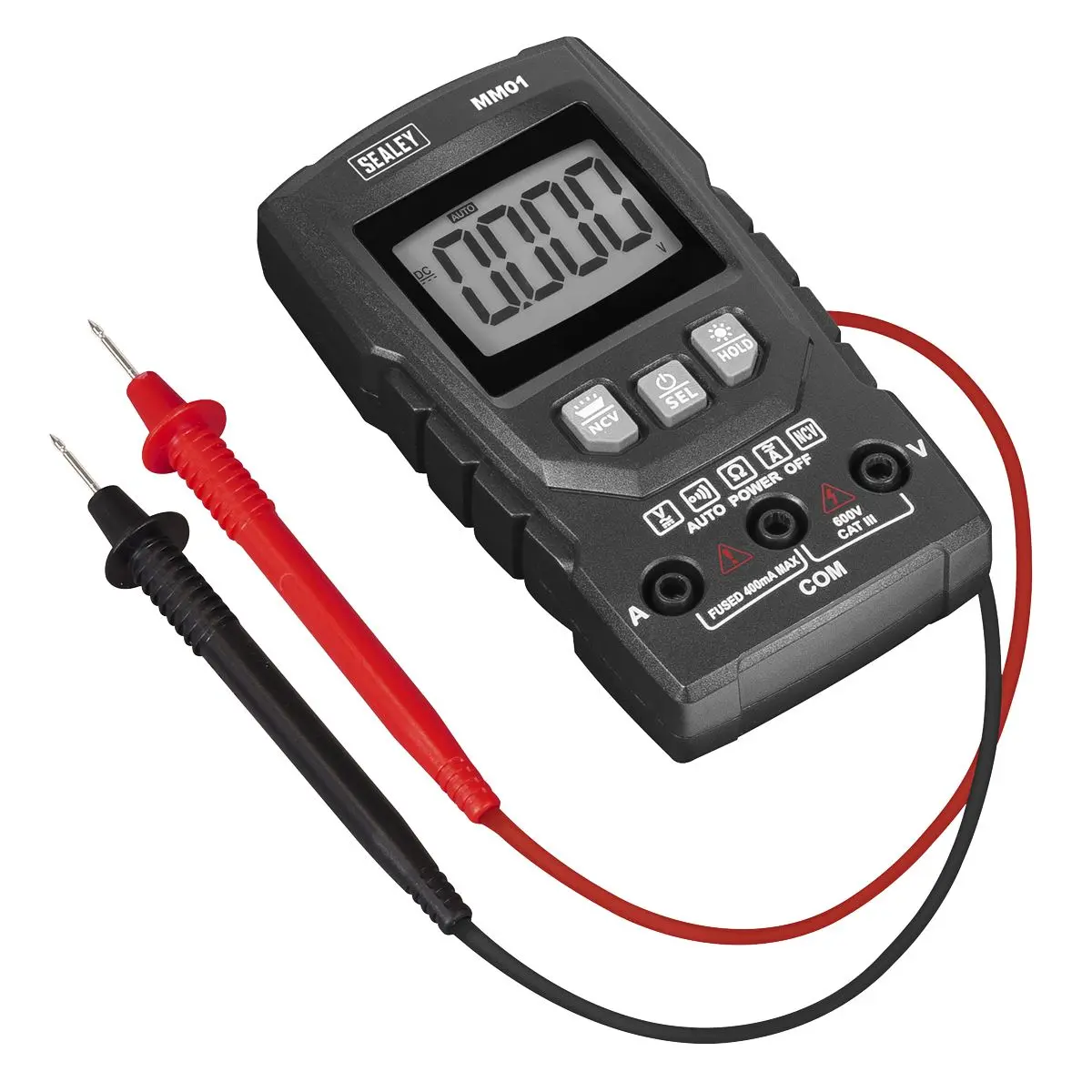

Sealey Auto-Ranging Digital Multimeter 6-Function

Sealey Auto-Ranging Digital Multimeter 6-Function

INTELLIGENT AUTO-RANGING - The multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity.

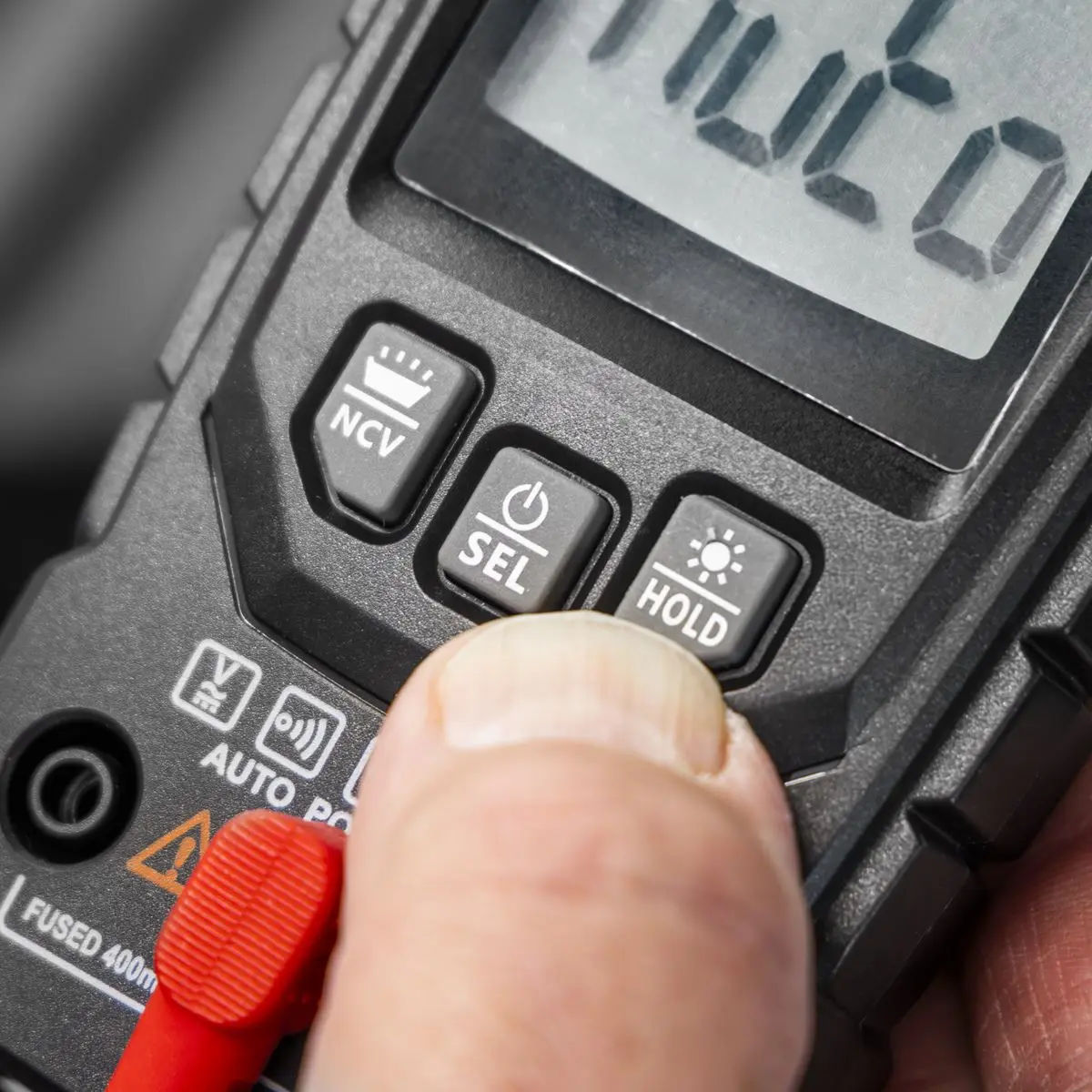

VERSATILE FEATURES - Includes, data-hold, auto-power-off function and low battery indicator.

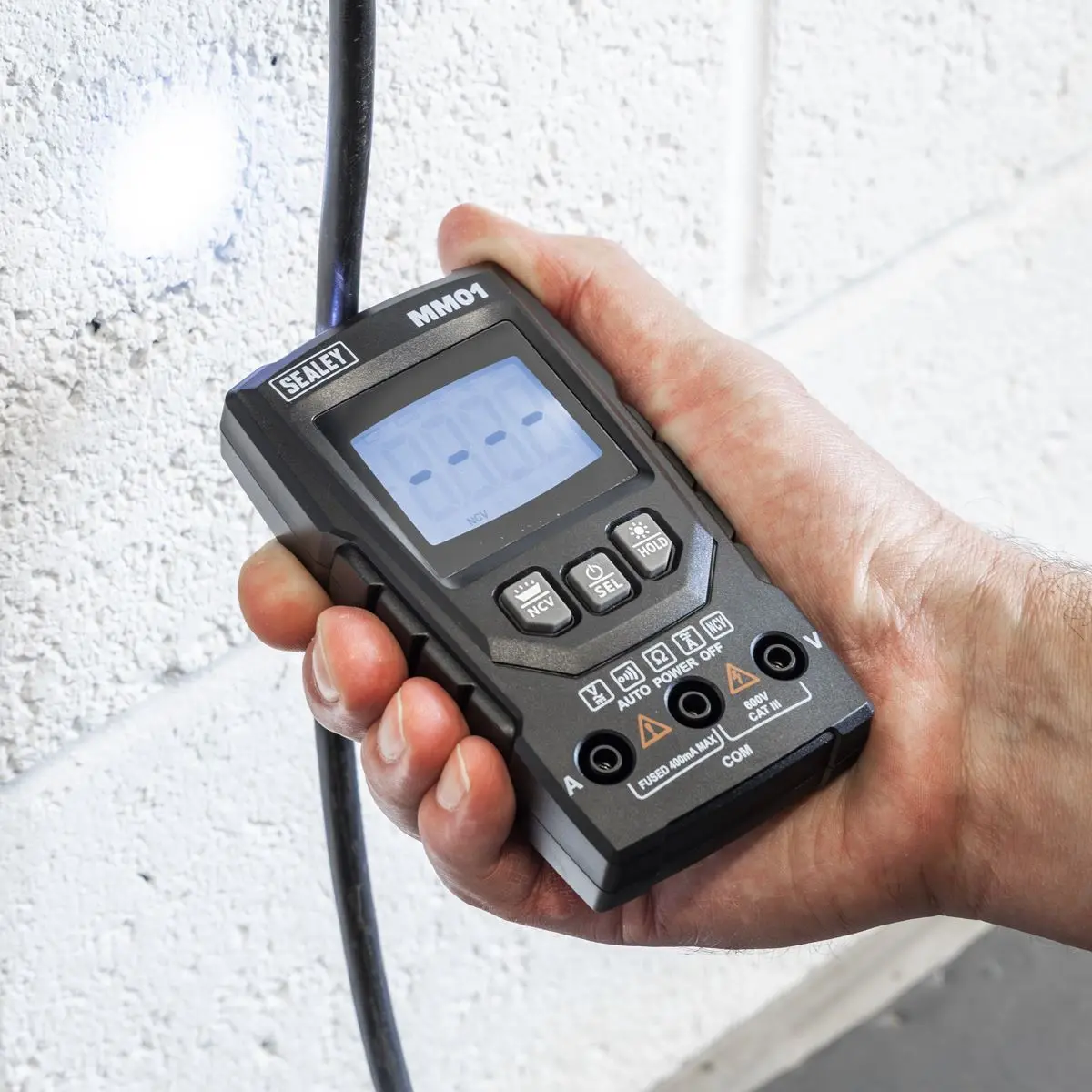

NON-CONTACT VOLTAGE DETECTION (NCVD) – Enables one-handed use.

4000 COUNT – High precision measurements.

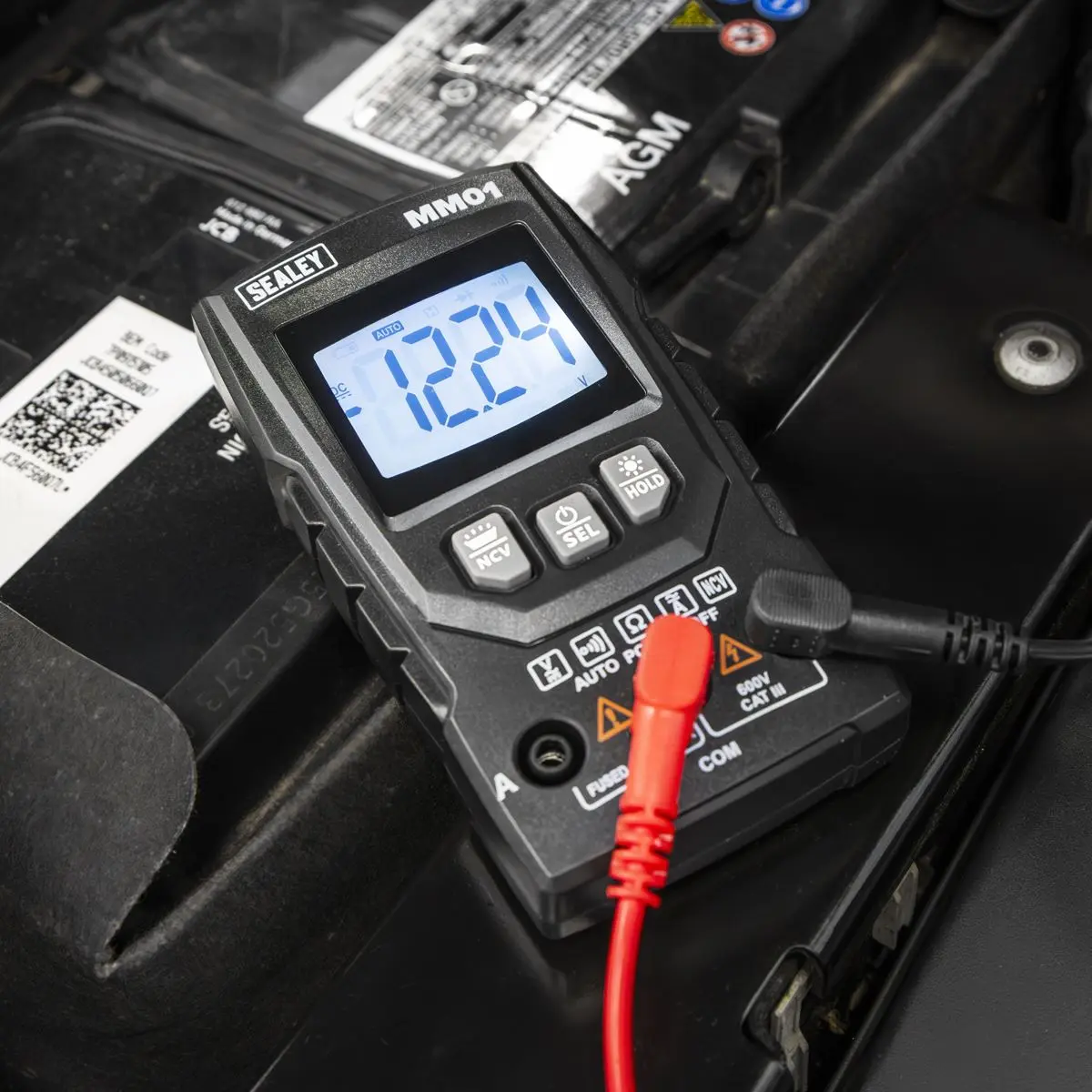

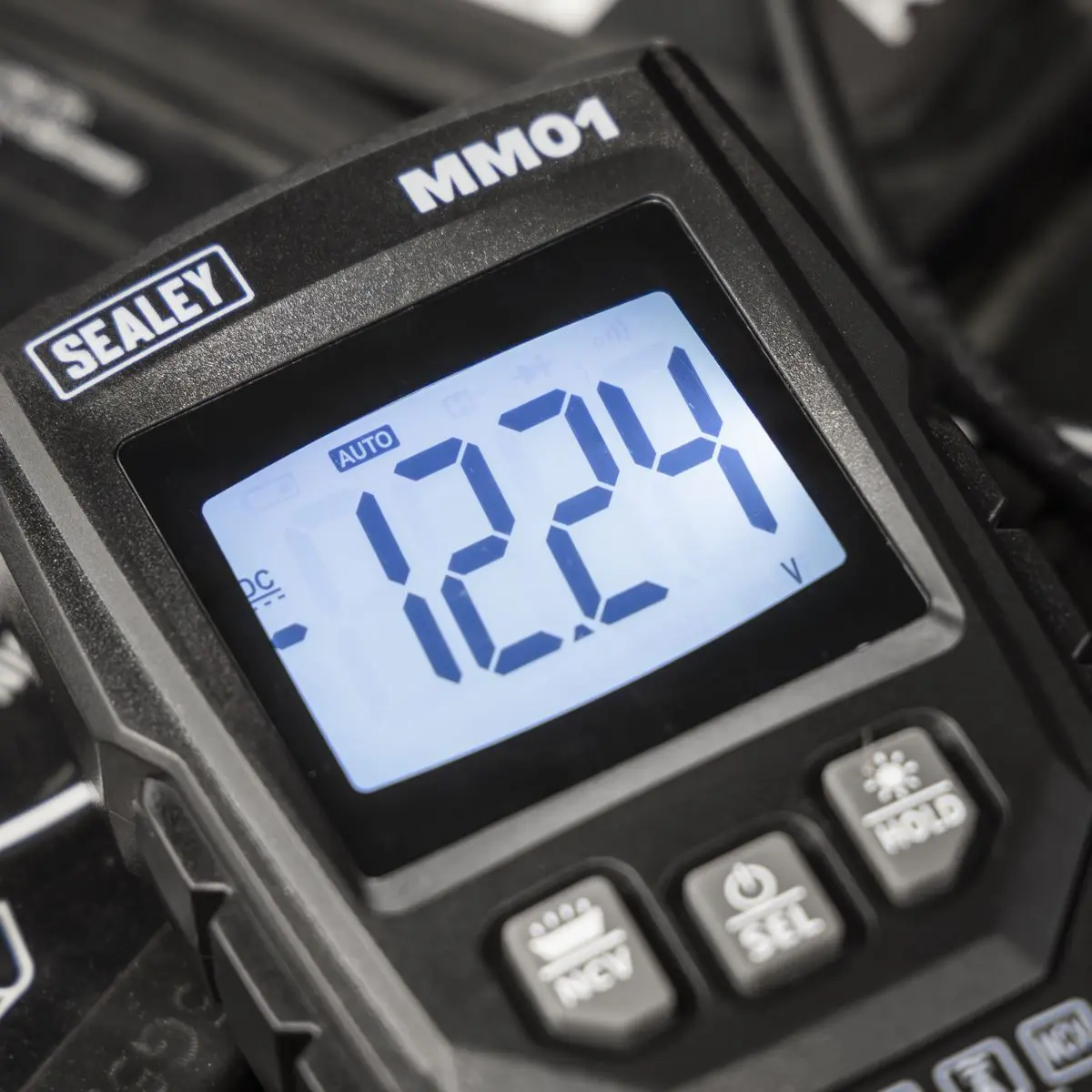

LCD DISPLAY – Clear and easy-to-read.

LED WORK LIGHT – Enhances visibility in low light conditions.

CONFIRMS TO EN 61010-2 CATIII 600V SAFETY REQUIRMENTS - For electrical equipment for measurement, control and laboratory use.

Specification:

• Model No MM01
• Brand: Sealey
• Nett Weight: 0.156kg
• DC Voltage (Accuracy): Range: 4/40/400/600V, Resolution: 0.001/0.01/0.01/1V, Accuracy: ± (1% + 3 digits/ 1% + 3 digits)
• AC Voltage (Accuracy): Range: 4/40/400/600V, Resolution: 0.001/0.01/0.01/1V, Accuracy ±(1.2% +5 digits/1.5% + 10 digits)
• DC Current (Accuracy): Range: 400mA, Resolution: 0.1mA, Accuracy: ± (1.2% reading + 3 digits)
• AC Current (Accuracy): Range: 400mA, Resolution: 0.1mA, Accuracy: ±(1.5% + 3 digits)
• Resistance (Accuracy): 4KΩ /40KΩ /400KΩ (Ohm), Resolution: 0.001/0.01/0.1 (Ohm), Accuracy: ±(1.2% + 5 digits)
• Resistance (Accuracy): Range: 4MΩ /40MΩ (Ohm), Resolution: 0.001M/0.01M (Ohm), Accuracy: ±(2% + 5 digits)
• Temperature (Accuracy): NO
• Capacitance (Accuracy): NO
• Duty Cycle: NO
• Continuity: YES
• Diode Test: NO
• Backlit/Torch: YES
• Transistor Test: NO
• Hi-Impact Rubber Case: YES
• Digits x Height: 4 x 16mm
• Low Battery Indicator: YES
• Battery: 2 x 1.5V AAA (supplied)
• Information: Data-Hold, Auto-Power-Off & Live Test
• Size ( L x W x D): 142 x 92 x 38mm
• Nett Weight: 0.156kg
• Conformity: EN 61010-2

Product Guarantee: 1 Year
Catalogue Page: Page 410

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
