Sealey Air Compressor 24L Direct Drive 1.5hp

Sealey 24L Direct Drive Air Compressor 1.5hp

Air Displacement: 6cfm(170L/min).

Maximum Free Air Delivery: 4.2cfm(119L/min).

Maximum Pressure: 116psi(8bar).

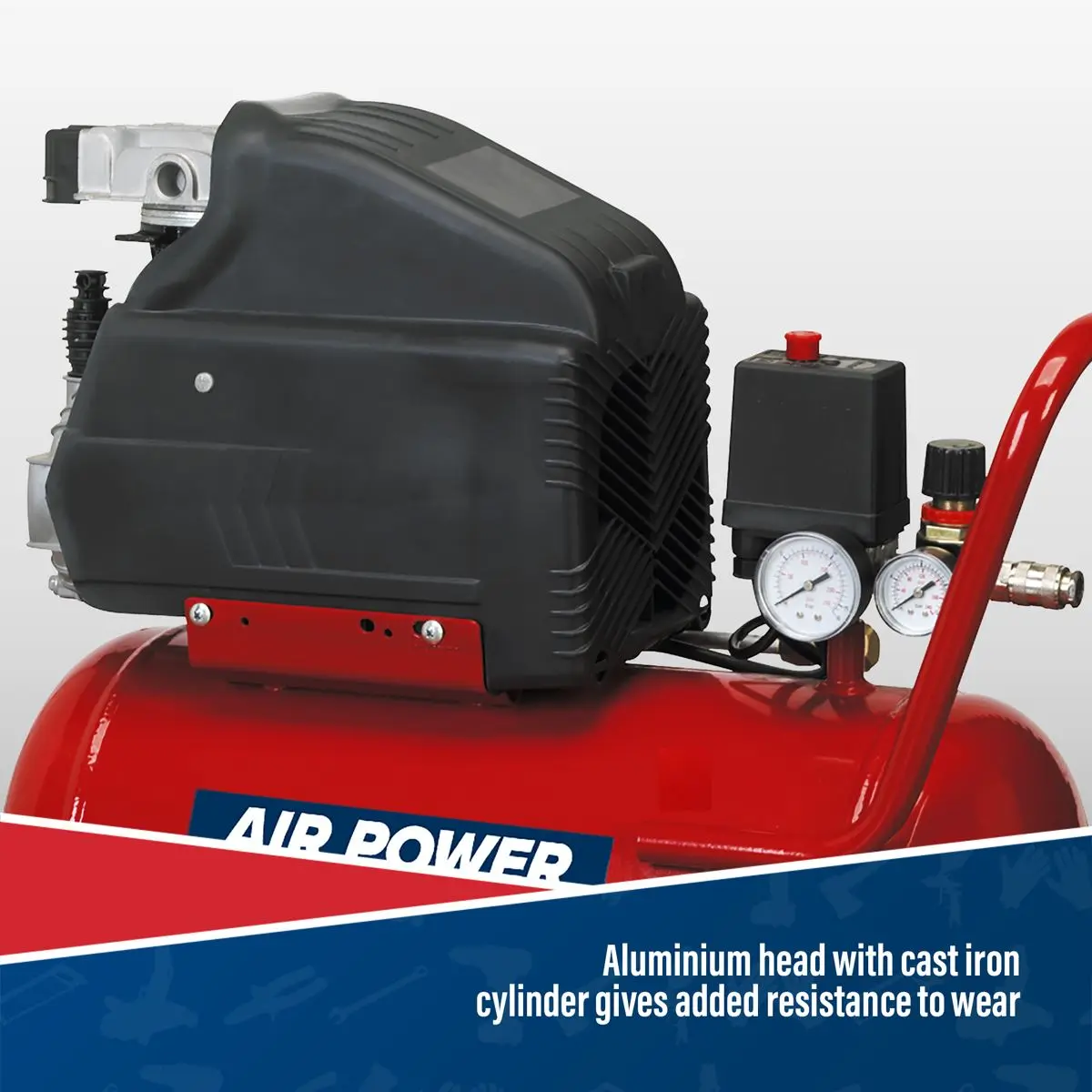

Aluminium head with cast iron cylinder gives added resistance to wear.

Suitable for general-purpose workshop applications.

Pump head is directly coupled to a heavy-duty induction motor for reliable and quiet operation.

Welded tank complies with latest European standards.

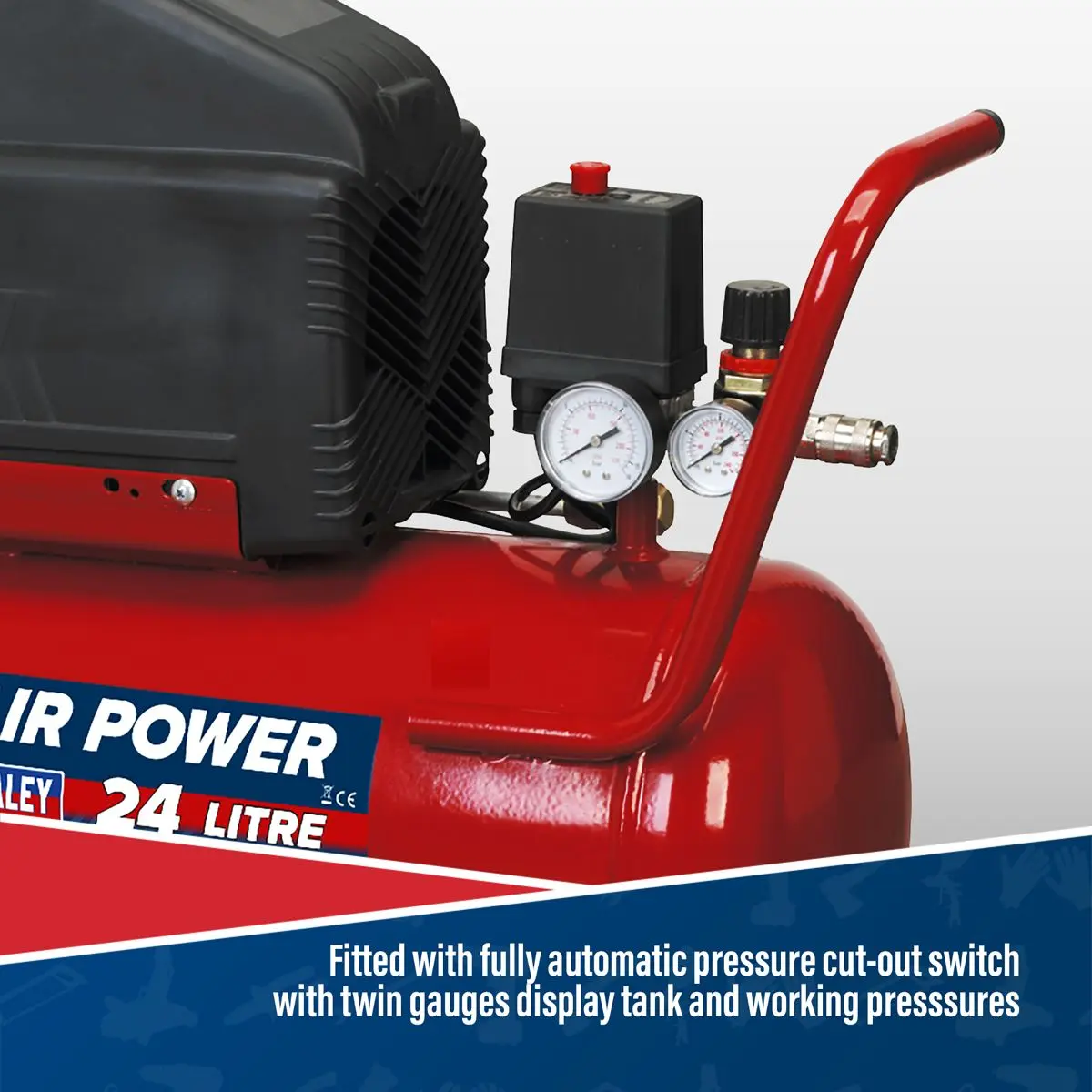

Fitted with fully automatic pressure cut-out switch with twin gauges displaying tank and working pressures.

Fitted with 3-pin plug.

Specification:

• Model No SA2415
• Air Displacement cfm(L/min): 6(170)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 4.2(119)
• Maximum Pressure: 116psi(8bar)
• Minimum Rated Supply: 13A
• Motor Output: 1.5hp
• Nett Weight: 21kg
• Noise Level: 95dB(A)
• Oil Capacity: 0.22L
• Outlet: Quick Release Coupling
• Phase: 1ph
• Receiver Capacity: 24L
• Size (W x D x H): 580 x 280 x 550mm
• Supply: 230V/13A

Product Guarantee: 1 Year
Catalogue Page: Page 774

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
