Sealey Air Compressor 50L Direct Drive 2hp

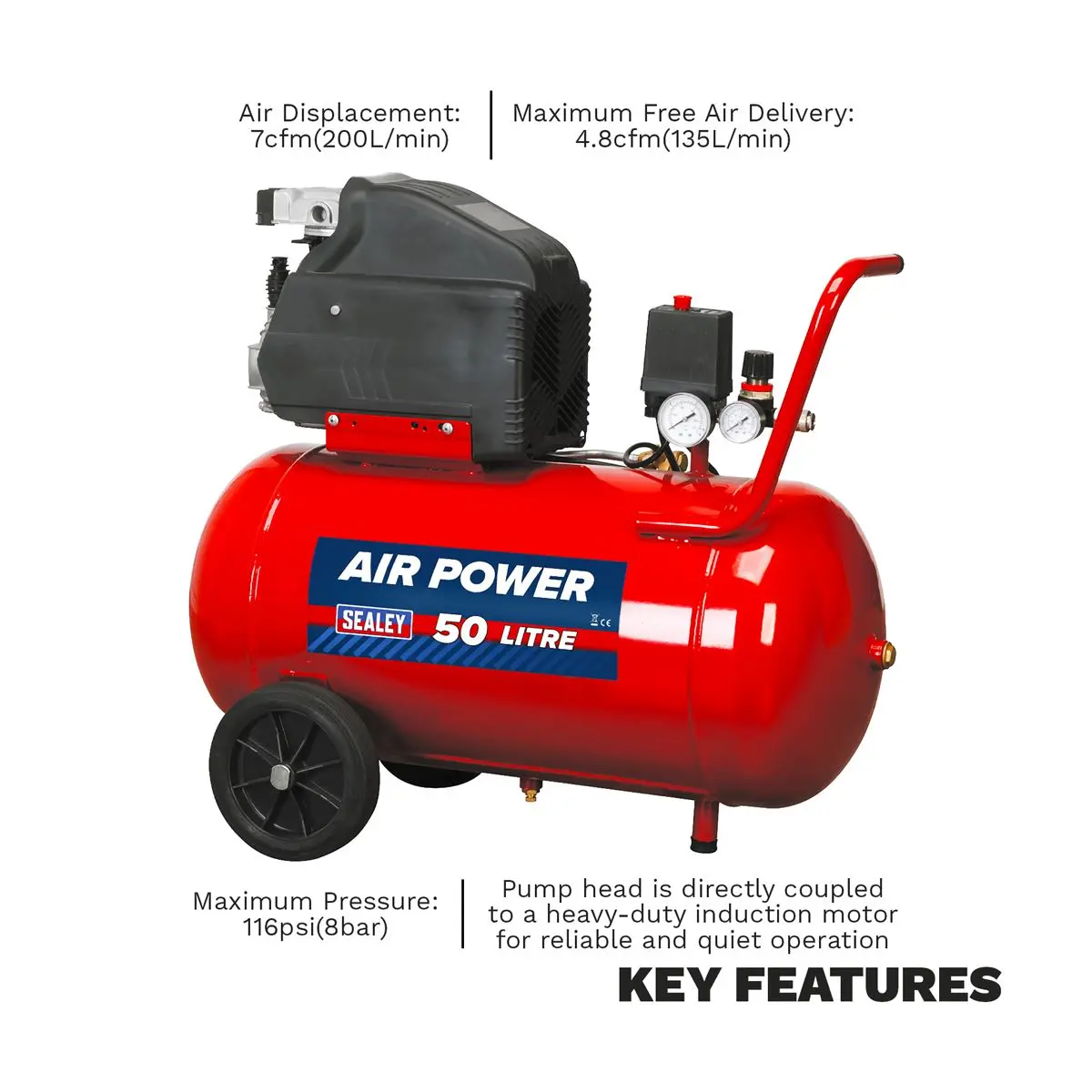

Sealey 50L Direct Drive Air Compressor 2hp

Air Displacement: 7cfm(200L/min).

Maximum Free Air Delivery: 4.8cfm(135L/min).

Maximum Pressure: 116psi(8bar).

Aluminium head with cast iron cylinder gives added resistance to wear.

Suitable for general-purpose workshop applications.

Pump head is directly coupled to a heavy-duty induction motor for reliable and quiet operation.

Welded tank complies with latest European standards.

Fitted with fully automatic pressure cut-out switch with twin gauges displaying tank and working pressures.

Fitted with 3-pin plug.

Specification:

• Model No SA5020
• Air Displacement cfm(L/min): 7(200)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 4.8(135)
• Maximum Pressure: 116psi(8bar)
• Minimum Rated Supply: 13A
• Motor Output: 2hp
• Nett Weight: 30kg
• Oil Capacity: 0.22L
• Outlet: Quick Release Coupling
• Phase: 1ph
• Receiver Capacity: 50L
• Size (W x D x H): 740 x 400 x 590mm
• Supply: 230V/13A

Product Guarantee: 1 Year
Catalogue Page: Page 774

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
