Sealey Dial Bore Gauge 50-160mm

Sealey Dial Bore Gauge 50-160mm

Precision mechanism with Ø55mm dial and locking rotating bezel, offering an accurate method of measuring a bore or detecting a taper or ovality.

Measuring Range: 50-160mm.

Will indicate the deviation from set size by up to 3mm with an accuracy of 0.01mm.

Probe body, dial indicator, anvil and spacer rings are also included.

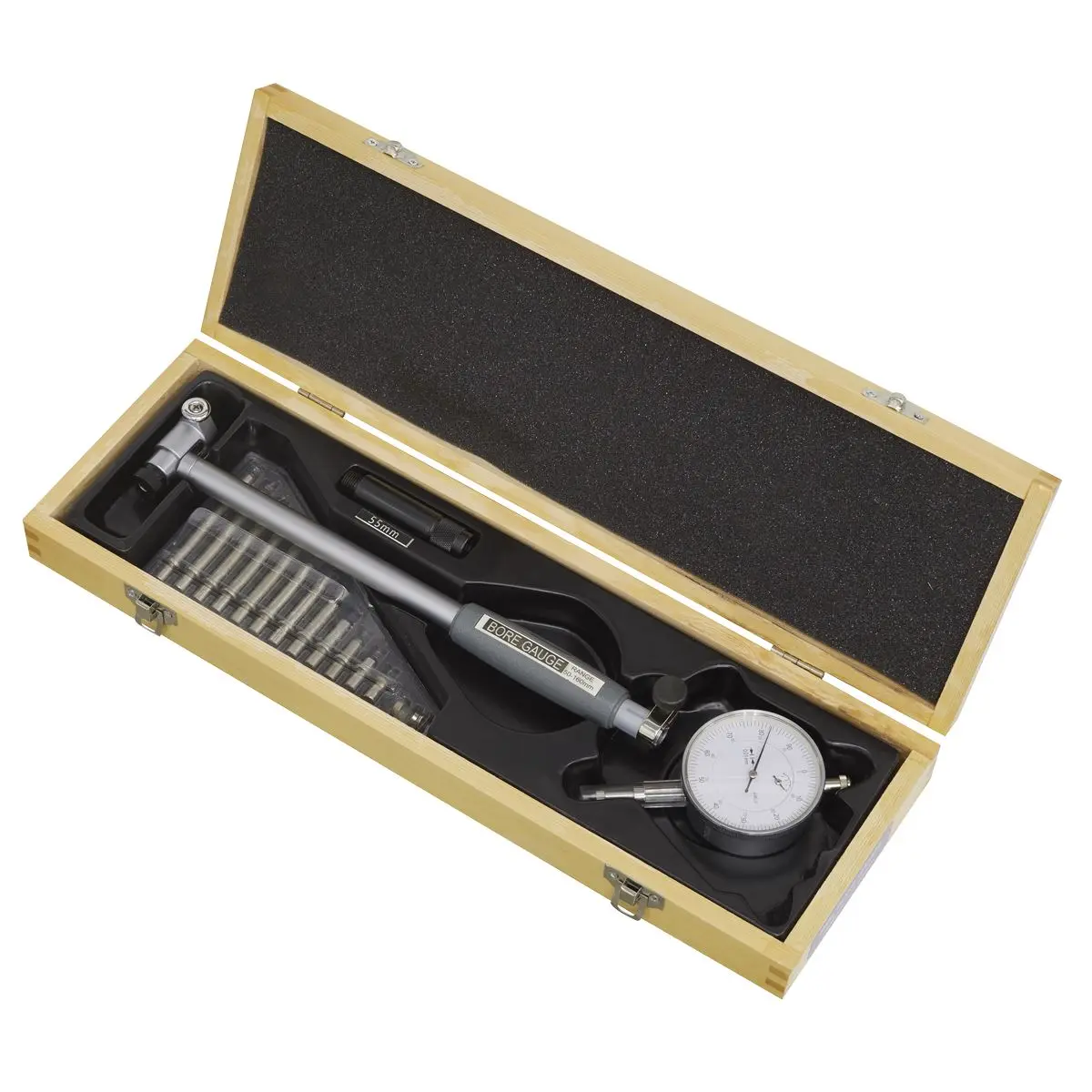

Supplied in wooden storage case.

Specification:

• Model No DBG5010
• Brand: Sealey
• Dial Diameter: 55mm
• Maximum Deviation Measurement with Stem: 1mm
• Maximum Deviation Measurement, Gauge: 3mm
• Nett Weight: 1.12kg
• Range: 50-160mm

Product Guarantee: 1 Year
Catalogue Page: Page 375

Downloadable Files:

• Instructions: View Here
