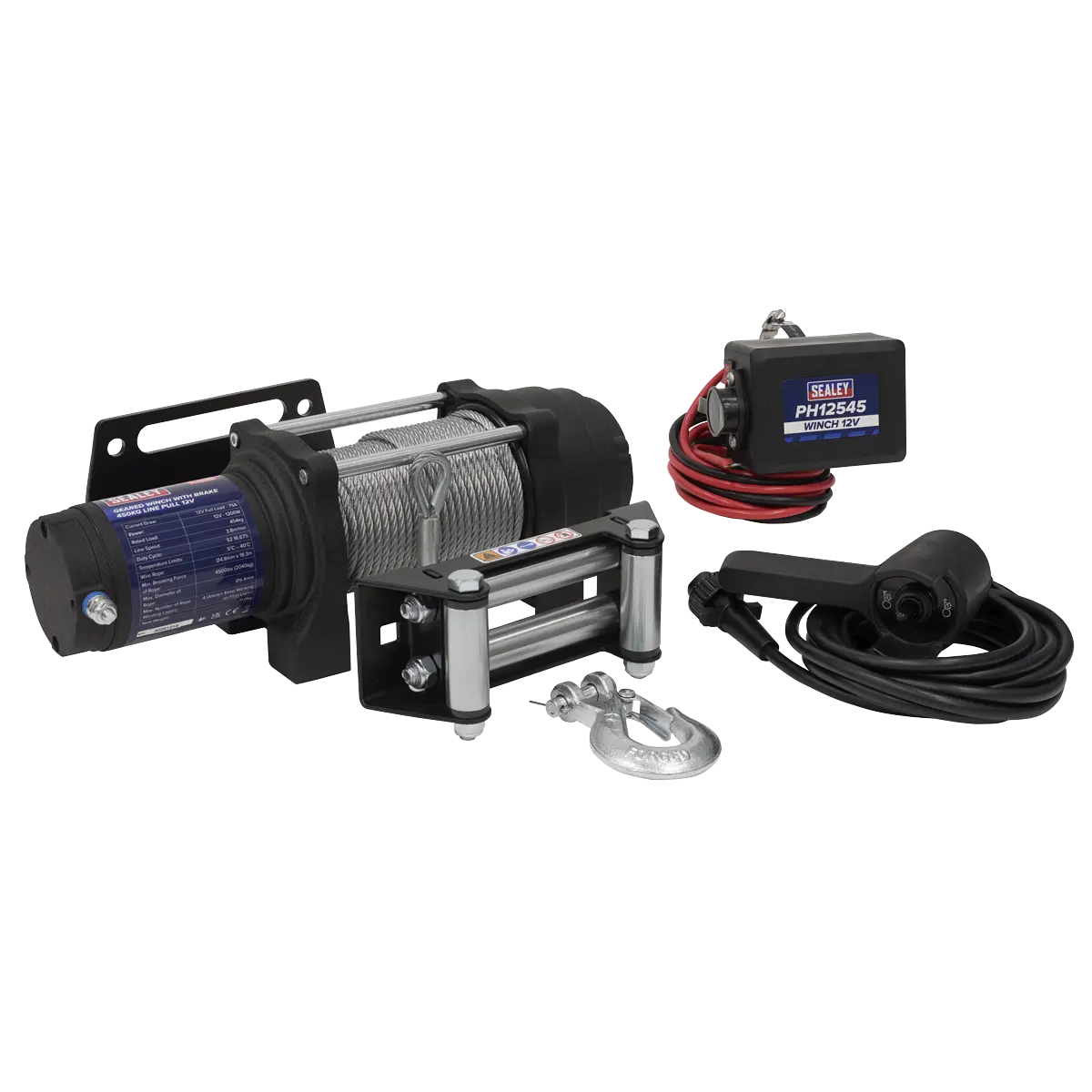

Sealey Geared Winch with Brake 450kg Line Pull 12V
HomeStore

Sealey Geared Winch with Brake 450kg Line Pull 12V

Sealey Geared Winch with Brake 450kg Line Pull 12V

Sealey Geared Winch with Brake 450kg Line Pull 12V

REINFORCED - Steel drum is reinforced to make the product strong and durable.

WEATHERPROOF - Rated IP68 this winch will withstand any weather conditions.

3-STAGE PLANETARY GEARS - Increased pull generated by the gear train.

2-BRAKE SYSTEM - Mechanical cone brake and a permanent motor dynamic brake work together to keep the load stable and protect the user.

WIRE LENGTH - 18m.

MOTOR - Permanent magnet motor 12V - 1.6HP/1.2KW.

MAXIMUM WEIGHT - 450kg(1000lbs).

Specification:

  • Model No PH12545
  • Brand: Sealey
  • Current Draw: 12V Full Load - 75A
  • Gear Ratio: 140:1
  • Line Pull*: 454kg 1000lbs
  • Line Speed*: Full Load - 3.8m/min
  • Motor Power: 12V - 1200W
  • Nett Weight: 11kg
  • Rated Capacity: 454kg 1000lbs
  • Specification:
  • Min. Breaking Rope Force: 4500lbs (2040kg)
  • Max. Rope Diameter: Ø5.4mm
  • Max. No. of Rope Winding Layers: 4 (Always Keep Working on First Layer)
  • Wire Rope Diameter: Ø4.8mm
  • Wire Rope Length: 18.3m
Product Guarantee: 1 Year
Catalogue Page: Page

Downloadable Files:
  • Instructions: View Here
  • Parts Diagram: View Here


$189.77

Original: $542.19

-65%
Sealey Geared Winch with Brake 450kg Line Pull 12V—

$542.19

$189.77

More Images

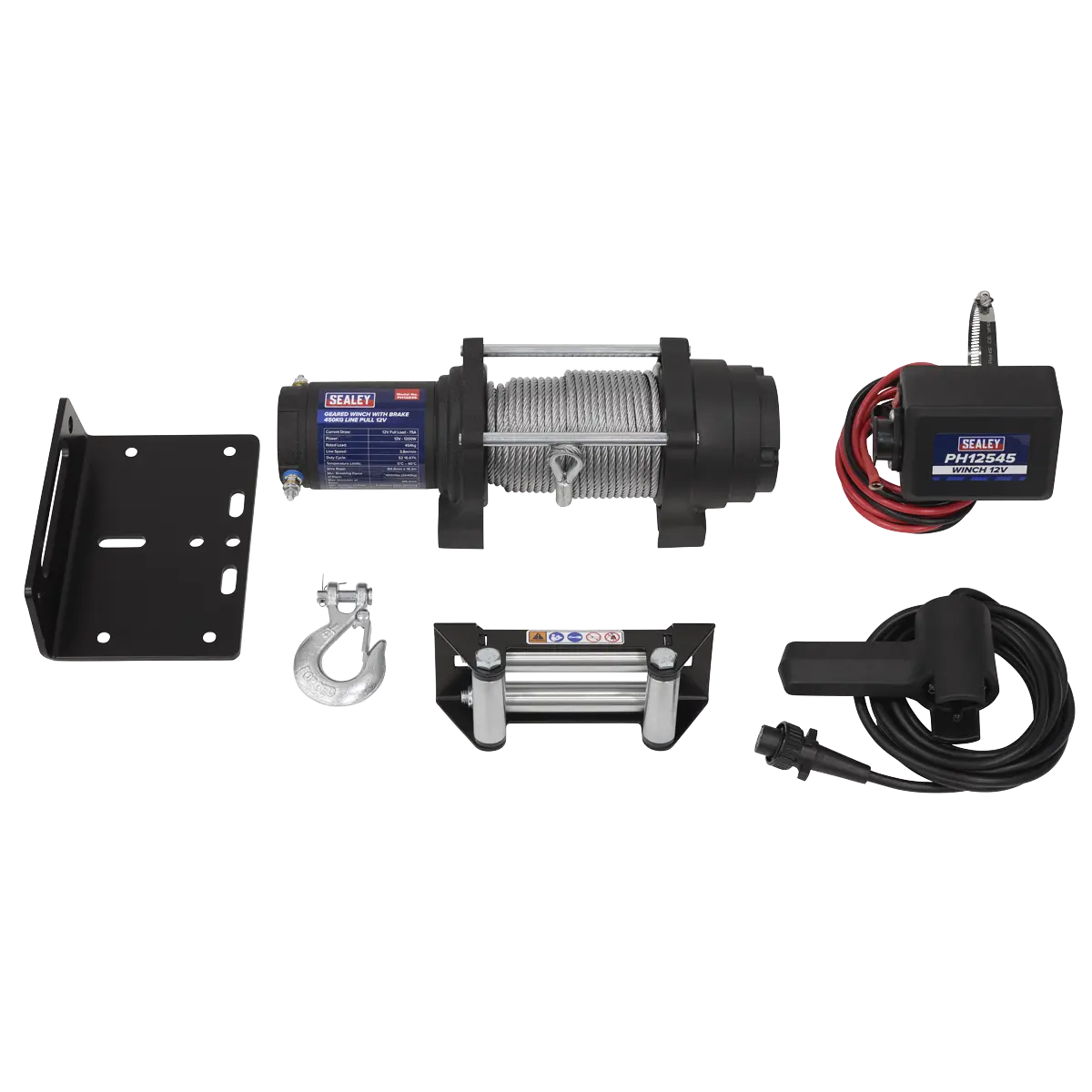

Sealey Geared Winch with Brake 450kg Line Pull 12V - Image 2

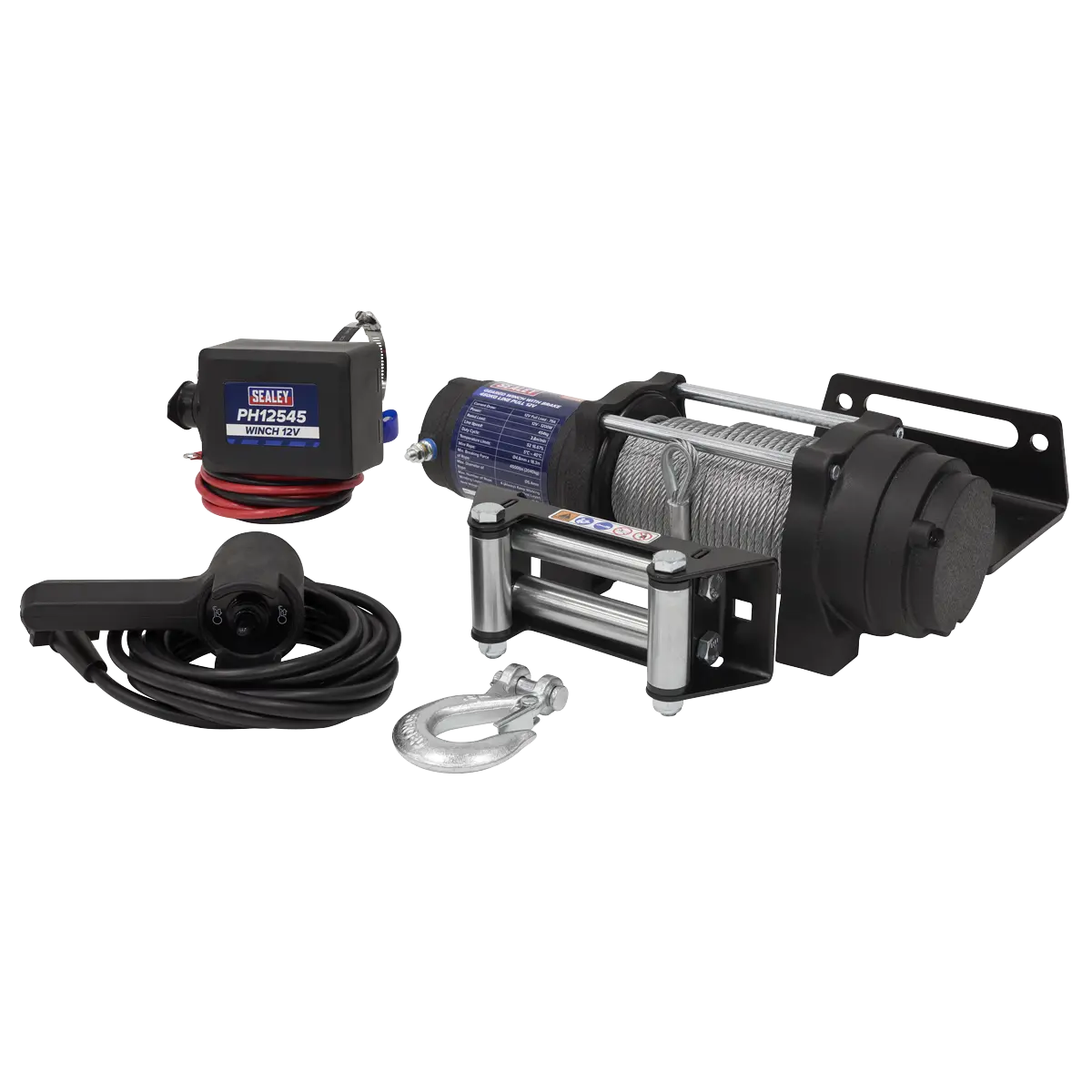

Sealey Geared Winch with Brake 450kg Line Pull 12V - Image 3

Sealey Geared Winch with Brake 450kg Line Pull 12V

Sealey Geared Winch with Brake 450kg Line Pull 12V

REINFORCED - Steel drum is reinforced to make the product strong and durable.

WEATHERPROOF - Rated IP68 this winch will withstand any weather conditions.

3-STAGE PLANETARY GEARS - Increased pull generated by the gear train.

2-BRAKE SYSTEM - Mechanical cone brake and a permanent motor dynamic brake work together to keep the load stable and protect the user.

WIRE LENGTH - 18m.

MOTOR - Permanent magnet motor 12V - 1.6HP/1.2KW.

MAXIMUM WEIGHT - 450kg(1000lbs).

Specification:

  • Model No PH12545
  • Brand: Sealey
  • Current Draw: 12V Full Load - 75A
  • Gear Ratio: 140:1
  • Line Pull*: 454kg 1000lbs
  • Line Speed*: Full Load - 3.8m/min
  • Motor Power: 12V - 1200W
  • Nett Weight: 11kg
  • Rated Capacity: 454kg 1000lbs
  • Specification:
  • Min. Breaking Rope Force: 4500lbs (2040kg)
  • Max. Rope Diameter: Ø5.4mm
  • Max. No. of Rope Winding Layers: 4 (Always Keep Working on First Layer)
  • Wire Rope Diameter: Ø4.8mm
  • Wire Rope Length: 18.3m
Product Guarantee: 1 Year
Catalogue Page: Page

Downloadable Files:
  • Instructions: View Here
  • Parts Diagram: View Here


Product Information

Shipping & Returns

Description

Sealey Geared Winch with Brake 450kg Line Pull 12V

REINFORCED - Steel drum is reinforced to make the product strong and durable.

WEATHERPROOF - Rated IP68 this winch will withstand any weather conditions.

3-STAGE PLANETARY GEARS - Increased pull generated by the gear train.

2-BRAKE SYSTEM - Mechanical cone brake and a permanent motor dynamic brake work together to keep the load stable and protect the user.

WIRE LENGTH - 18m.

MOTOR - Permanent magnet motor 12V - 1.6HP/1.2KW.

MAXIMUM WEIGHT - 450kg(1000lbs).

Specification:

  • Model No PH12545
  • Brand: Sealey
  • Current Draw: 12V Full Load - 75A
  • Gear Ratio: 140:1
  • Line Pull*: 454kg 1000lbs
  • Line Speed*: Full Load - 3.8m/min
  • Motor Power: 12V - 1200W
  • Nett Weight: 11kg
  • Rated Capacity: 454kg 1000lbs
  • Specification:
  • Min. Breaking Rope Force: 4500lbs (2040kg)
  • Max. Rope Diameter: Ø5.4mm
  • Max. No. of Rope Winding Layers: 4 (Always Keep Working on First Layer)
  • Wire Rope Diameter: Ø4.8mm
  • Wire Rope Length: 18.3m
Product Guarantee: 1 Year
Catalogue Page: Page

Downloadable Files:
  • Instructions: View Here
  • Parts Diagram: View Here
