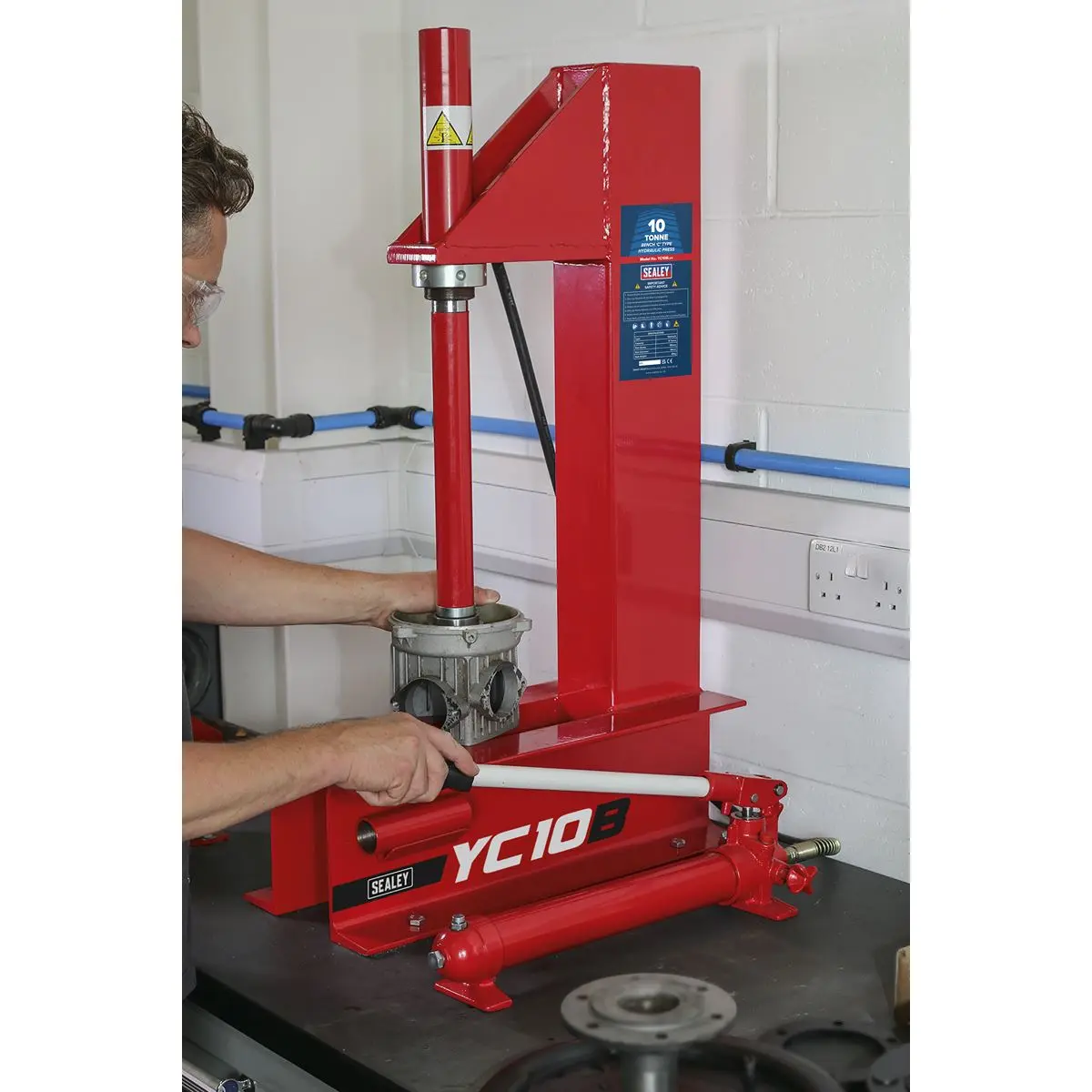

Sealey Hydraulic Bench 'C' Type Press 10 Tonne
Sealey Hydraulic Press 10 Tonne Bench 'C' Type
HEAVY-DUTY FRAME - Made from high quality steel with a powder coated paint finish to help corrosion resistance.
EASY-ACCESS - The C-frame design provides easy-access to die from three sides, as well as permitting loading and unloading of wide and irregular workpieces.
MULTIPURPOSE HYDRAULIC SYSTEM - Detachable pump and ram allowing hydraulics to be used for other purposes when press is not in use.

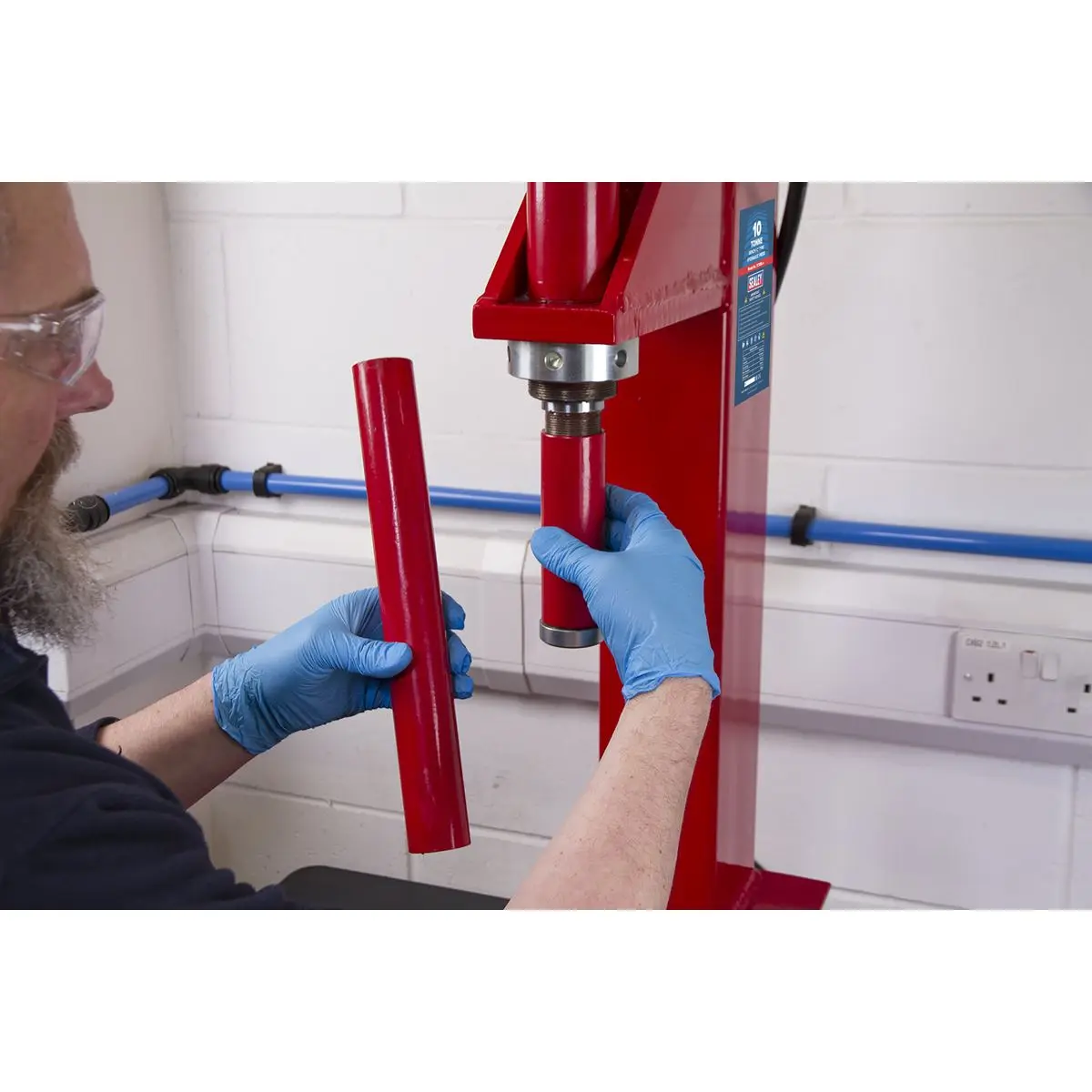

TABLE ACCESSORIES - Includes flat pressing plates and extension tubes.
Supplied without gauge.
Specification:
- Model No YC10B
- Bench or Floor Mounting: Bench
- Brand: Sealey
- Capacity: 10 Tonne
- Gauge Included: No
- Lateral Ram Travel: 0
- Maximum Height - Ram to Table: 450mm
- Minimum Height - Ram to Table: 150mm
- Nett Weight: 60kg
- Optional Accessories: n/a
- Overall Height: 960mm
- Ram Diameter: Ø40mm
- Ram Stroke: 130mm
- Table Aperture: 100mm
- Type: Hydraulic
- Working Table Depth: 240mm
- Working Table Depth: 230mm
- Working Table Width: 406mm
Catalogue Page: Page 896
Downloadable Files:
- Instructions: View Here
- Material Safety Data Sheet: View Here
- Parts Diagram: View Here
