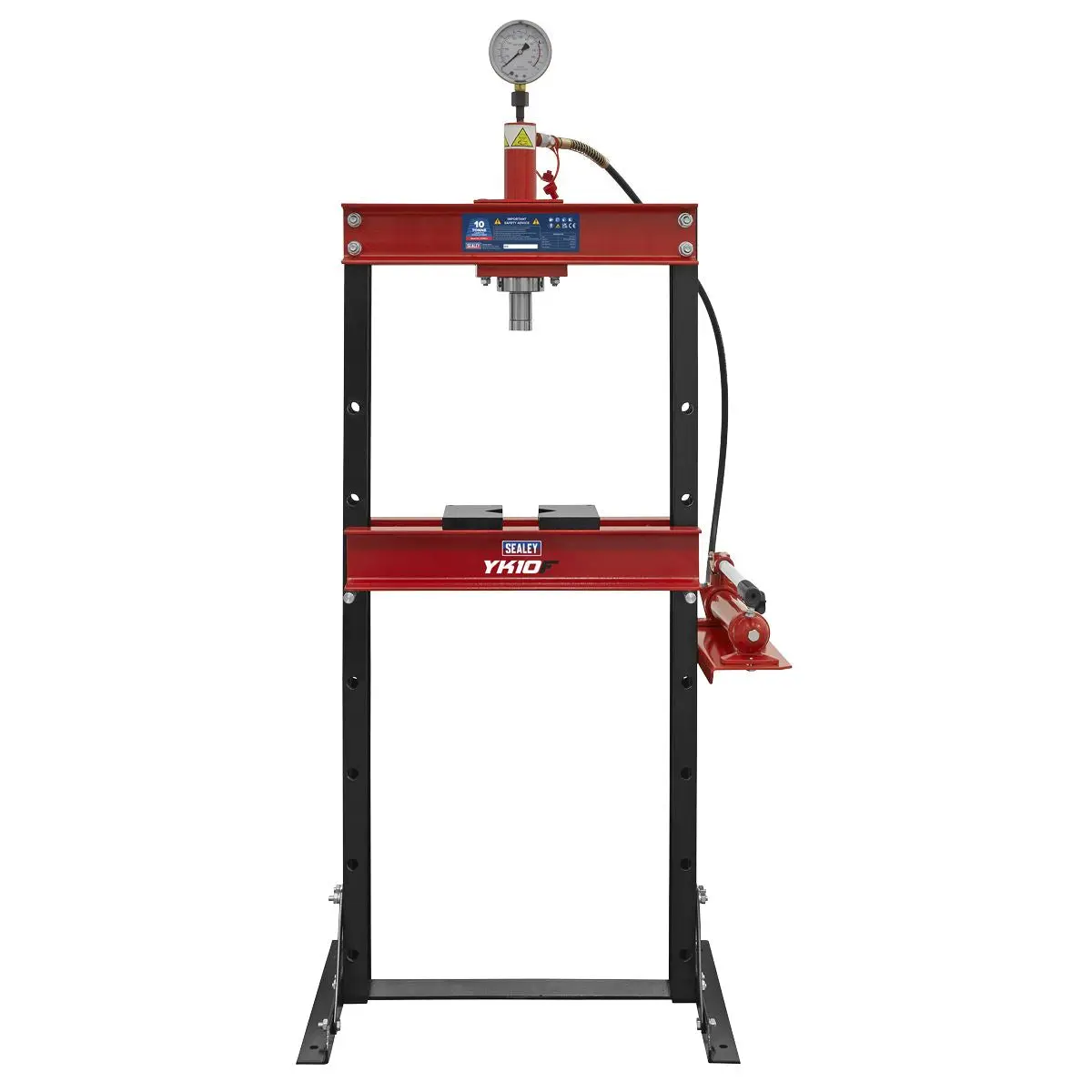

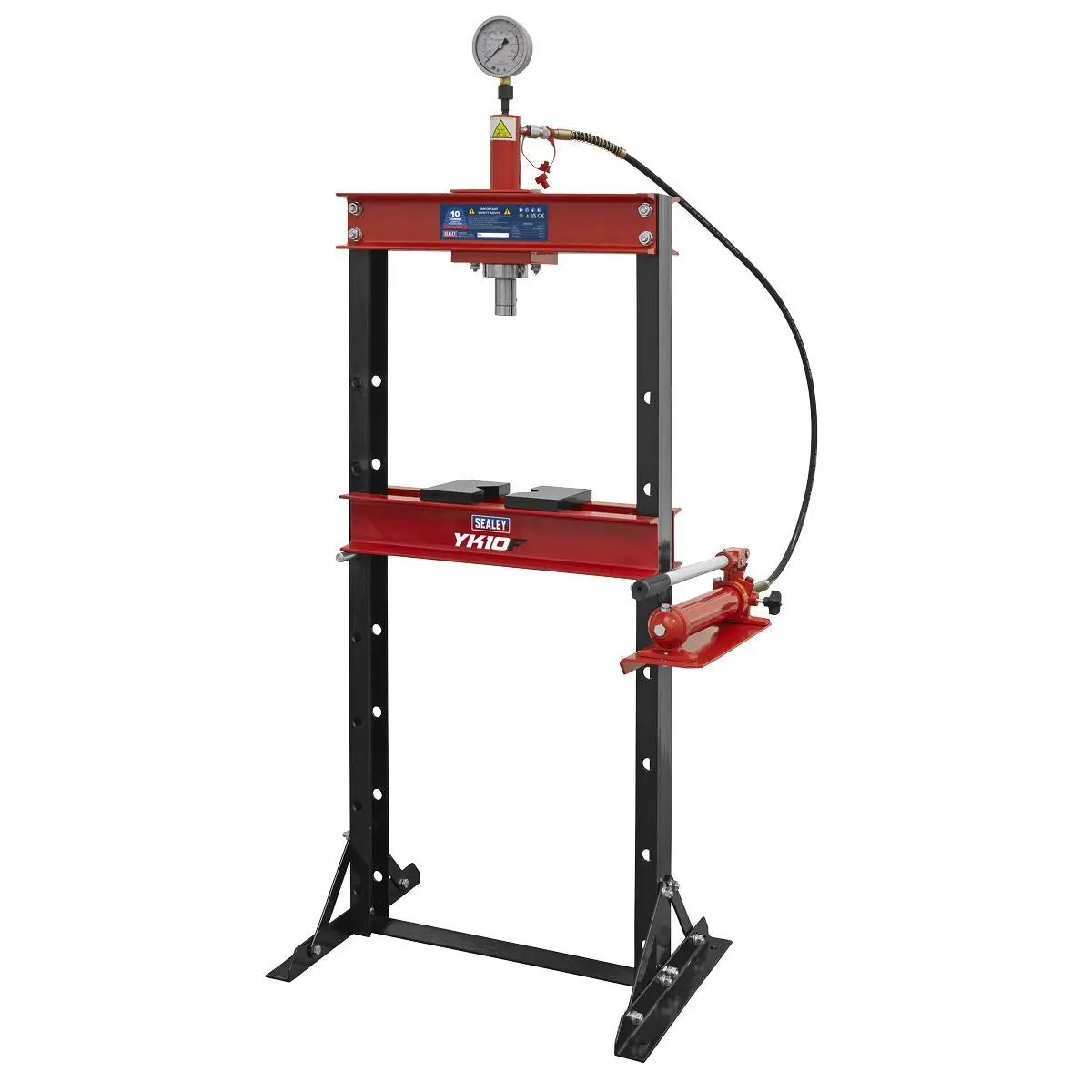

Sealey Hydraulic Floor Type Press 10 Tonne

Sealey Hydraulic Floor Type Press 10 Tonne

Made from high quality steel with a powder coated paint finish to help corrosion resistance.

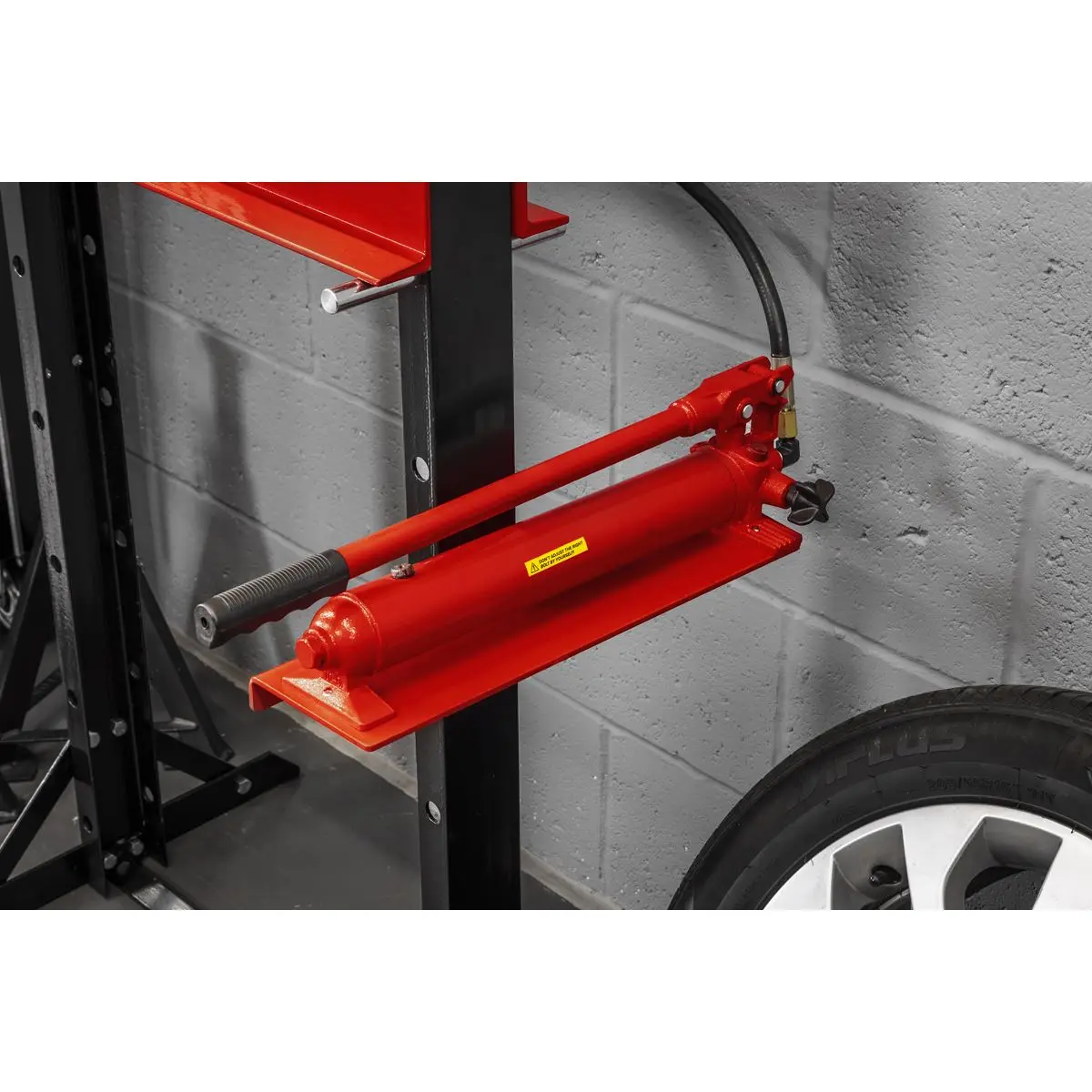

Detachable pump and ram allowing hydraulics to be used for other purposes when press is not in use.

Includes 2 table plates.

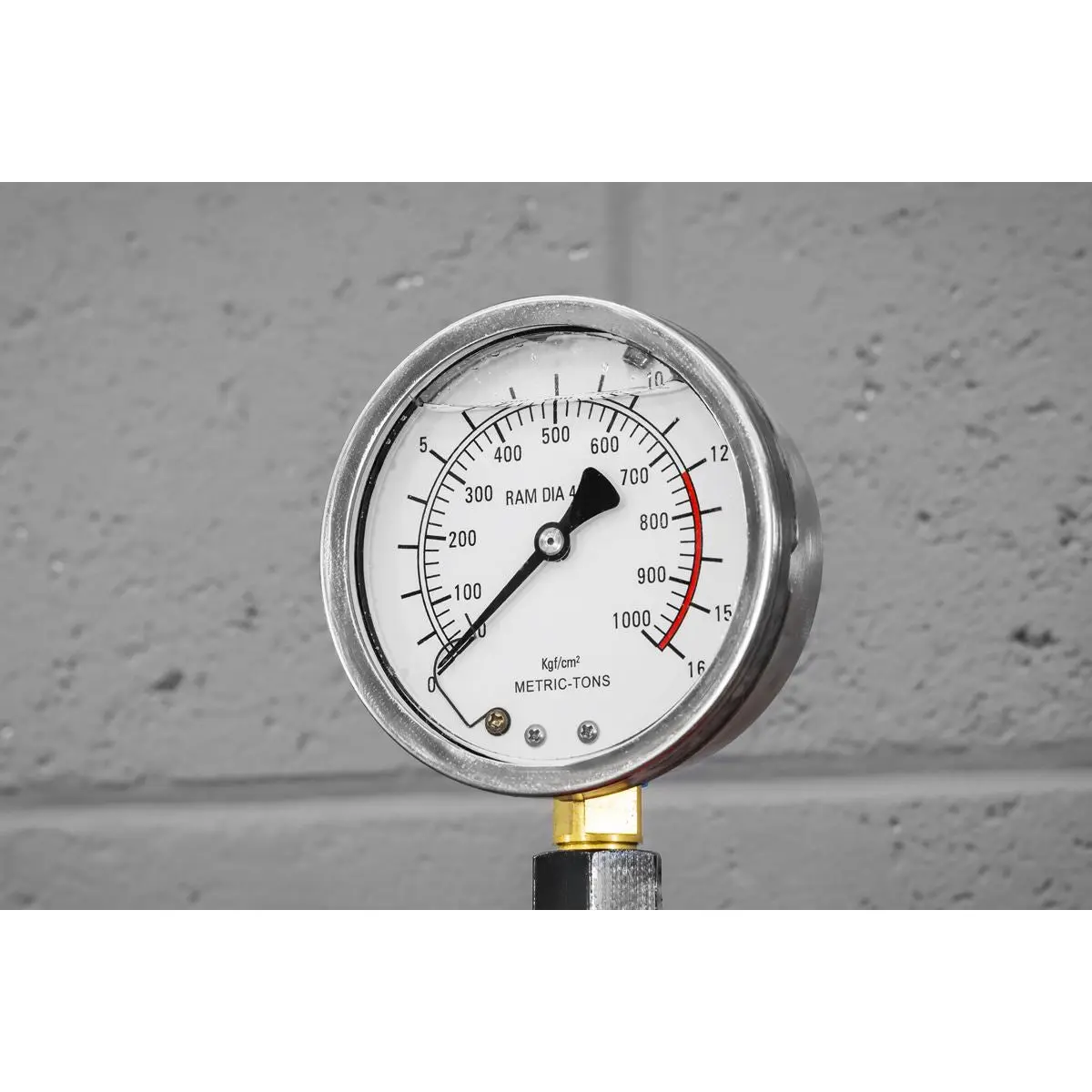

Supplied with gauge.

Specification:

• Model No YK10F
• Bench or Floor Mounting: Floor
• Brand: Sealey
• Capacity: 10 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: n/a
• Maximum Height - Ram to Table: 917mm
• Minimum Height - Ram to Table: 77mm
• Nett Weight: 66.5kg
• Operating Table Width: 510mm
• Optional Accessories: n/a
• Overall Height: 1657mm
• Ram Diameter: Ø40mm
• Ram Stroke: 175mm
• Screw Extension: n/a
• Table Aperture: 84mm
• Type: Hydraulic
• Working Table Depth: 180mm
• Working Table Width: 590mm
• Working Table Width: 510mm

Product Guarantee: 1 Year
Catalogue Page: Page 897

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
