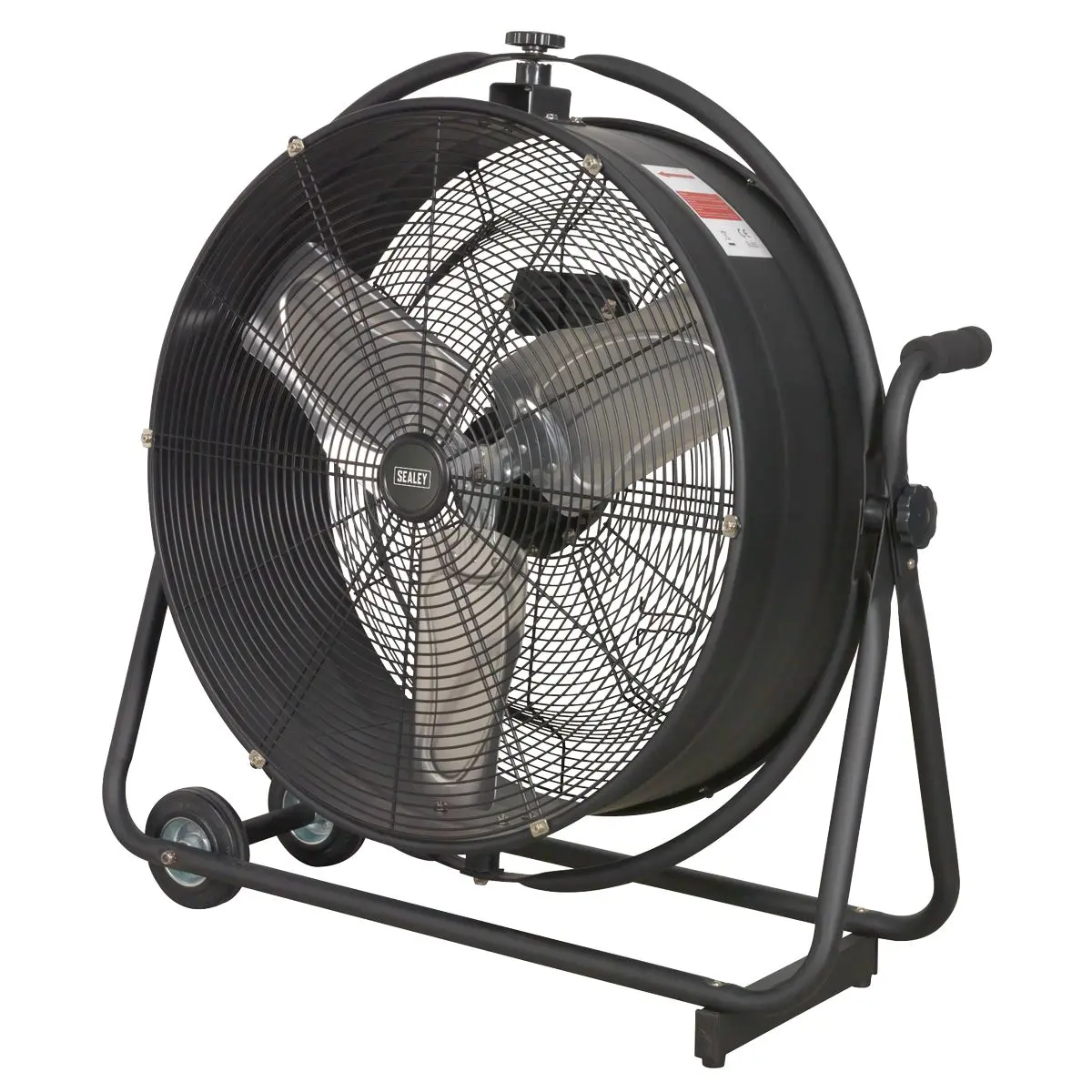

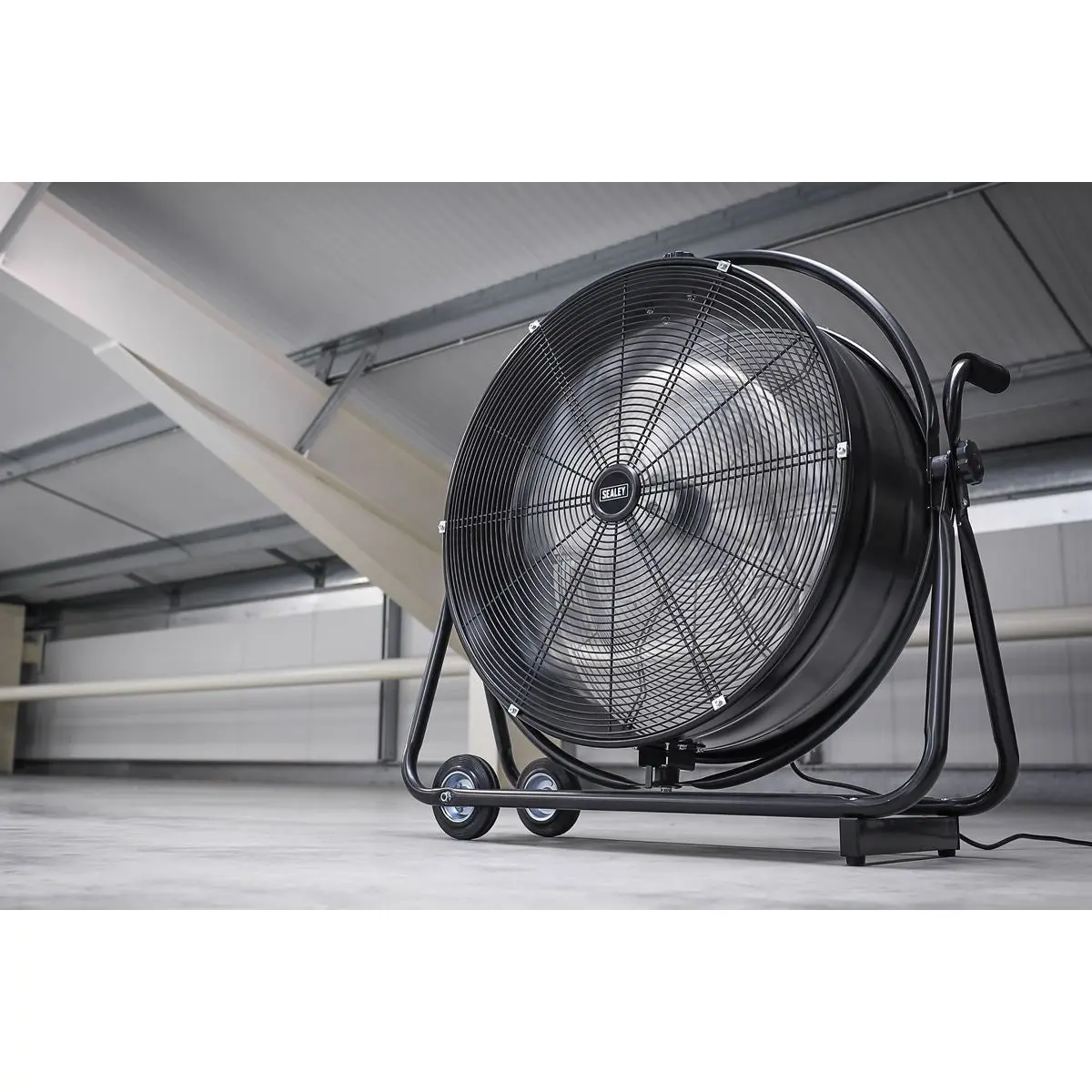

Sealey Industrial High Velocity Orbital Drum Fan 24" 230V
Sealey Industrial High Velocity Orbital Drum Fan 24" 230V
High velocity industrial 2-speed drum fan suitable for movement of huge volumes of air.
Robust unit with heavy-duty gauge steel casing, guard and frame.

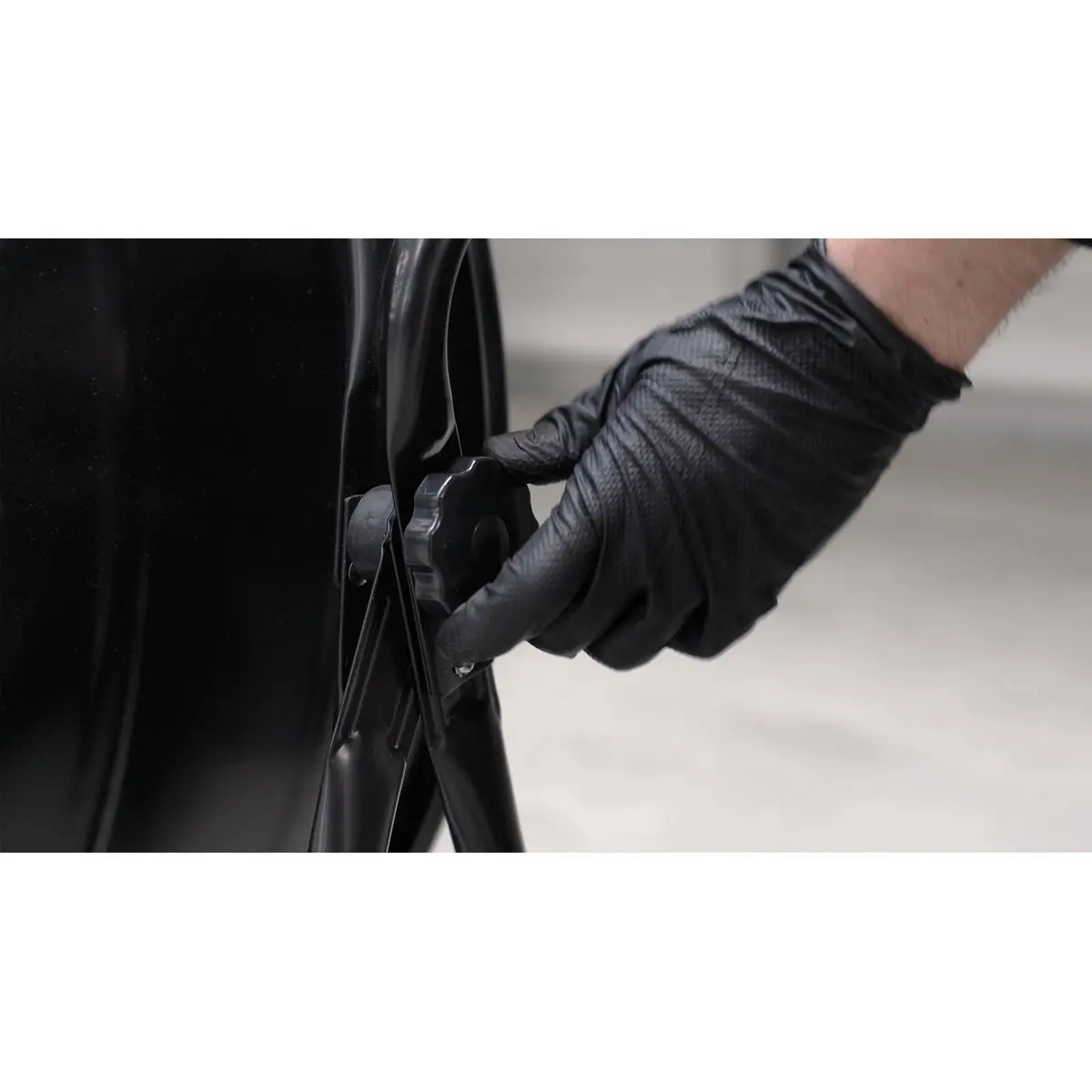

Featuring a 360° tilt function allowing for the direction of airflow to be positioned anywhere on a 360° axis.
Carefully balanced and fully guarded blades provide safe operation.
Maximum Airflow: 155.3m³/min(5484cfm).
Fitted with 3-pin plug.
Suitable for industrial, commercial, agricultural, automotive workshop and showroom applications.
Specification:
- Model No HVF24S
- Brand: Sealey
- Current: 0.52A
- Fan Diameter: Ø610mm(24")
- Maximum Airflow: 155.3m³/min(5484cfm)
- Nett Weight: 17.11kg
- Power: 116.32W
- Maximum Fan Flow Rate (F): 155.3m³/min
- Fan Power Input (P): 116.3 W
- Service Value (SV): 1.34(m³/min)/W
- Standby Power Consumption (Psb): 0.0 W
- Fan Sound Power Level (Lwa): 84 dB(A)
- Maximum Air Velocity (c): 3.7m/sec
- Speed Range: 1100-1350rpm
- Speeds: 2
- Supply: 230V
Catalogue Page: Page 1277
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
