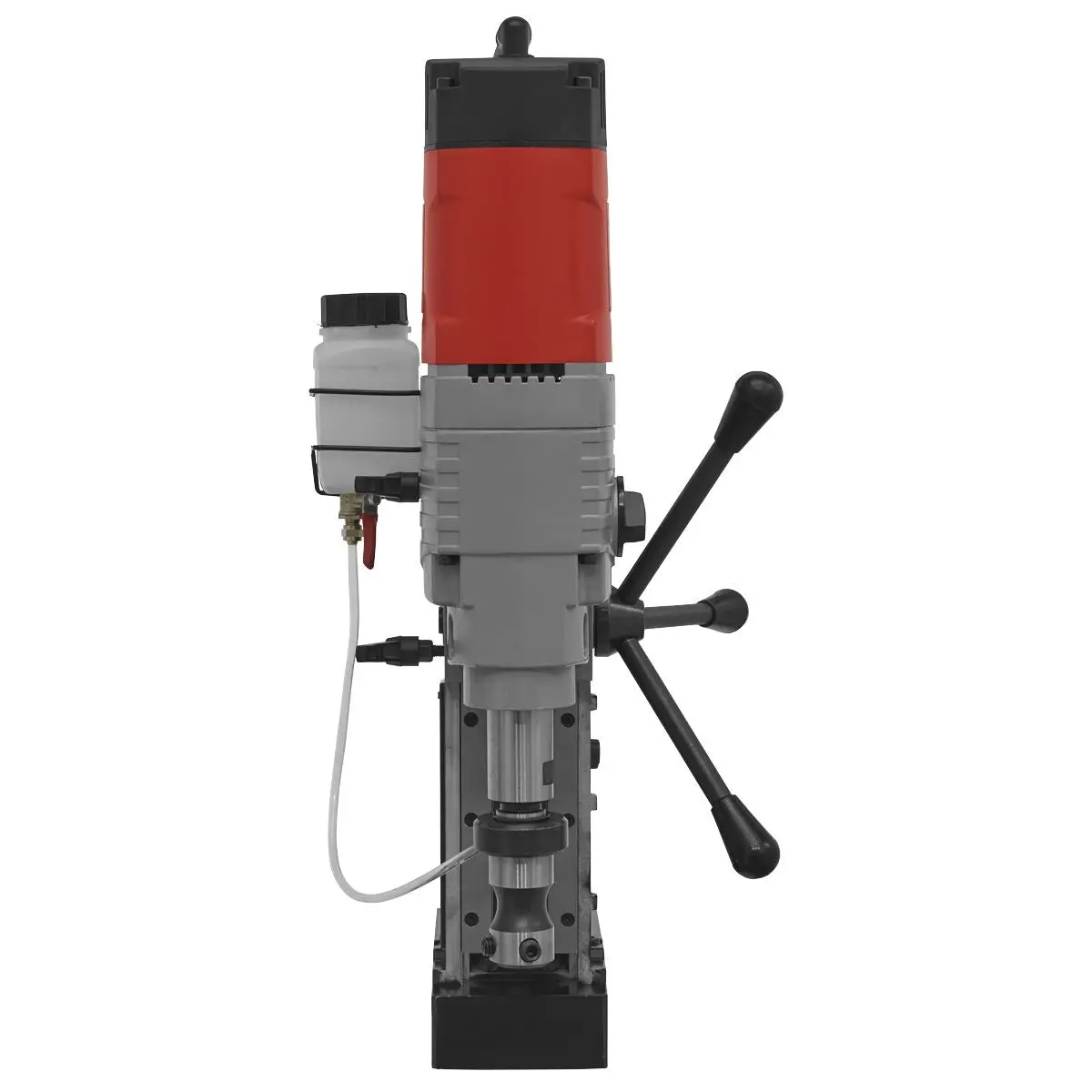

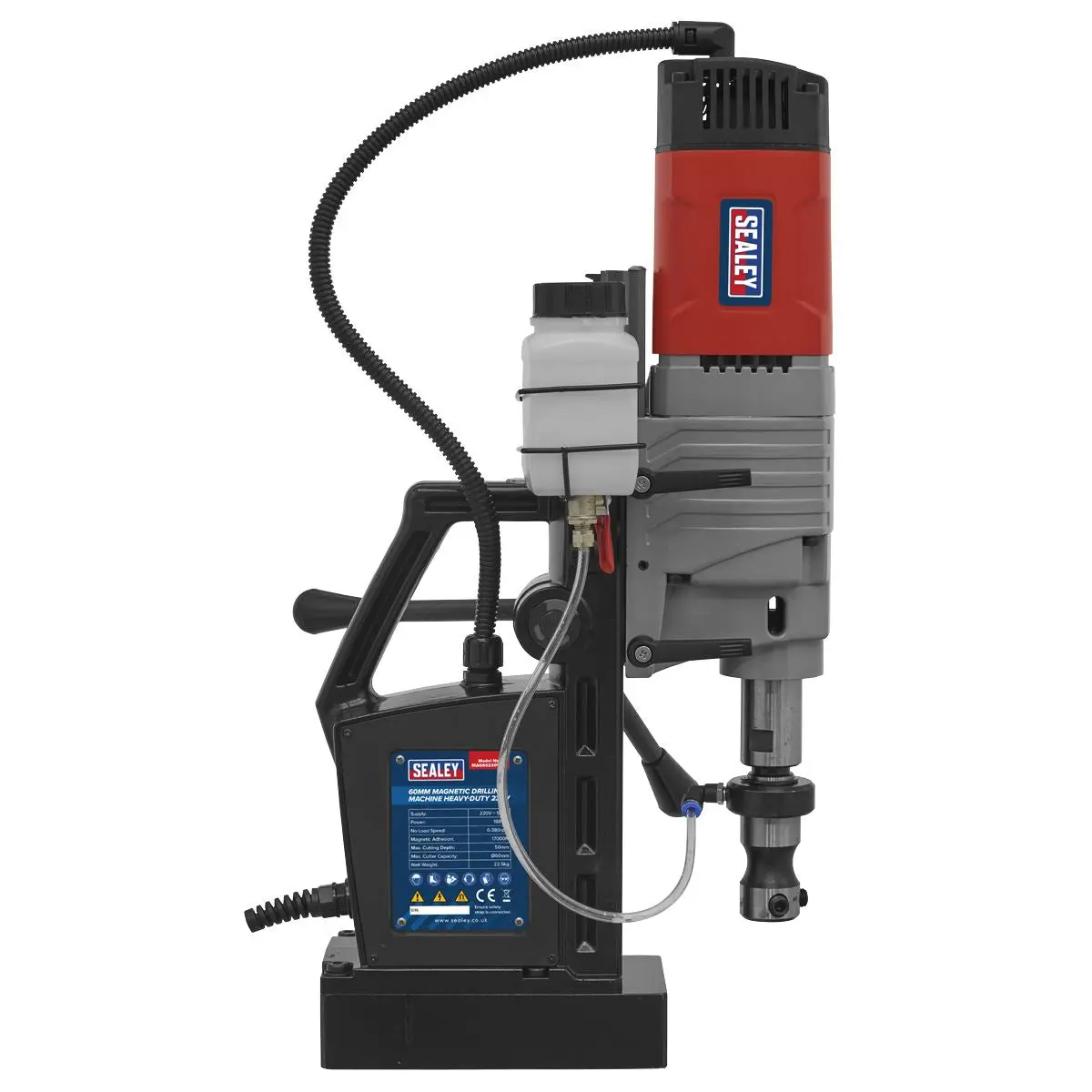

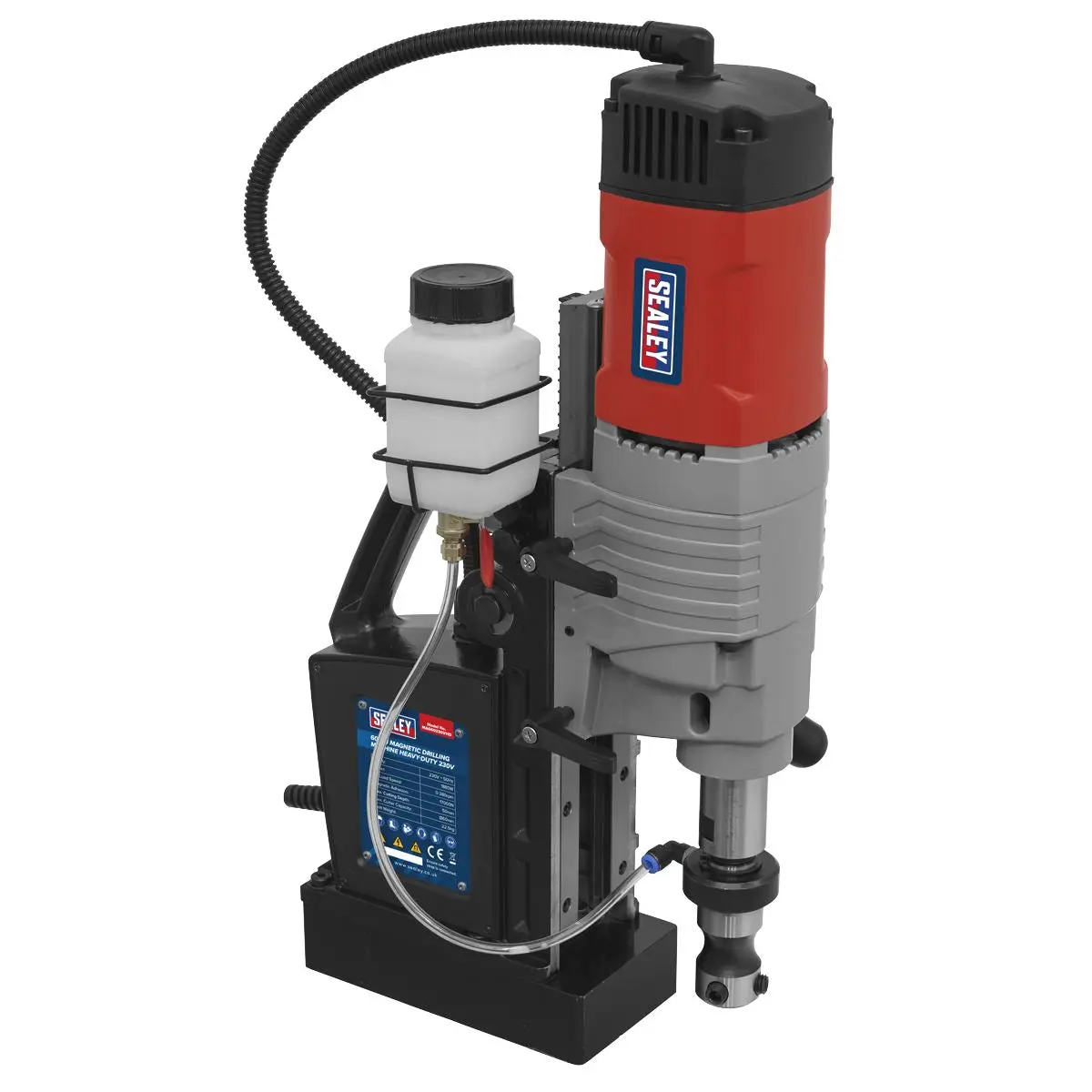

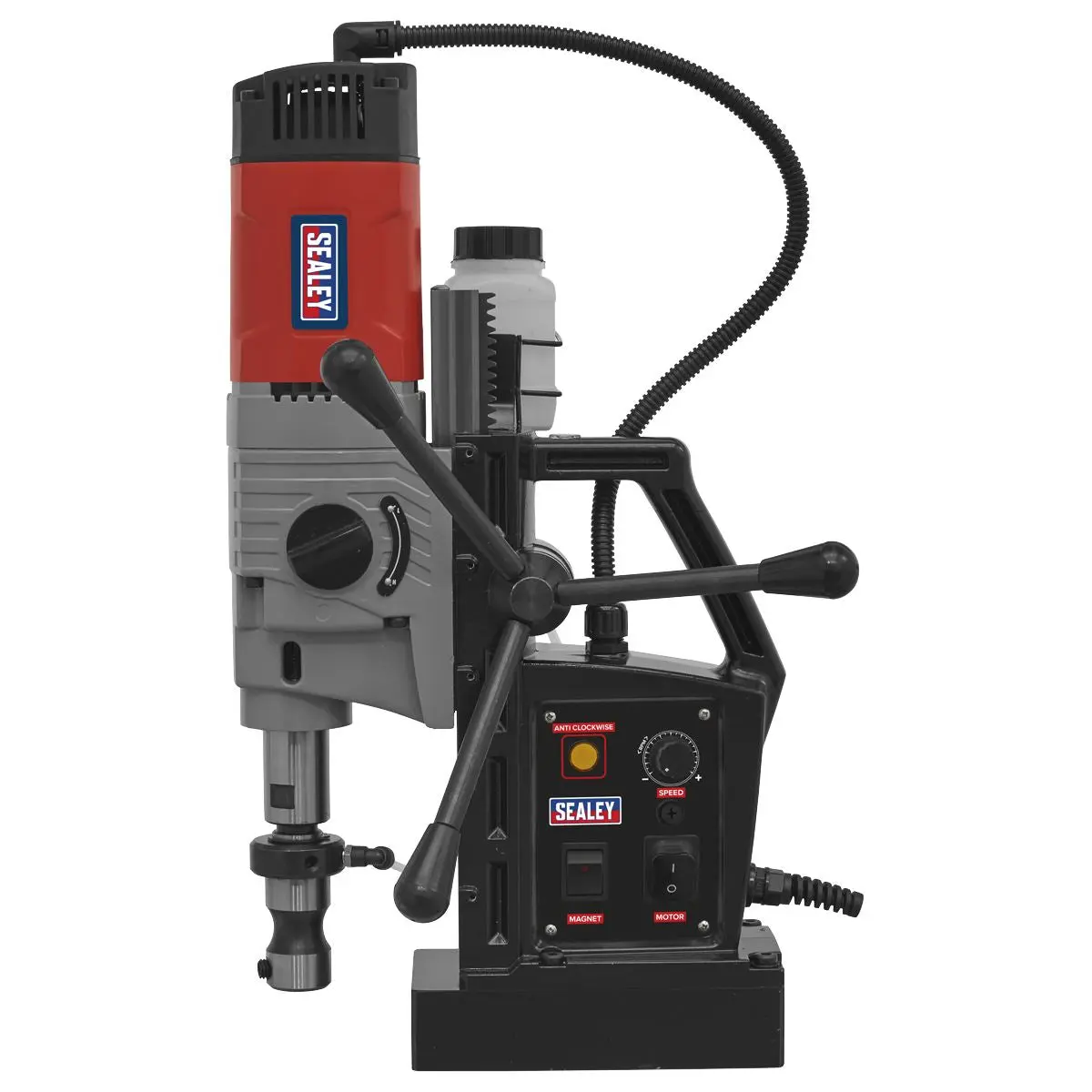

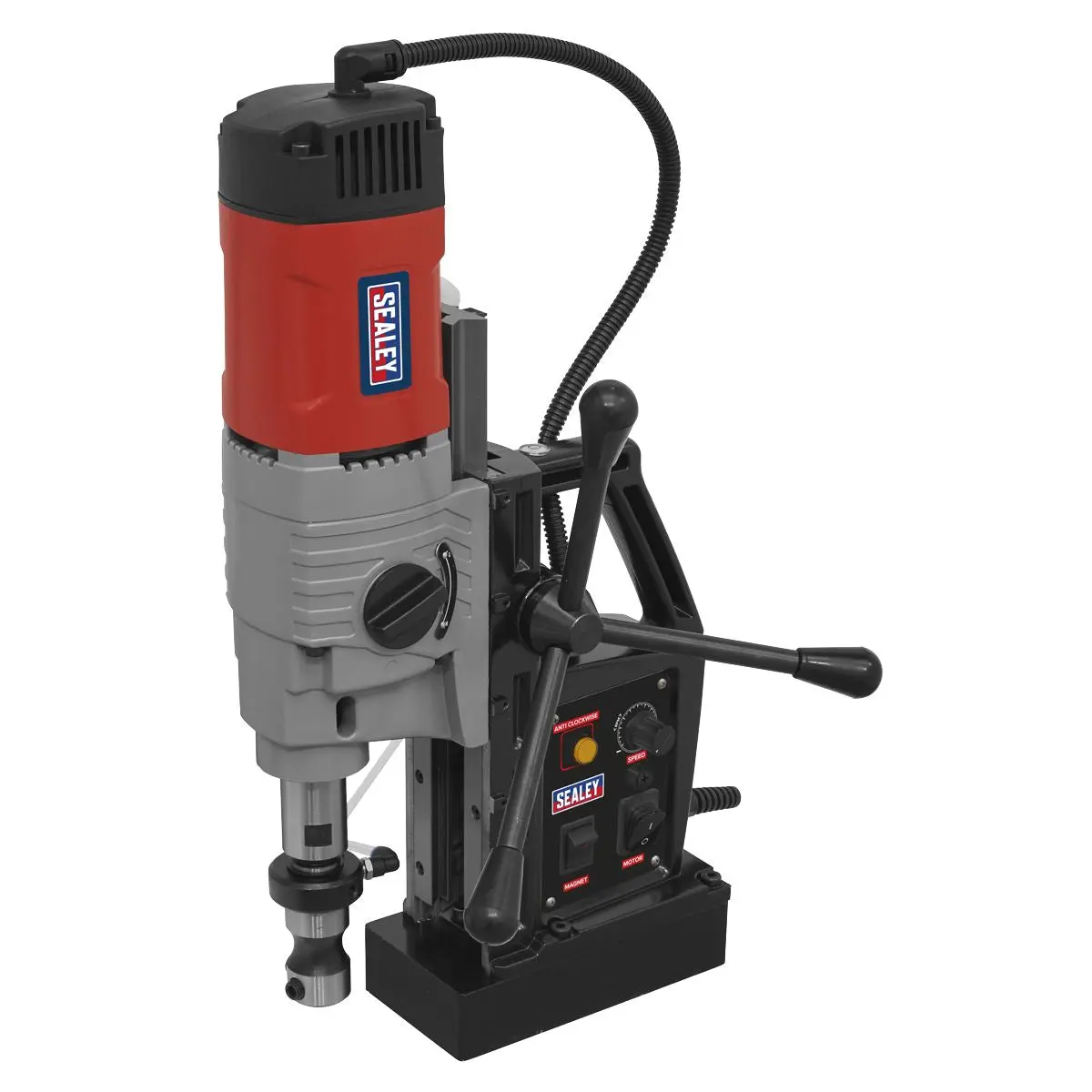

Sealey Magnetic Drilling Machine Heavy-Duty 60mm 230V

Sealey Magnetic Drilling Machine Heavy-Duty 60mm 230V

Manufactured using high quality components for performance and reliability.

Made from heavy-duty die-cast magnesium alloy with a variable speed gearbox for greater accuracy.

Fitted with a powerful magnet to ensure unit stays adhered at any angle.

Uses a double dovetail groove to increase the stroke length.

Includes safety fixing strap and integrated coolant system.

Can be used with a 16mm twist drill chuck and M8 to M20 Tapping chucks.

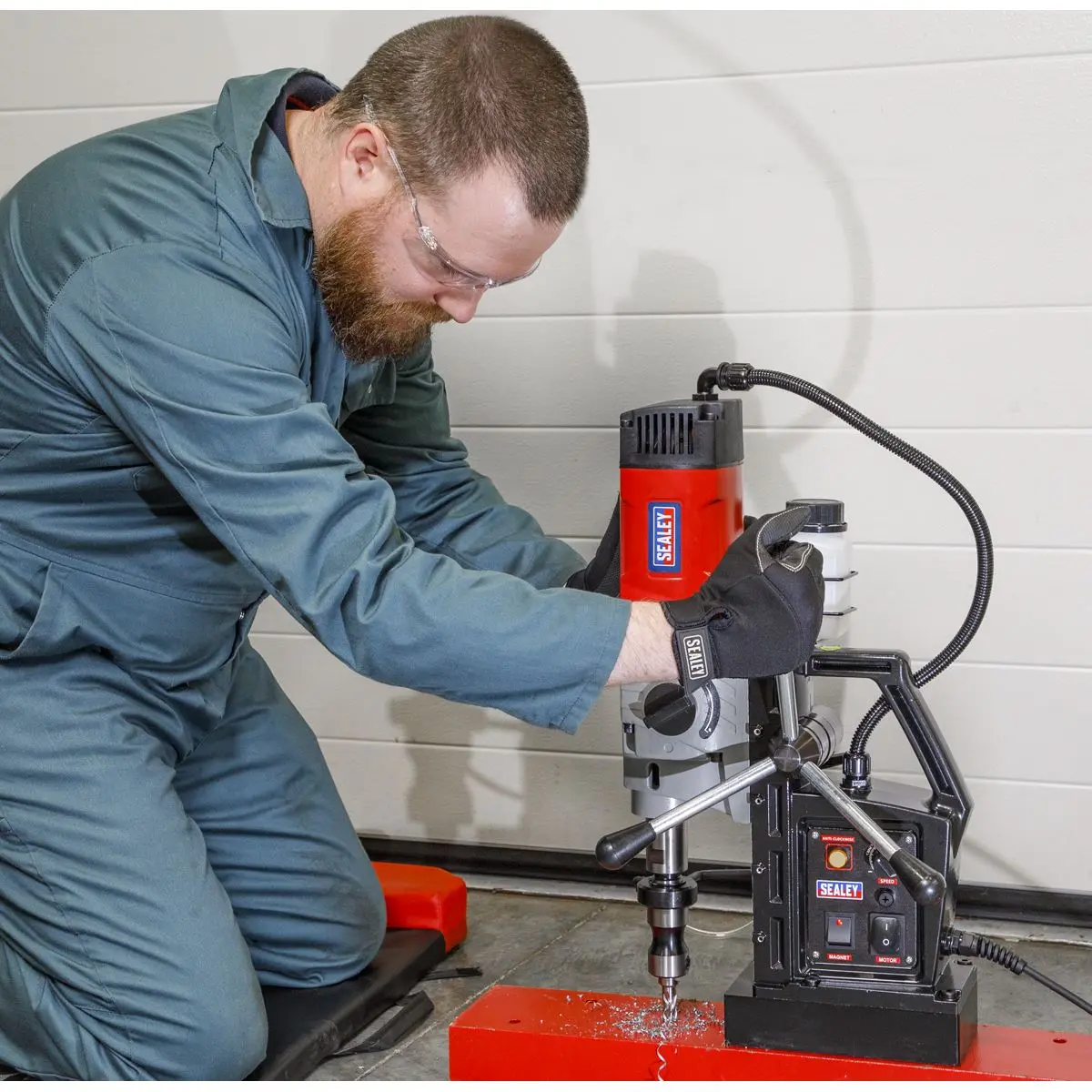

Designed for use in fabrication, construction and other applications when drilling/tapping ferrous metal.

Specification:

• Model No MAG60230VHD
• Brand: Sealey
• Magnet Adhesion: 17000N
• Maximum Annular Cutter Capacity: Ø60mm
• Maximum Cutter Depth: 50mm
• Motor Power: 1880W
• Nett Weight: 22.50kg
• No-Load Speed: 220/380rpm
• Core Drill Diameter: Ø60mm
• Twist Drill Diameter: 23mm
• Tapping Drill Diameter: M8 - M20
• Power Supply: 220V - 50Hz
• Motor Power: 1880W
• Magnetic Adhesion: 17000N
• No-Load Speed: 0-380rpm
• Cutting Depth: 50mm
• Morse taper: MT3
• Stroke Length: 220mm

Product Guarantee: 1 Year
Catalogue Page: Page 911

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
