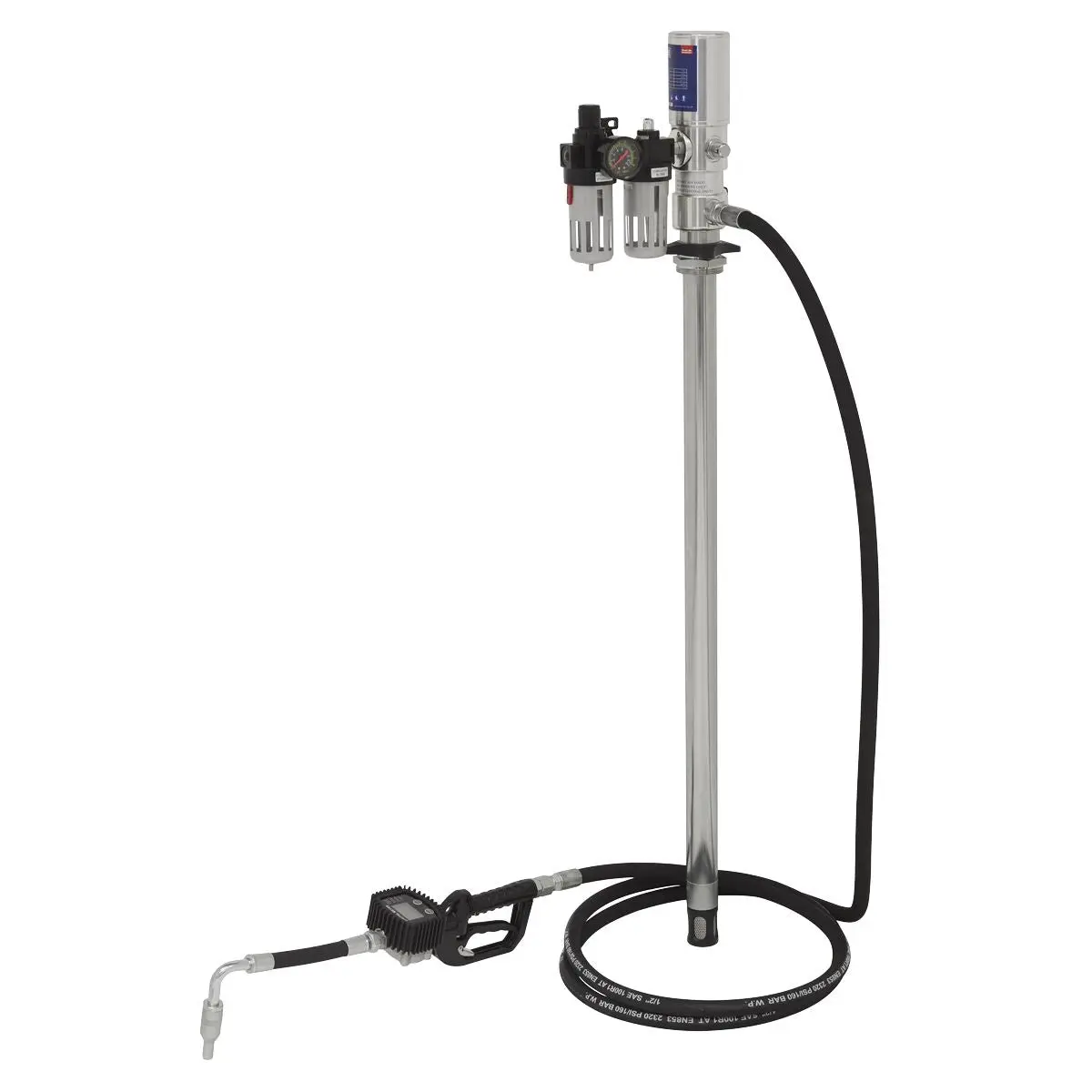

Sealey Oil Dispensing Pump Station Air Operated

Sealey Air Operated Oil Dispensing Pump Station

Air operated 3:1 double acting pump for barrels or tanks with 2"BSP fittings.

Pump is supplied with air management system and connected to a 940mm rigid suction probe with non-return valve.

Features hose for attachment to digital oil meter (Model No. AK4565D supplied) or to optional retractable hose reel (Model No. AK4567D).

Suitable for use with engine, hydraulic, synthetic, gear and transmission oils up to SAE150.

Specification:

• Model No AK4560D
• Brand: Sealey
• Maximum Air Pressure: 115psi
• Maximum Flow Rate: 12L/min
• Maximum Output Pressure: 350psi
• Maximum Viscosity: SAE150
• Nett Weight: 10.49kg
• Outlet Size: 1/2"BSP
• Pump Ratio: 3:1
• Recommended Air Pressure: 70psi

Product Guarantee: 1 Year
Catalogue Page: Page 962

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
