Sealey Plasma Inverter 40A with Compressor

Sealey Plasma Inverter 40A with Compressor

INTERNAL COMPRESSOR - Features an integral compressor reducing the need for a secondary unit yet still lightweight weighing only 18.5kg.

IGBT INVERTER – Inverter power supply fitted with plasma cutter control circuitry.

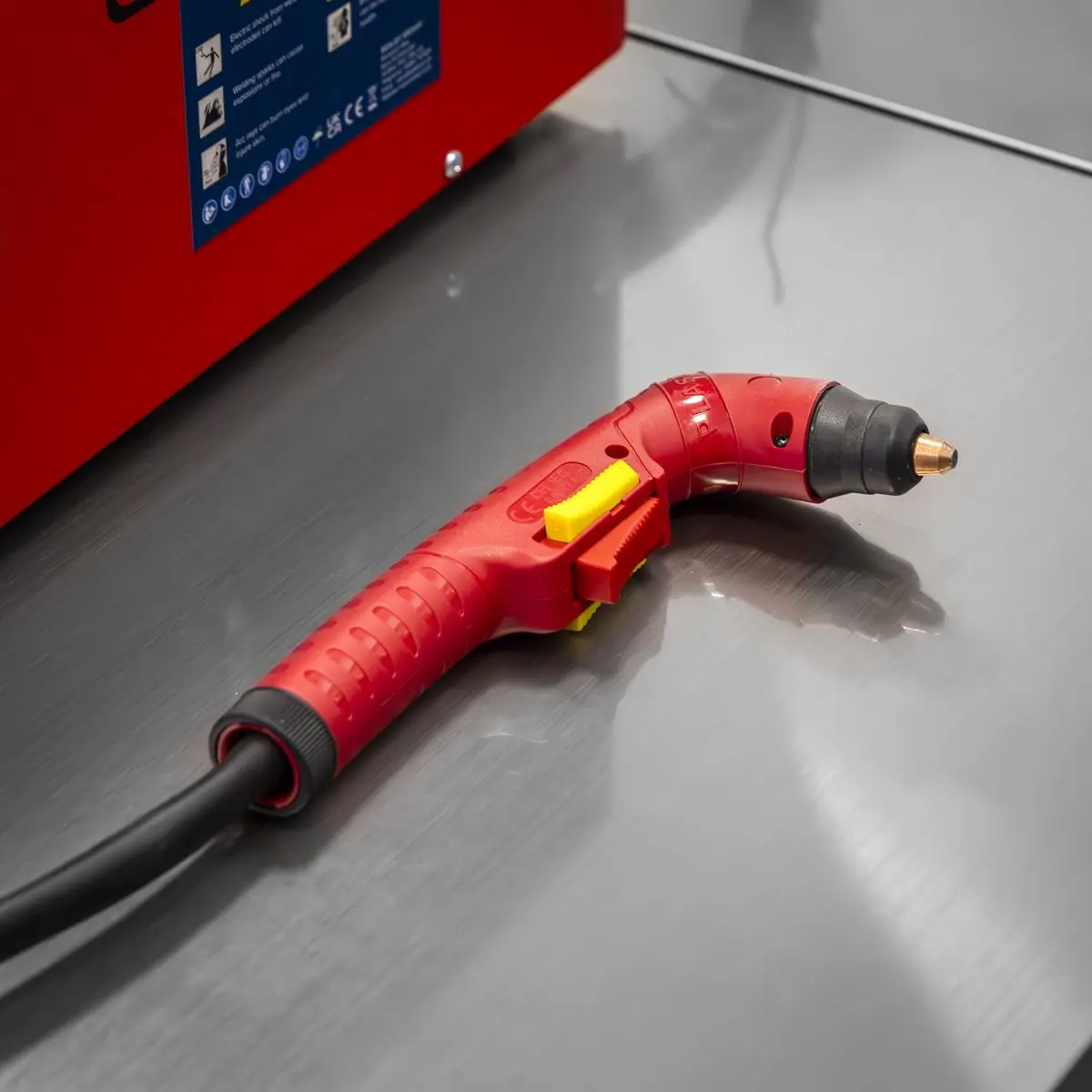

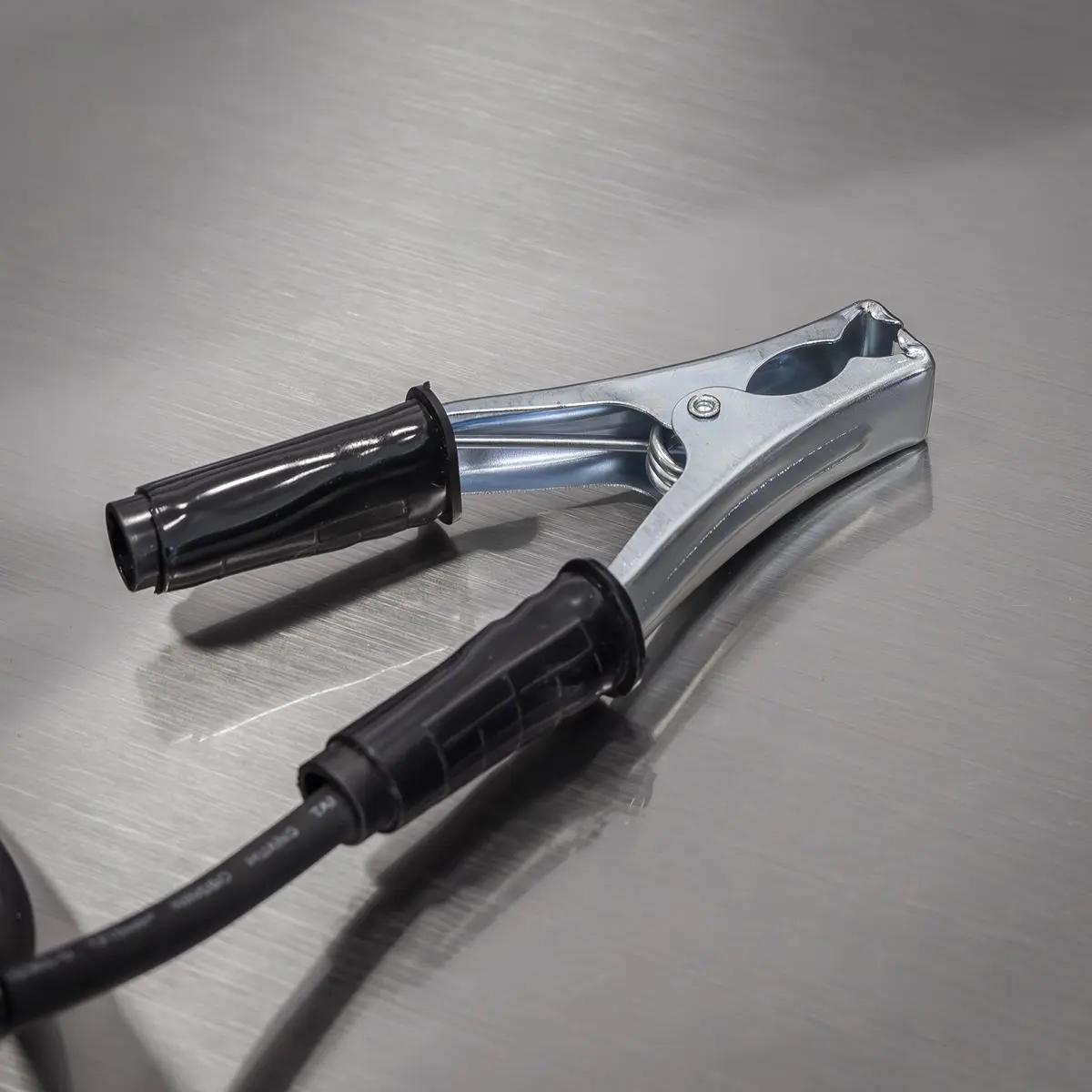

SUPPLIED WITH- Supplied with built-in 4m plasma torch, earth cable and 4m gas hose.

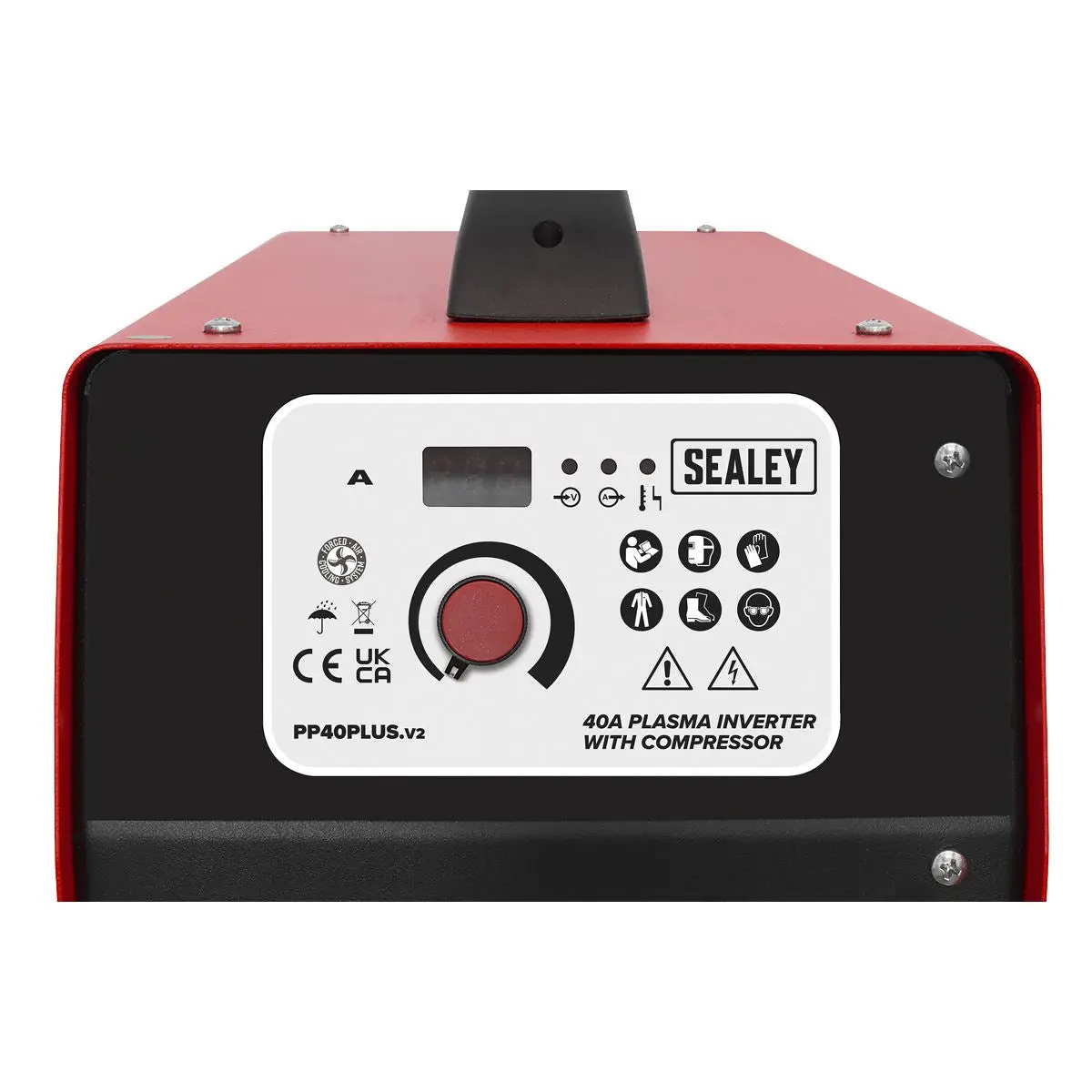

CLEAR LED DISPLAY – Easy to read LED display to show the current output and dial adjustment from 15-40A.

CAN BE USED NEAR ELECTRICAL EQUIPMENT - Uses air to strike arc making it suitable for use near electrical equipment.

SUITABLE FOR MOST METALS - Ideal for cutting steel, stainless, galvanized steel, aluminium, copper and brass.

Specification:

• Model No PP40PLUS
• Brand: Sealey
• Nett Weight: 18.5kg
• Power Output: 15-40A
({IF["Duty Cycle: 20% @ 40A 30% @ 35A , 60% @ 25A"!=""]})
• Duty Cycle: 20% @ 40A 30% @ 35A , 60% @ 25A
({ENDIF})
• Max Cutting Thickness: 10mm
• Air Requirements: Integral Compressor.
• Air Pressure: N/A
• Absorbed Power: 6.9kW
• Supply: 230V
• Insualtion: F
• Protection: IP21S
• Nett Weight: 18.5kg
• Accessories: Yes
• Replacement Consumables:
• Electrode, Short (Pack of 5): PP40PLUS.E (x5)
• Nozzle, Short (Pack of 5): PP40PLUS.N (x5)
• Diffuser (Pack of 5): PP40PLUS.D (x5)
• Safety Cap (Pack of 2): PP40PLUS.SC (x2)
• Note: *To achieve maximum power a 32A supply may be required.
• Safety Cap (Pack of 2): PP40PLUS.SC (x2)
• Note: *To achieve maximum power a 32A supply may be required.

Product Guarantee: 1 Year
Catalogue Page: Page 998

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
