Sealey Premier Inverter Welder 200A 230V
Sealey Premier Inverter Welder 200A 230V
Compact and lightweight unit, suitable for arc/MMA welding and TIG using the lift start method.
Unit can weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø5mm.
Features thermal cut-out protection, anti-stick, arc force and hot start functions.
Portability allows the welder to be taken to the job at hand, ideal for the mobile technicians.

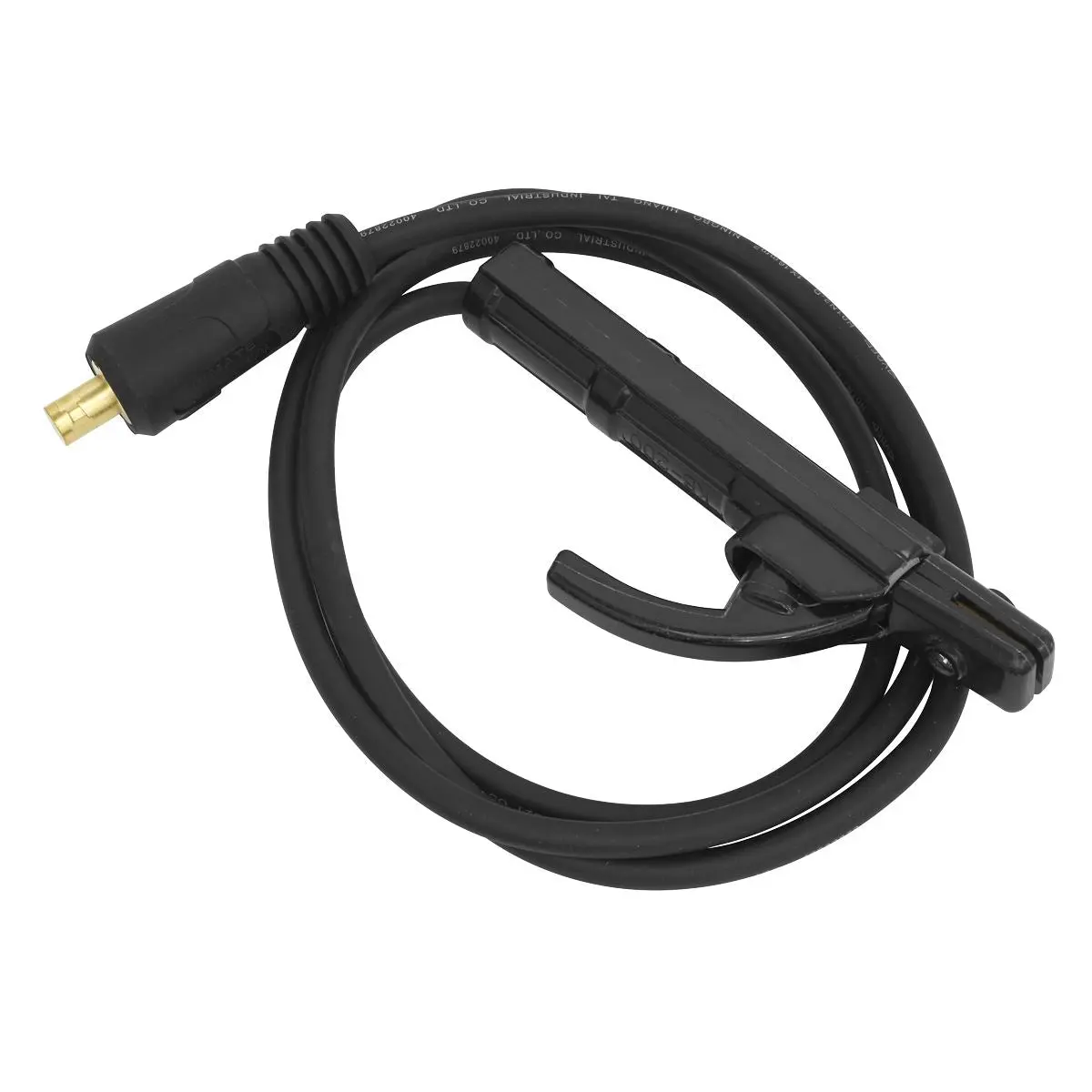

Supplied with 2m 16mm² cable with electrode holder and 2m 16mm² earth clamp and cable, both with 35-70 quick connectors.
Forced air cooling system.
Optional TIG accessory kit available Model No. TIG10S.
3 Year guarantee*.
Specification:
- Model No MW200I
- Brand: Sealey Premier
- Nett Weight: 5.56kg
- Welding Current: 20-200A
- Duty Cycle: 100% @ 89A, 60% @ 115A, 20% @ 200A
- Electrode Capacity: Ø1.6-5mm
- Absorbed Power: 9.2kW ({IF["Supply: 230V-16* *Note: To achieve maximum power a 16A supply may be required."!=""]})
- Supply: 230V-16* *Note: To achieve maximum power a 16A supply may be required. ({ENDIF})
- Protection: IP21S
- Weight: 5.56kg
- TIG Accessory Kit (Optional): TIG10S - Inverter TIG Welding Torch 16mm²
Catalogue Page: Page 748
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
