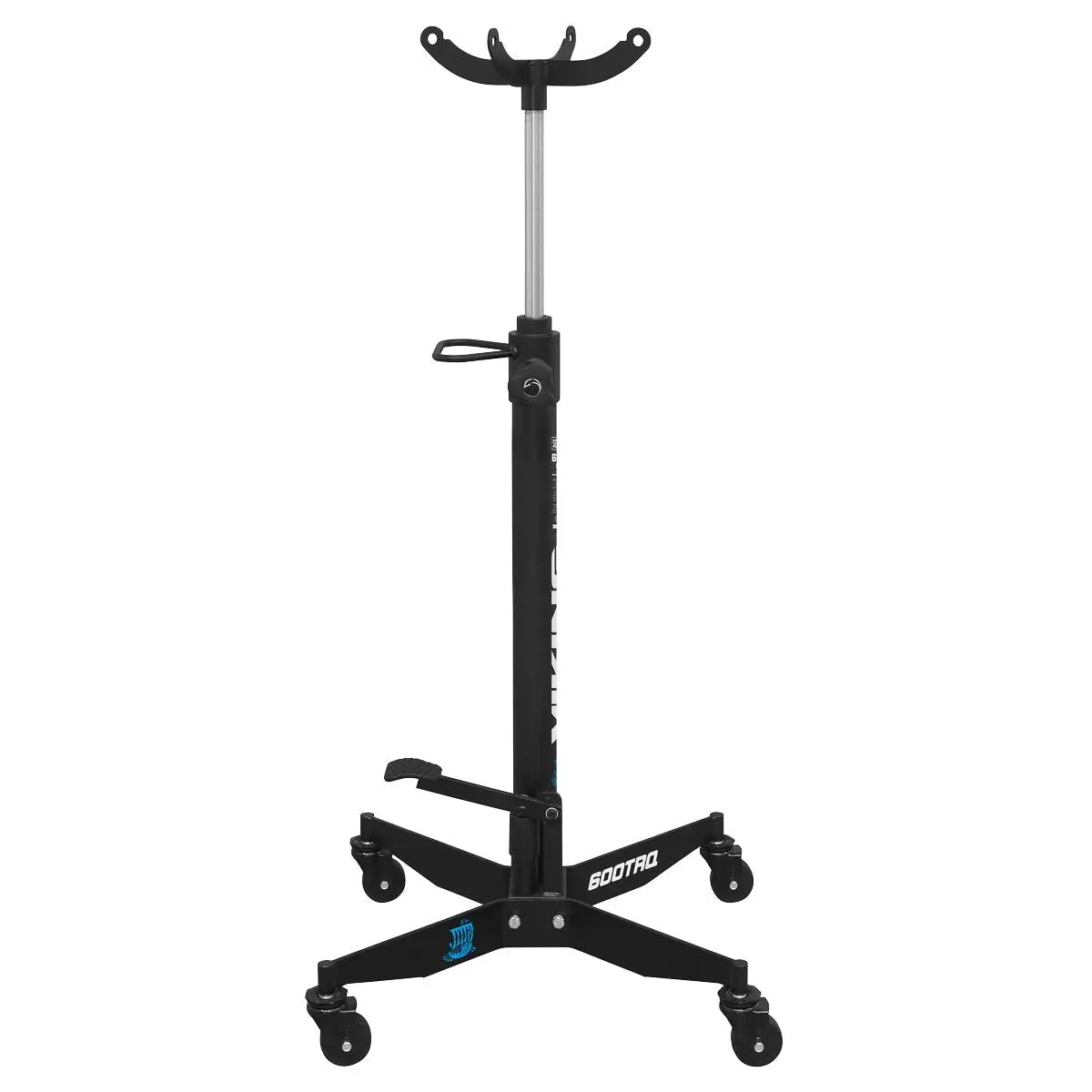

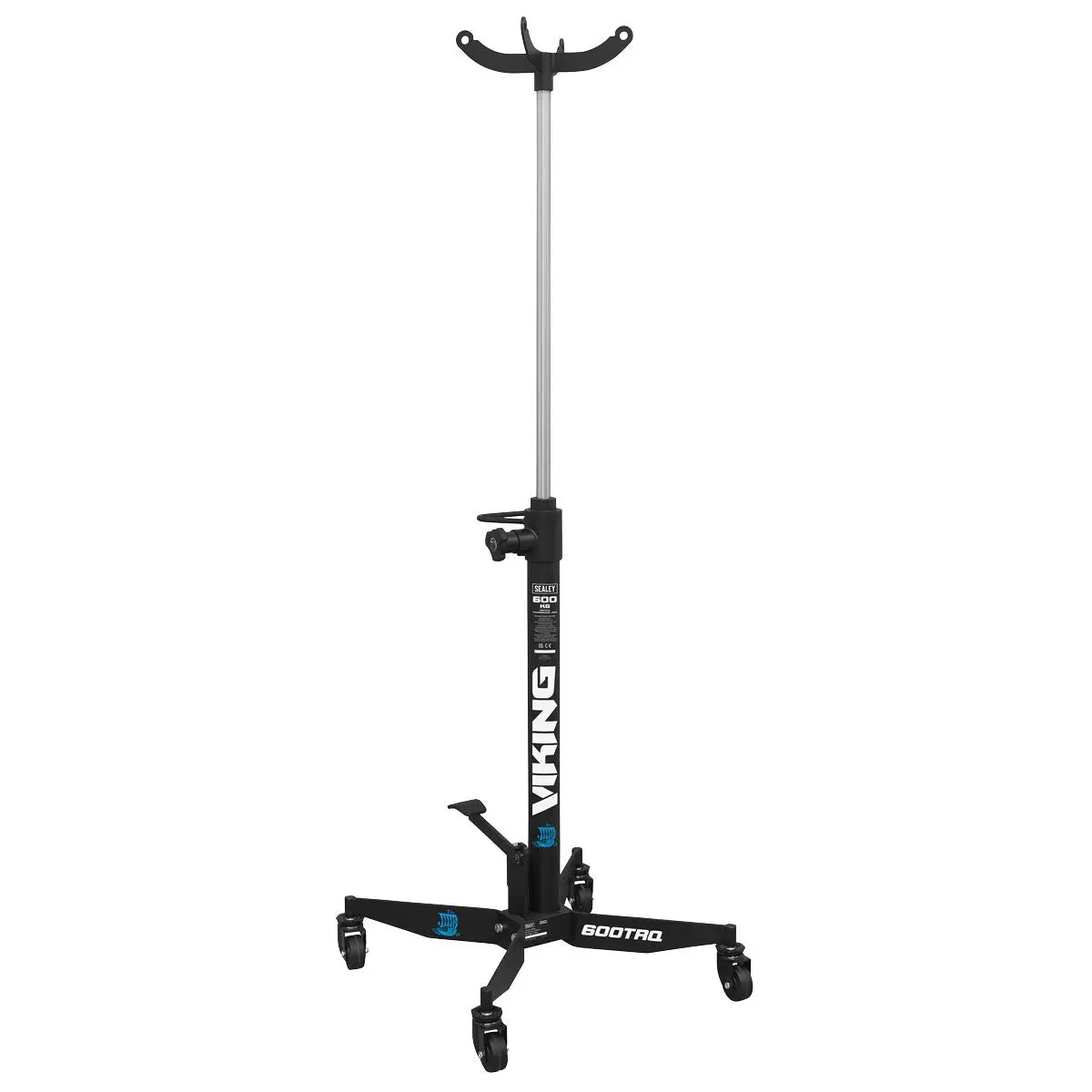

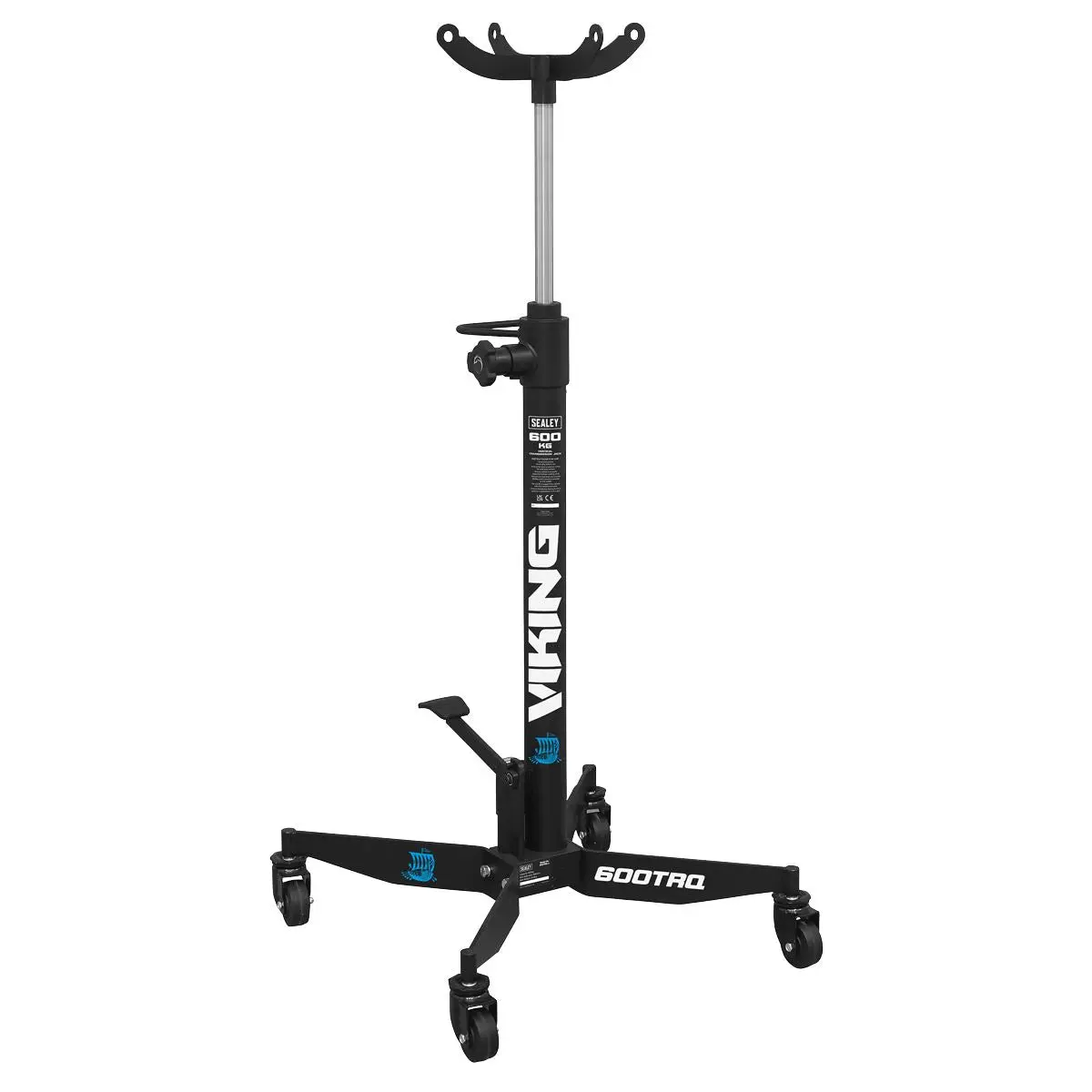

Sealey Viking Vertical Transmission Jack with Quick Lift 600kg

Sealey Viking Vertical Transmission Jack with Quick Lift 600kg

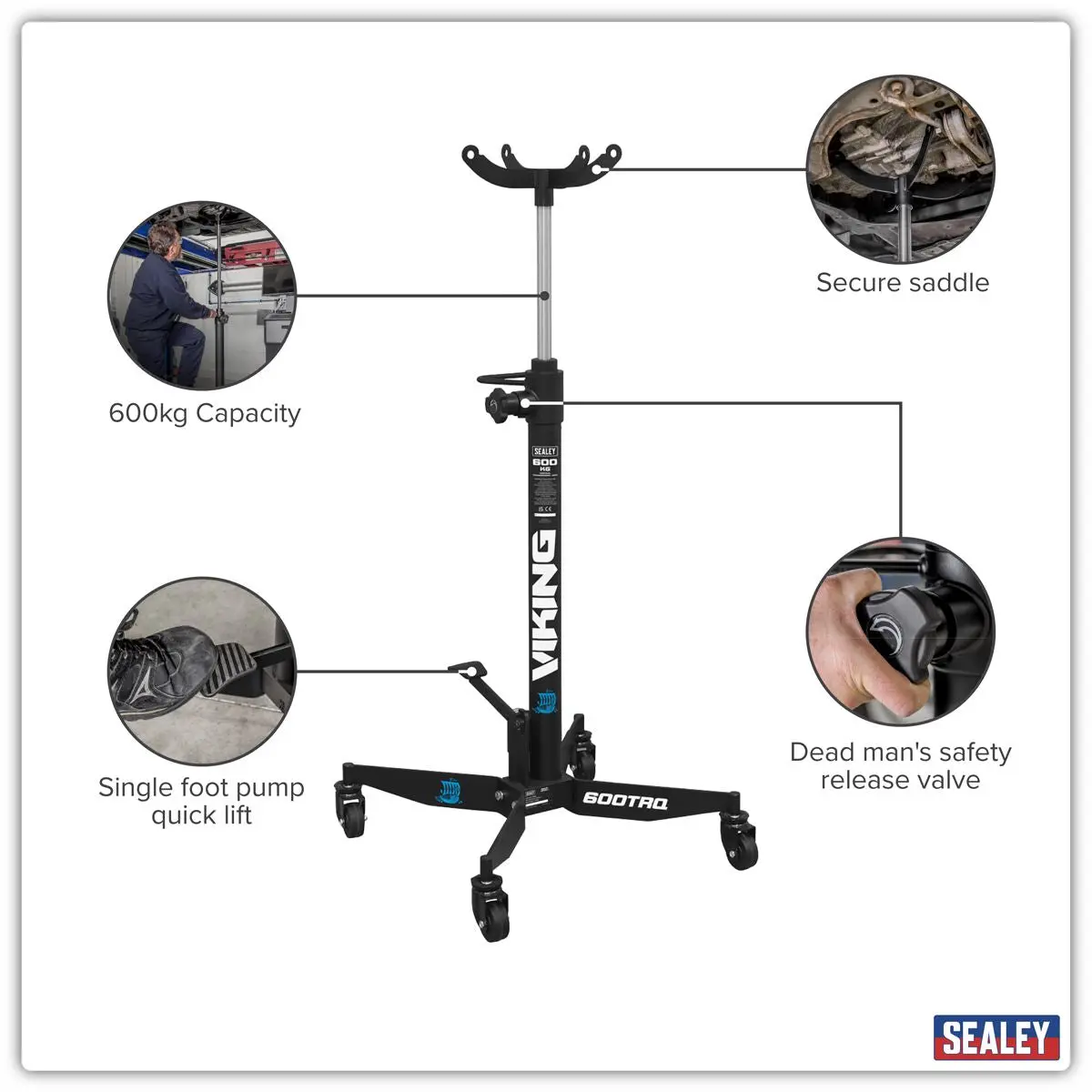

QUICK LIFT - reduced time and effort needed to get saddle to gearbox, only a maximum of 22 pumps needed to reach full height.

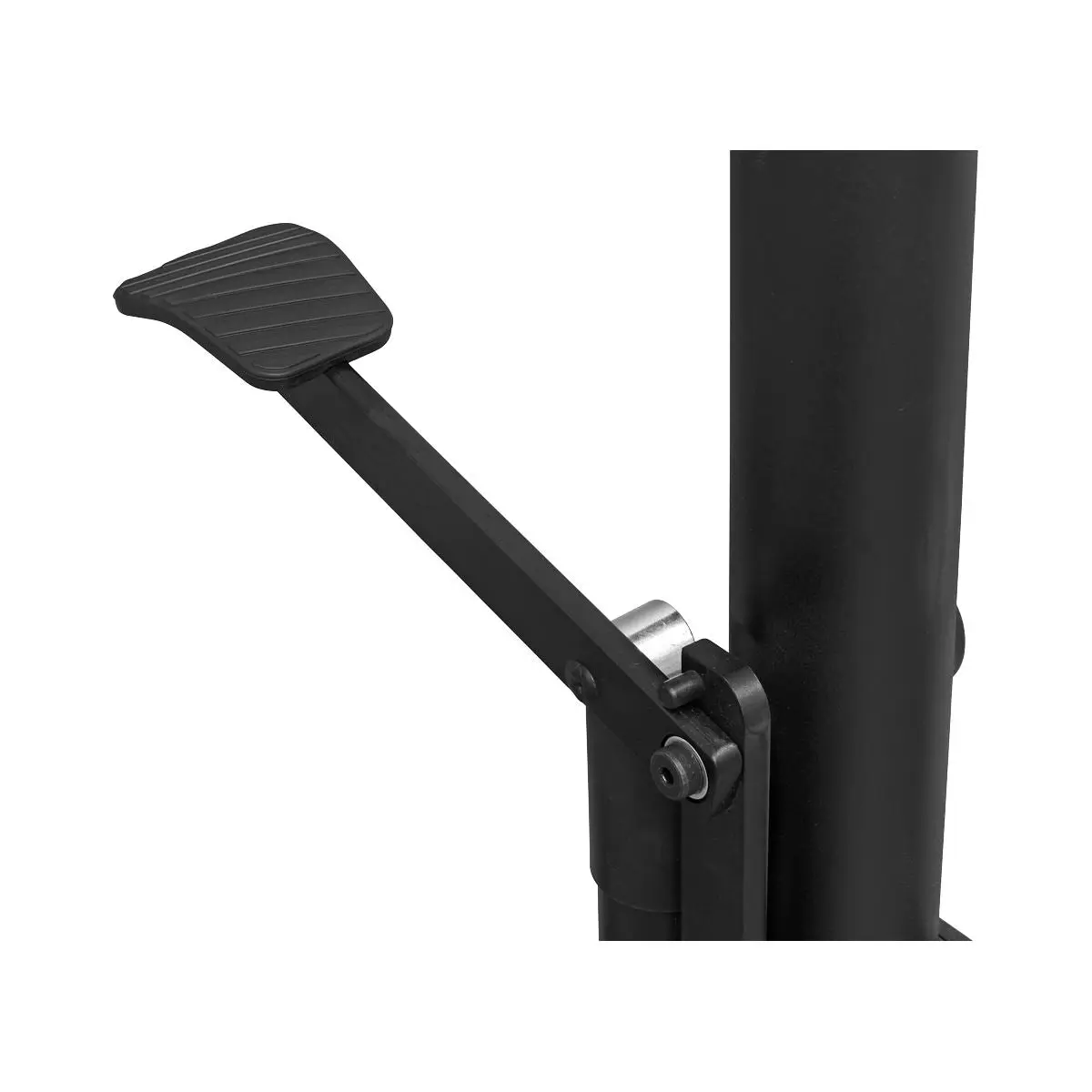

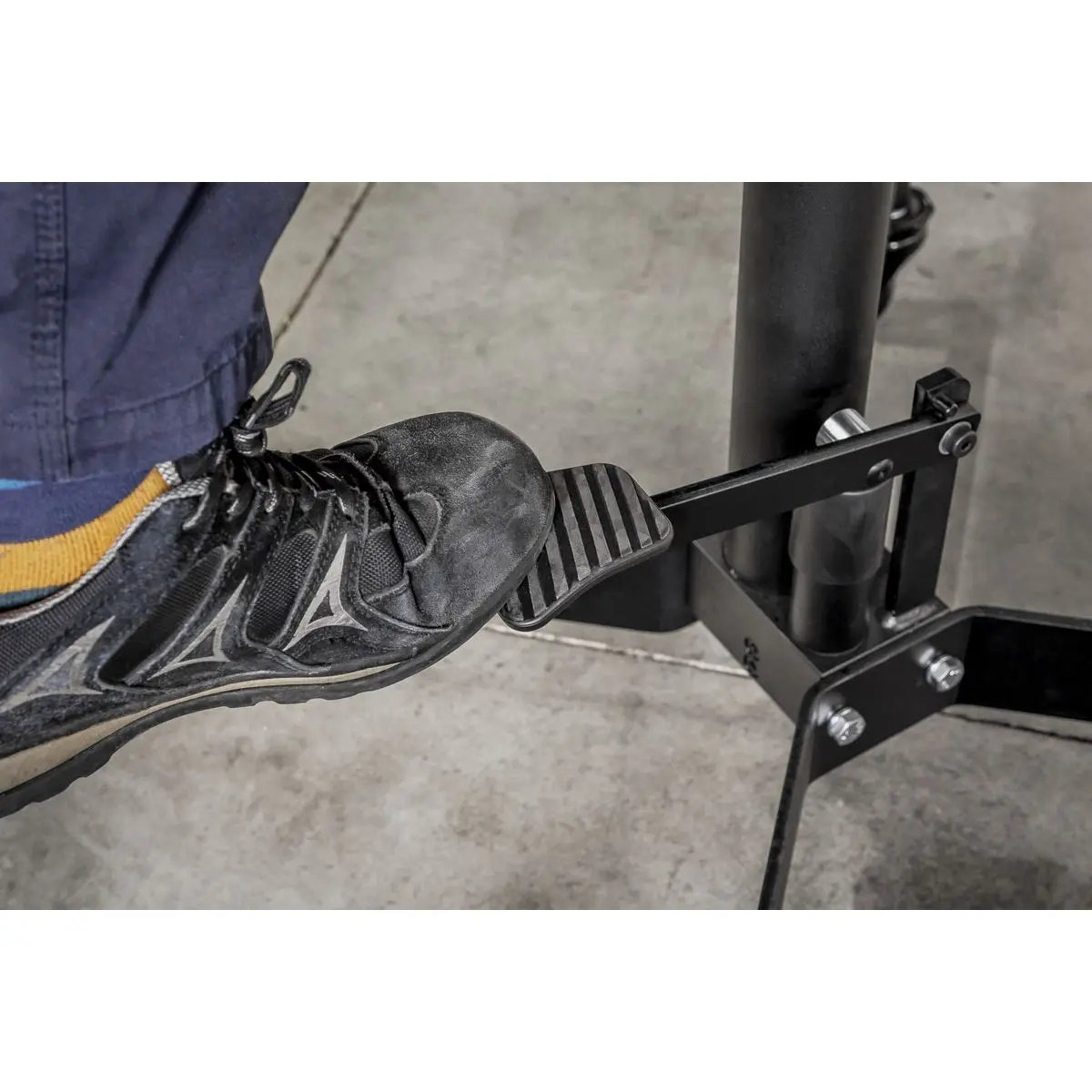

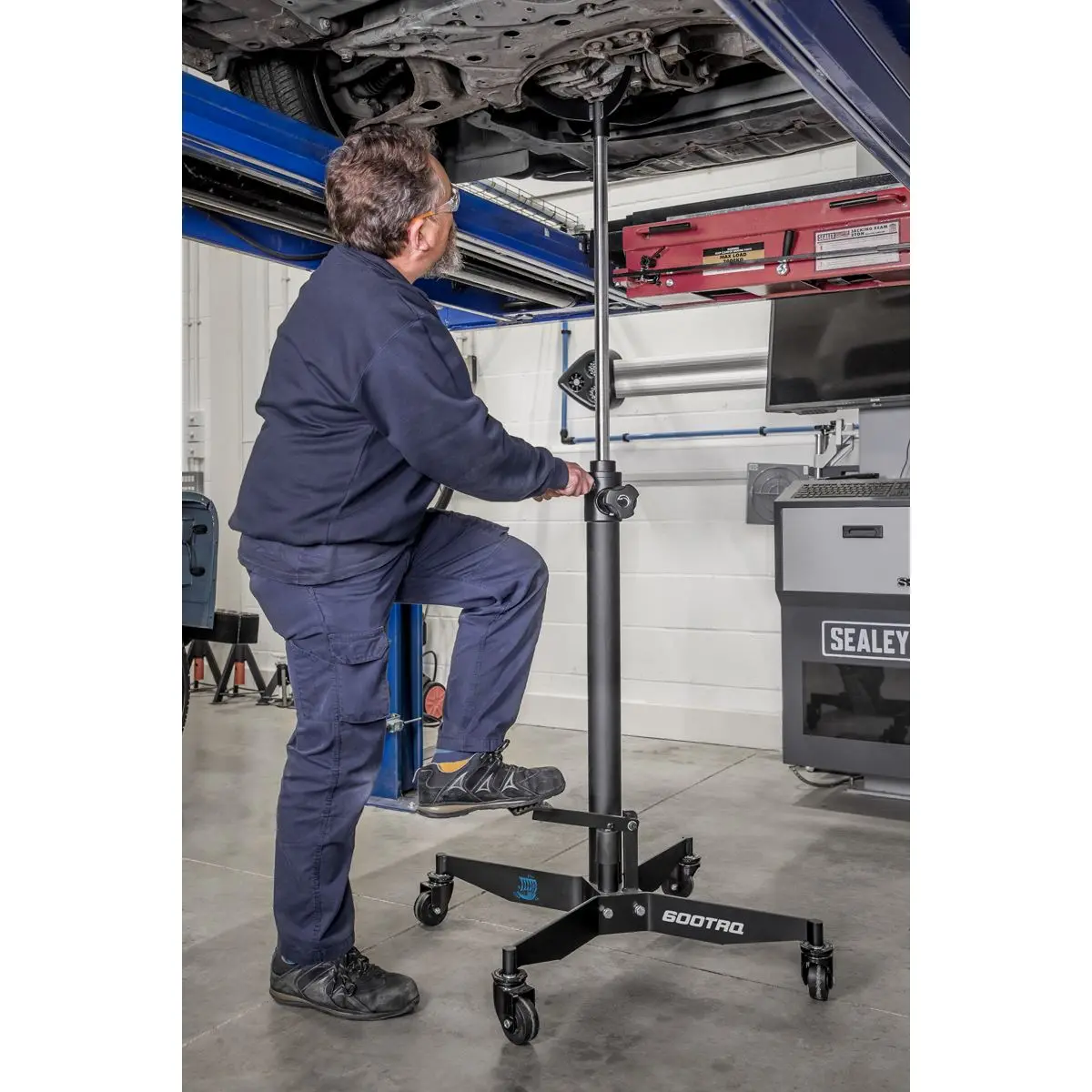

CONVENIENT - Single foot pedal operation keeps hands-free during lifting process.

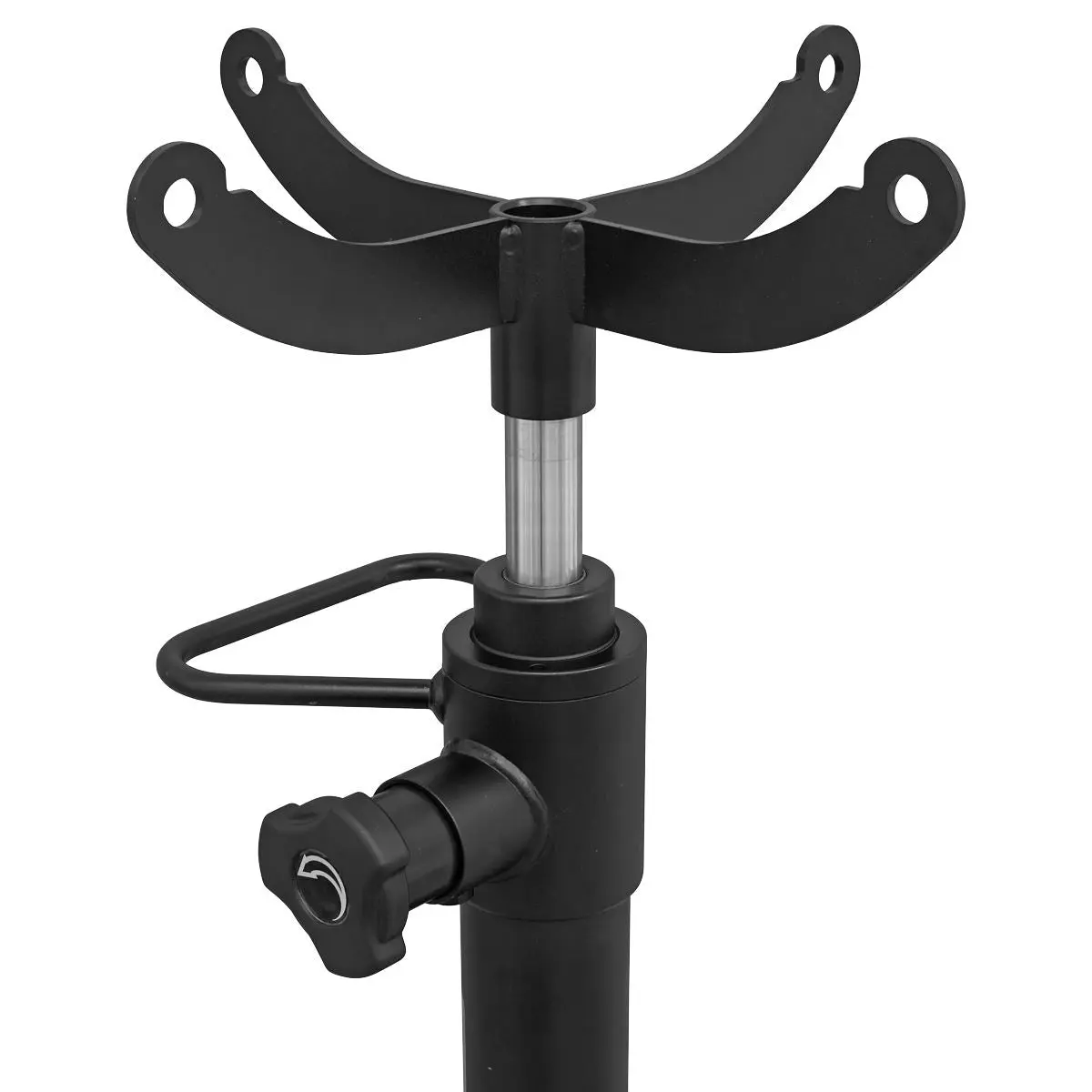

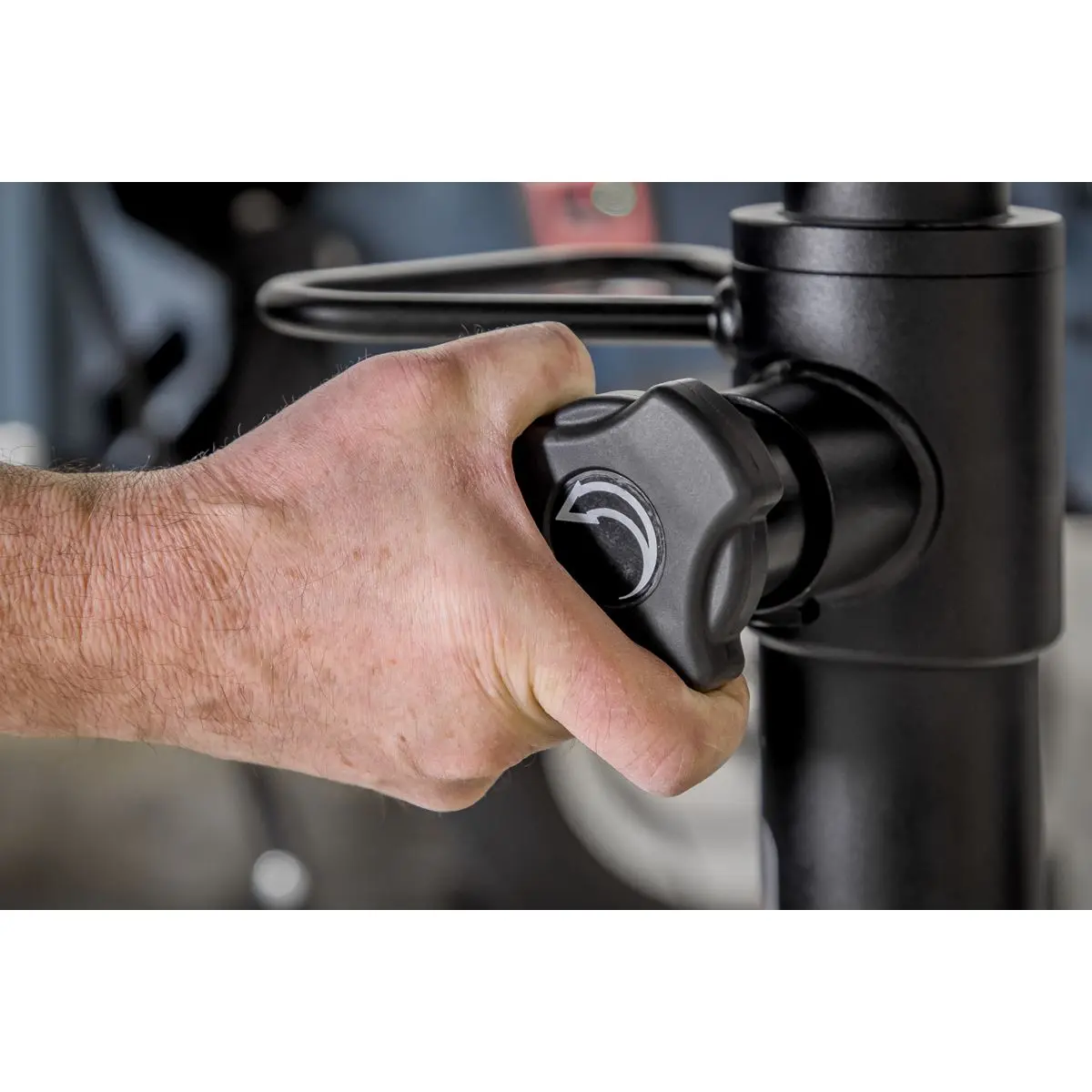

SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.

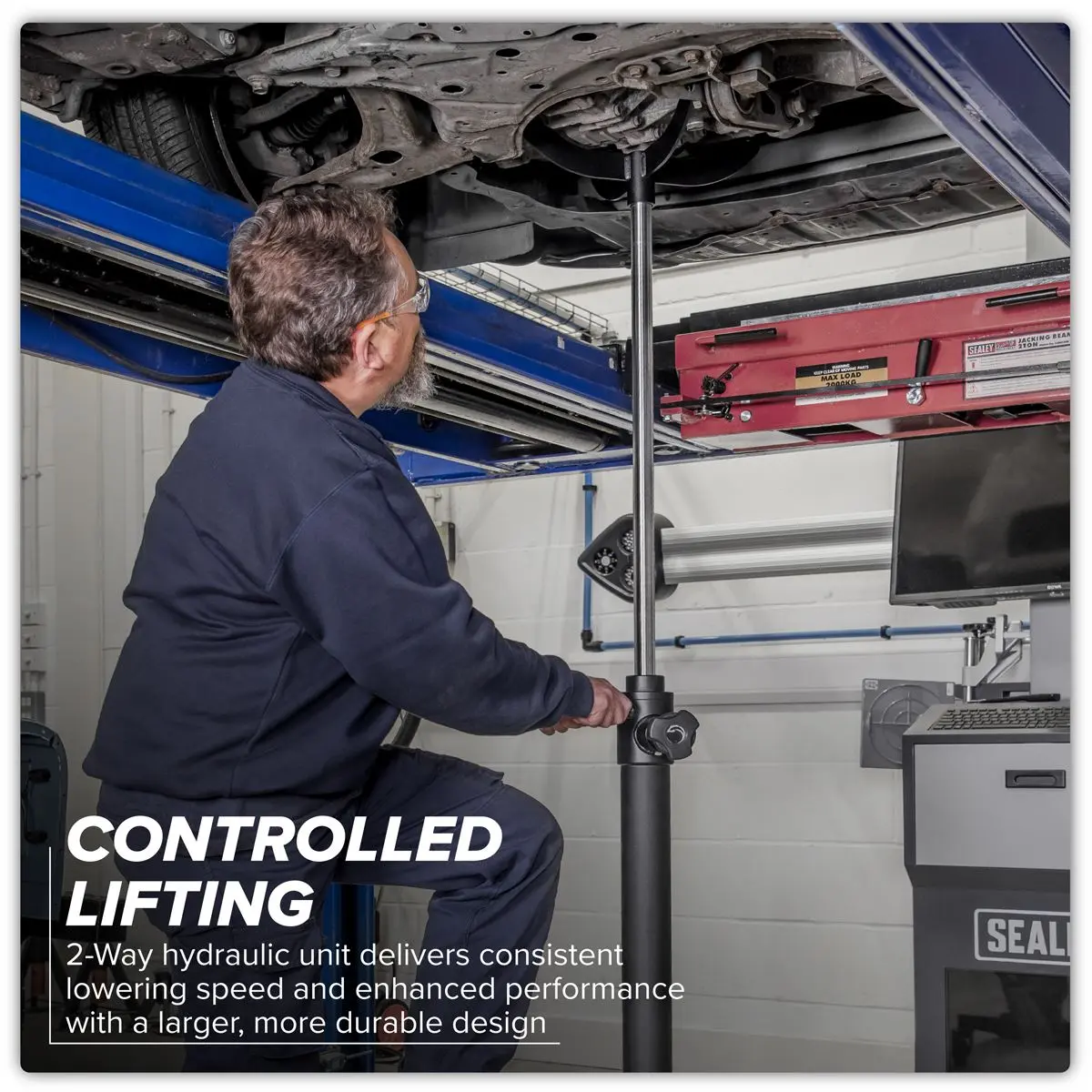

CONTROLLED - 2-Way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load.

HEAVY DUTY - Hydraulic unit larger than the economy models for improved performance and durability.

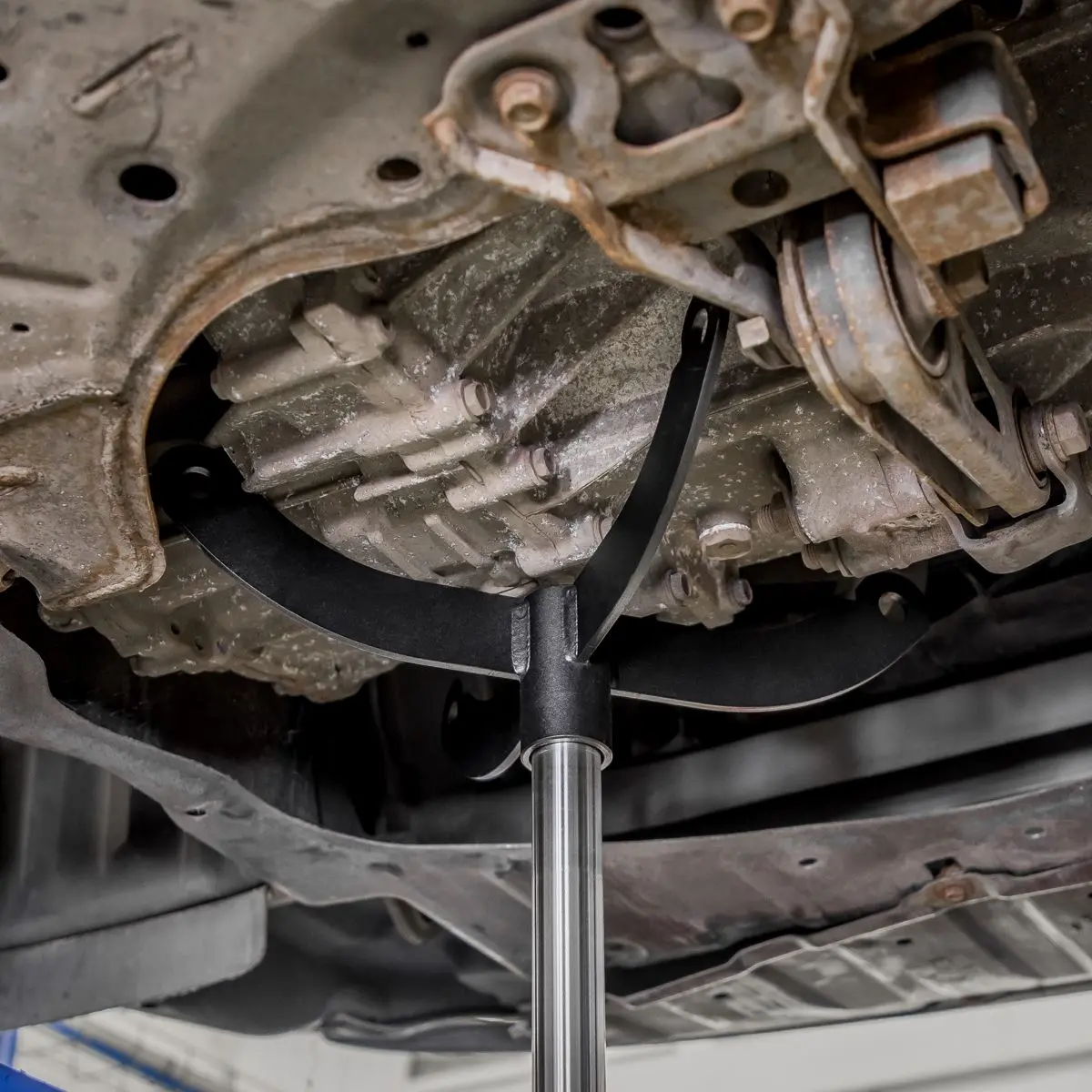

UNIVERSAL - Saddle is reversible allowing a jack pad to be fitted to support items other than transmissions.

MANEUVERABLE - Castors and side handle make the units easily positioned.

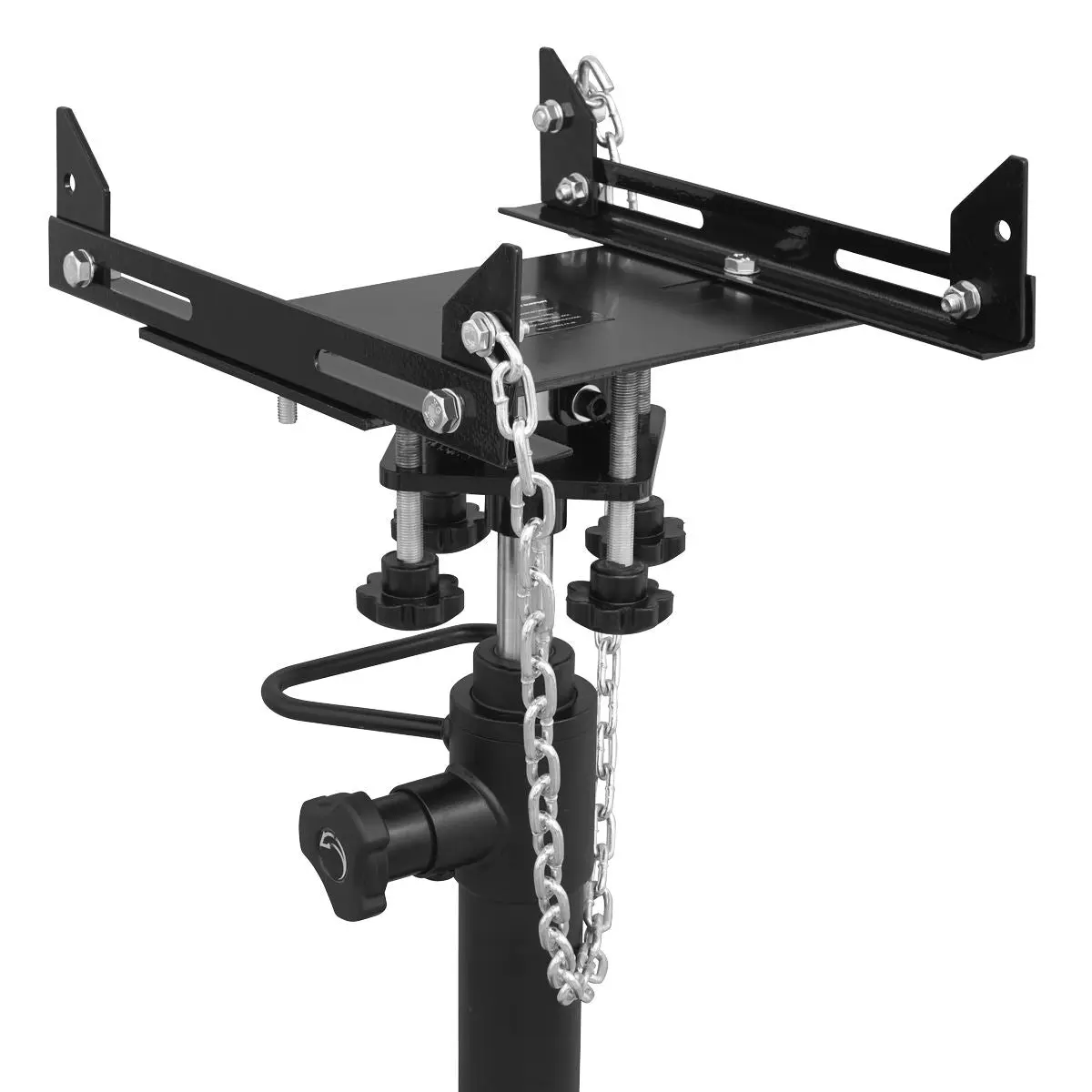

SUITABLE - for use with optional Adjustable Gearbox Support - Model No. ADT3.

3 YEAR GUARANTEE*.

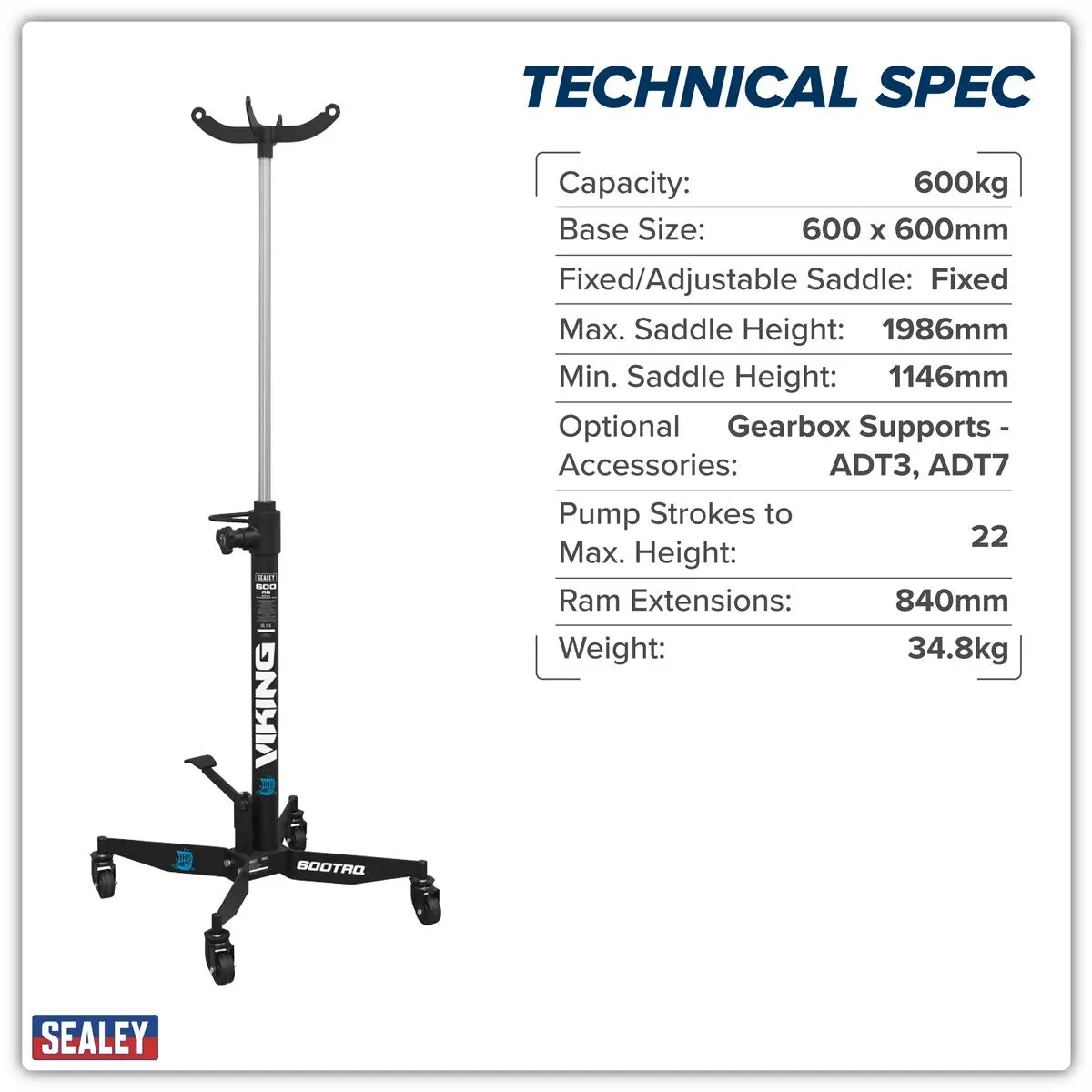

Specification:

• Model No 600TRQ
• Base Size: 600 x 600mm
• Brand: Viking
• Capacity: 600kg
• Fixed/Adjustable Saddle: Fixed
• Maximum Saddle Height: 1986mm
• Minimum Saddle Height: 1146mm
• Nett Weight: 34.8kg
• Optional Accessories: Adjustable Gearbox Supports - ADT3, ADT7
• Pump Strokes to Maximum Height: 22
• Ram Extensions: 840mm

Product Guarantee: 3 Years
Catalogue Page: Page 879

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
