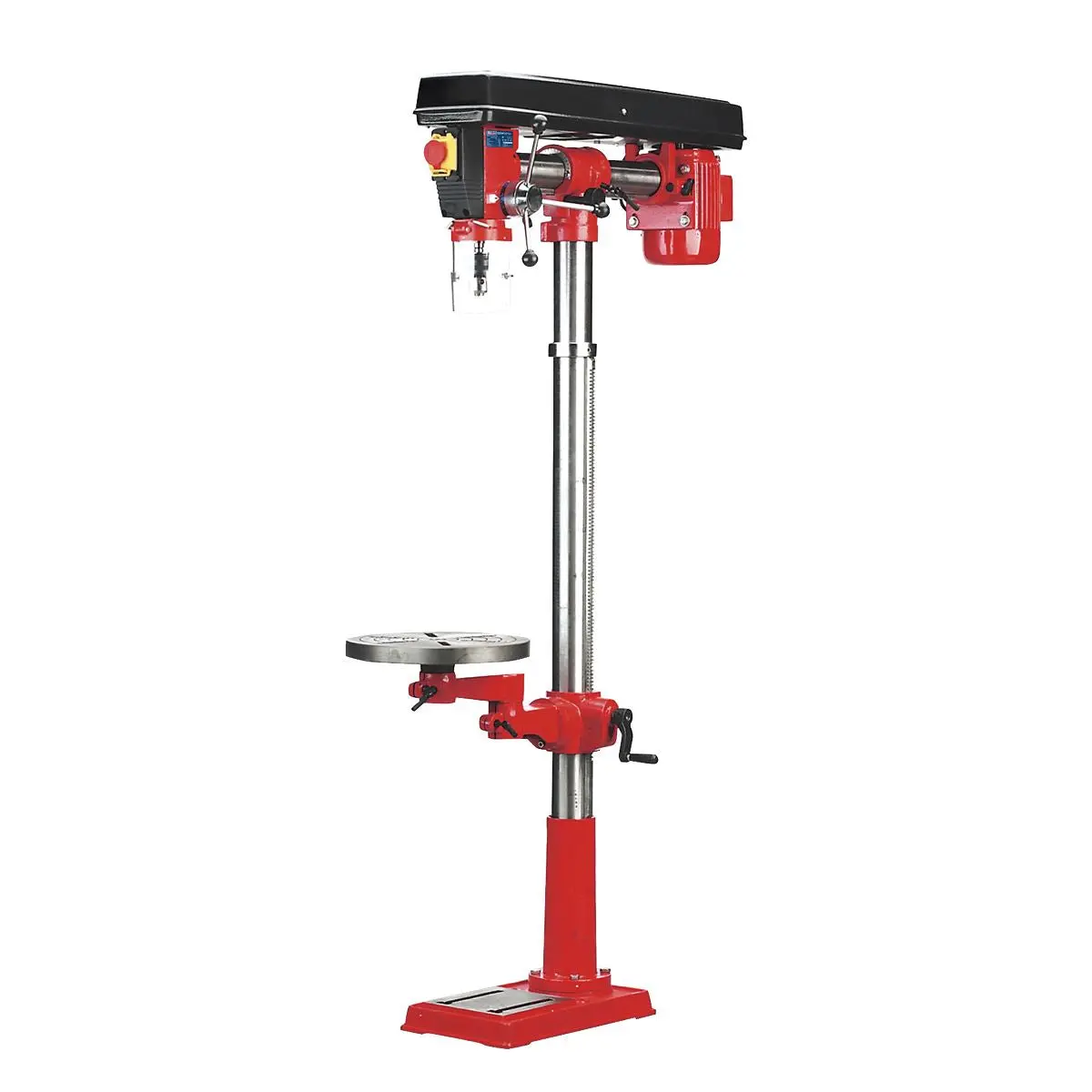

Sealey Radial Pillar Drill Floor 5-Speed 550W/230V

Sealey Floor Standing Radial Pillar Drill 5-Speed 550W/230V

Heavy-duty construction.

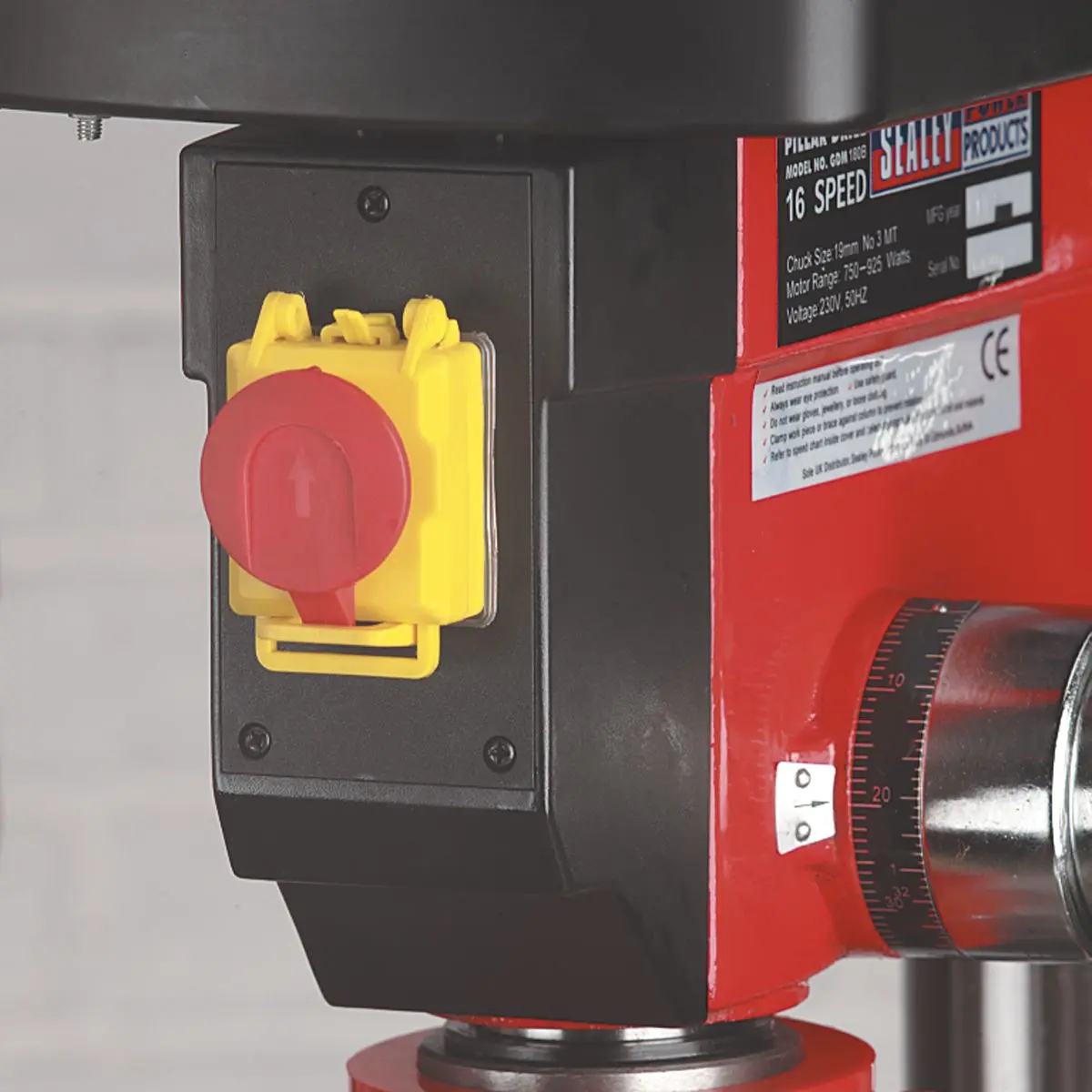

Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.

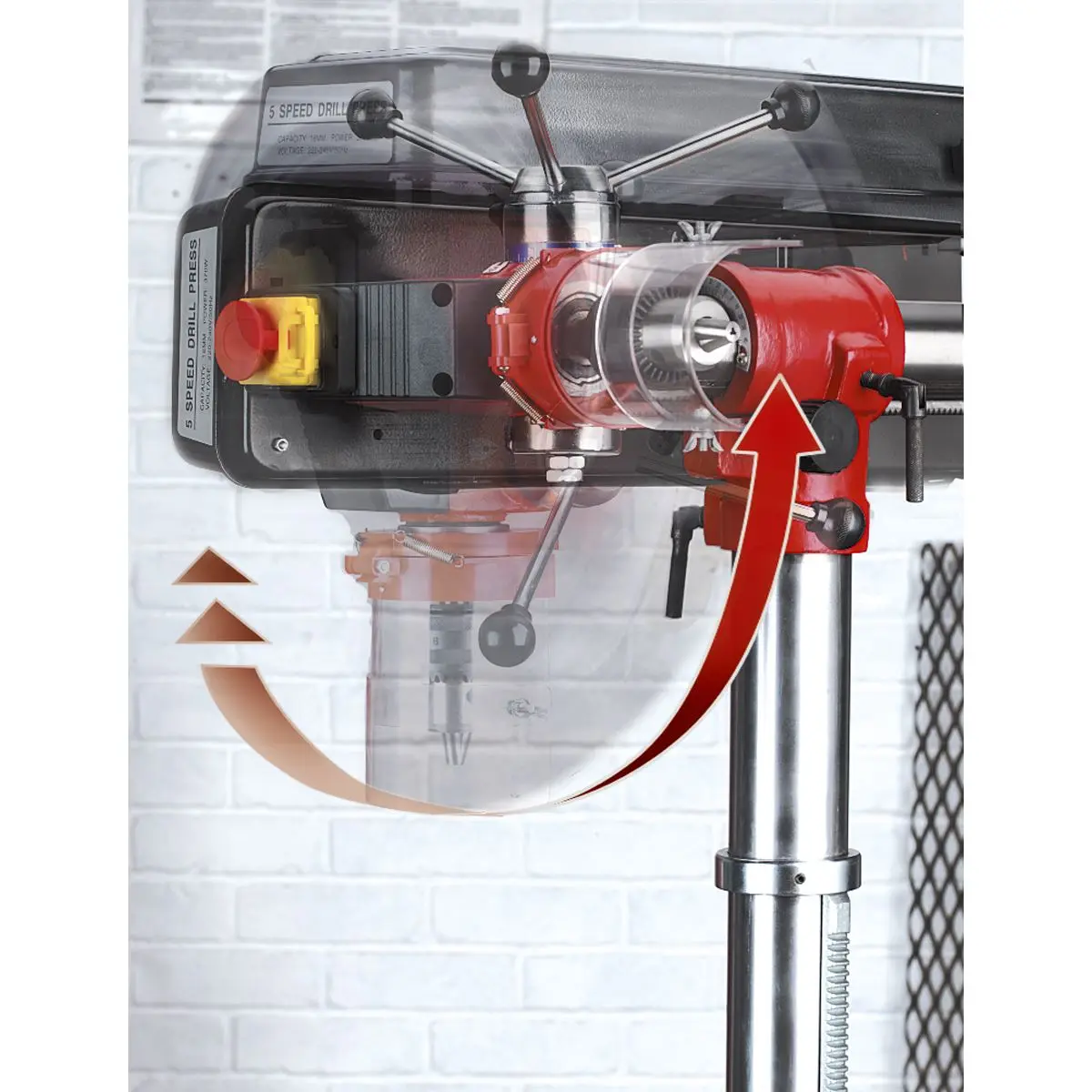

Radial feature allows off-table drilling and angle drilling.

Features a maximum throat depth of 420mm.

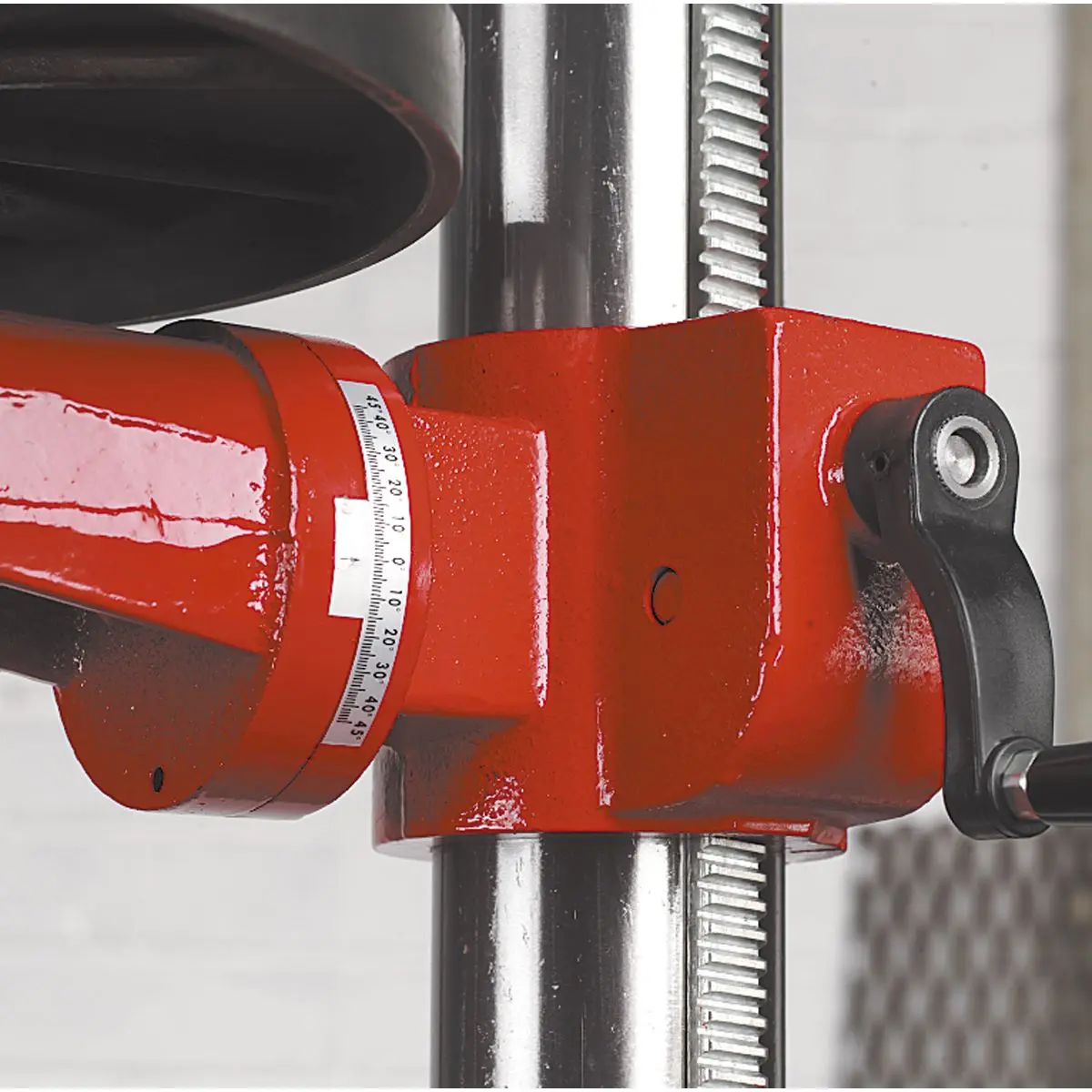

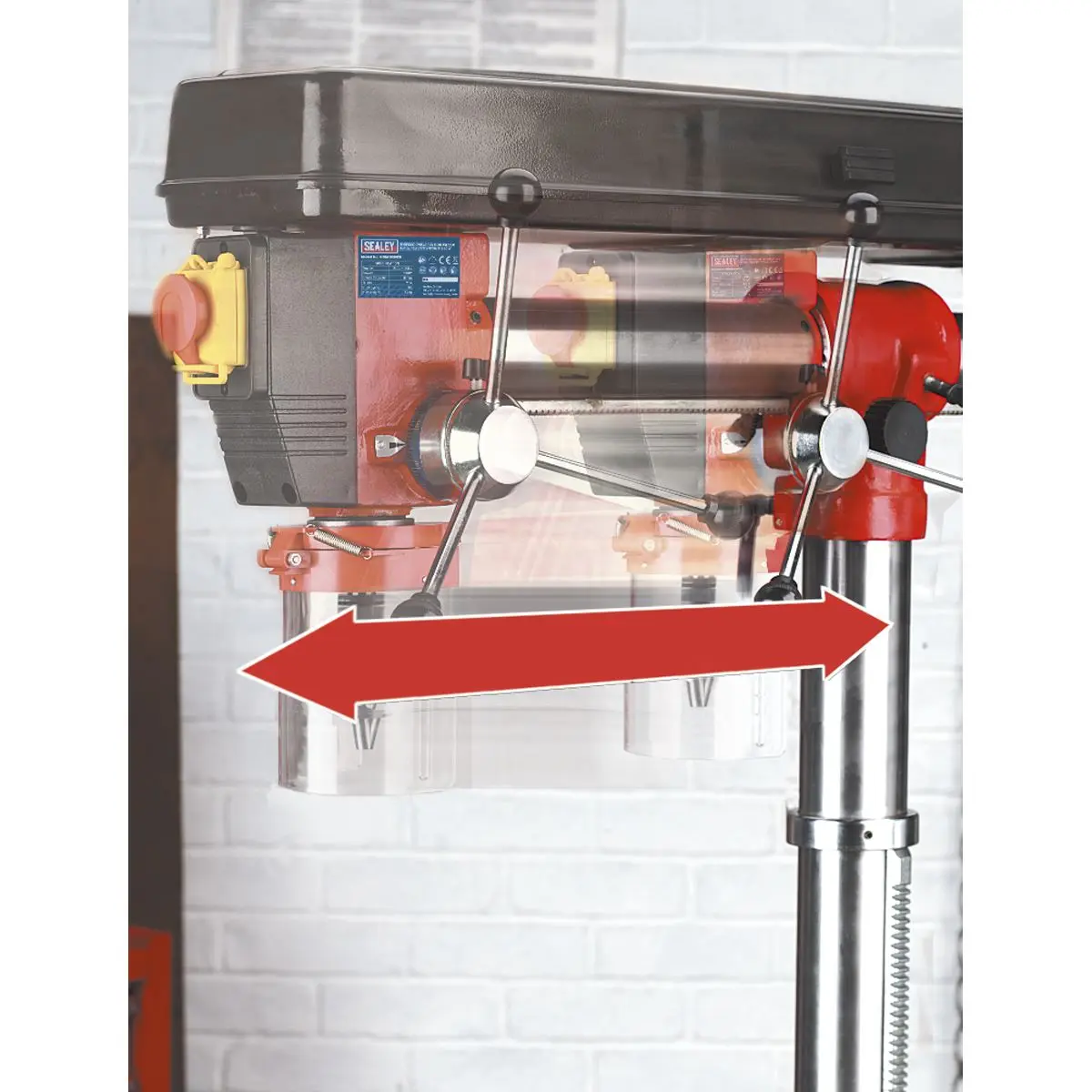

Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.

Also available as bench mounting type - GDM790BR.

Mortise attachment available, order Model No. MA10.

16mm(5/8") Capacity chuck, MT2.

Height: 1620mm.

Spindle Centre to Column - Max: 420mm.

Motor Power: 550W.

Column Diameter: 70mm.

Spindle Travel: 80mm.

Weight: 59kg.

Specification:

• Model No GDM1630FR
• Base Size: 420 x 250mm
• Brand: Sealey
• Collar Diameter: Ø60mm
• Column Diameter: Ø70mm
• Drilling Capacity (Chuck Size): 16mm
• Maximum Distance Spindle to Base: 1280mm
• Maximum Distance Spindle to Table: 830mm
• Motor Power: 550W
• Nett Weight: 59kg
• Number of Speeds: 5
• Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
• Overall Height: 1620mm
• Radial Arm Travel: 285mm
• Speed Range: 500-2450rpm
• Spindle Centre to Column: 420mm
• Spindle Nose Taper: MT2
• Spindle Travel: 80mm
• Supply: 230V
• Swing: 840mm
• Working Base Surface Size: 210 x 190mm
• Working Table Surface Size: Ø310mm

Product Guarantee: 1 Year
Catalogue Page: Page 907

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
