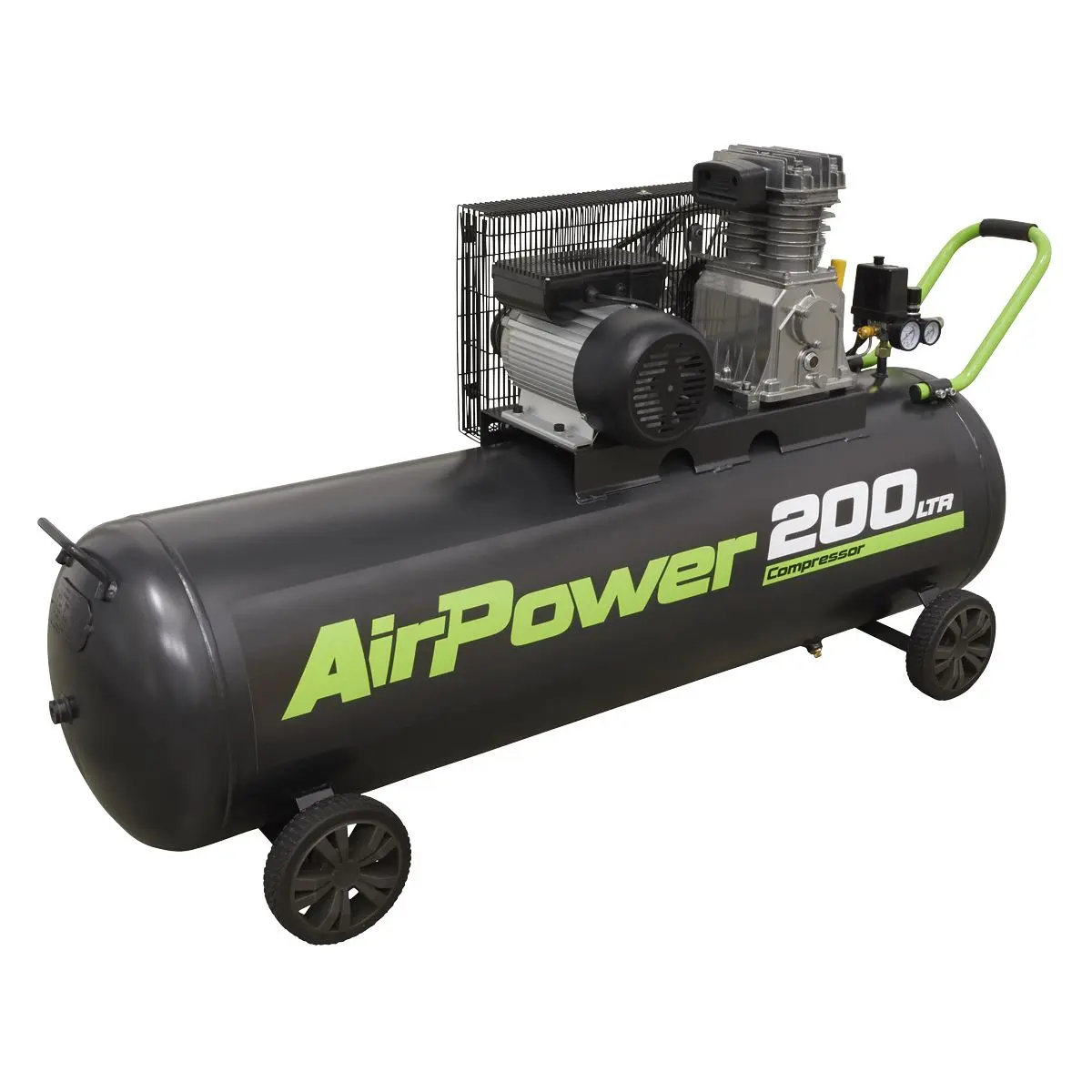

Sealey 200L Belt Drive Air Compressor 3hp

Sealey 200L Belt Drive Air Compressor 3hp

Air Displacement: 10.3cfm(293L/min).

Maximum Free Air Delivery: 6.4cfm(180L/min).

Maximum Pressure: 116psi(8bar).

Belt driven pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear.

Fitted with a 3hp motor.

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

Suitable for general-purpose workshop applications.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No SAC20030B
• Air Displacement cfm(L/min): 10.3cfm(293L/min)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 6.4(180)
• Maximum Pressure: 116psi(8bar)
• Minimum Rated Supply: 13A
• Motor Output: 3hp
• Nett Weight: 105kg
• Noise Level: 97dB(A)
• Oil Capacity: 3 x 0.3L
• Outlet: Quick release coupling
• Phase: 1ph
• Receiver Capacity: 200L
• Size (W x D x H): 1650 x 520 x 820mm
• Speed: 1000rpm
• Supply: 230V/13A

Product Guarantee: 1 Year
Catalogue Page: Page 1177

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
