Sealey 90L Belt Drive Vertical Compressor 3hp

Sealey 90L Belt Drive Vertical Compressor 3hp

Air Displacement: 13.4cfm(380L/min).

Maximum Free Air Delivery: 9.7cfm(275L/min).

Maximum Pressure: 145psi(10bar).

Suitable for the professional workshop these units are fitted with a genuine 3hp motor.

Vertical tank saves space without compromising on performance.

Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply.

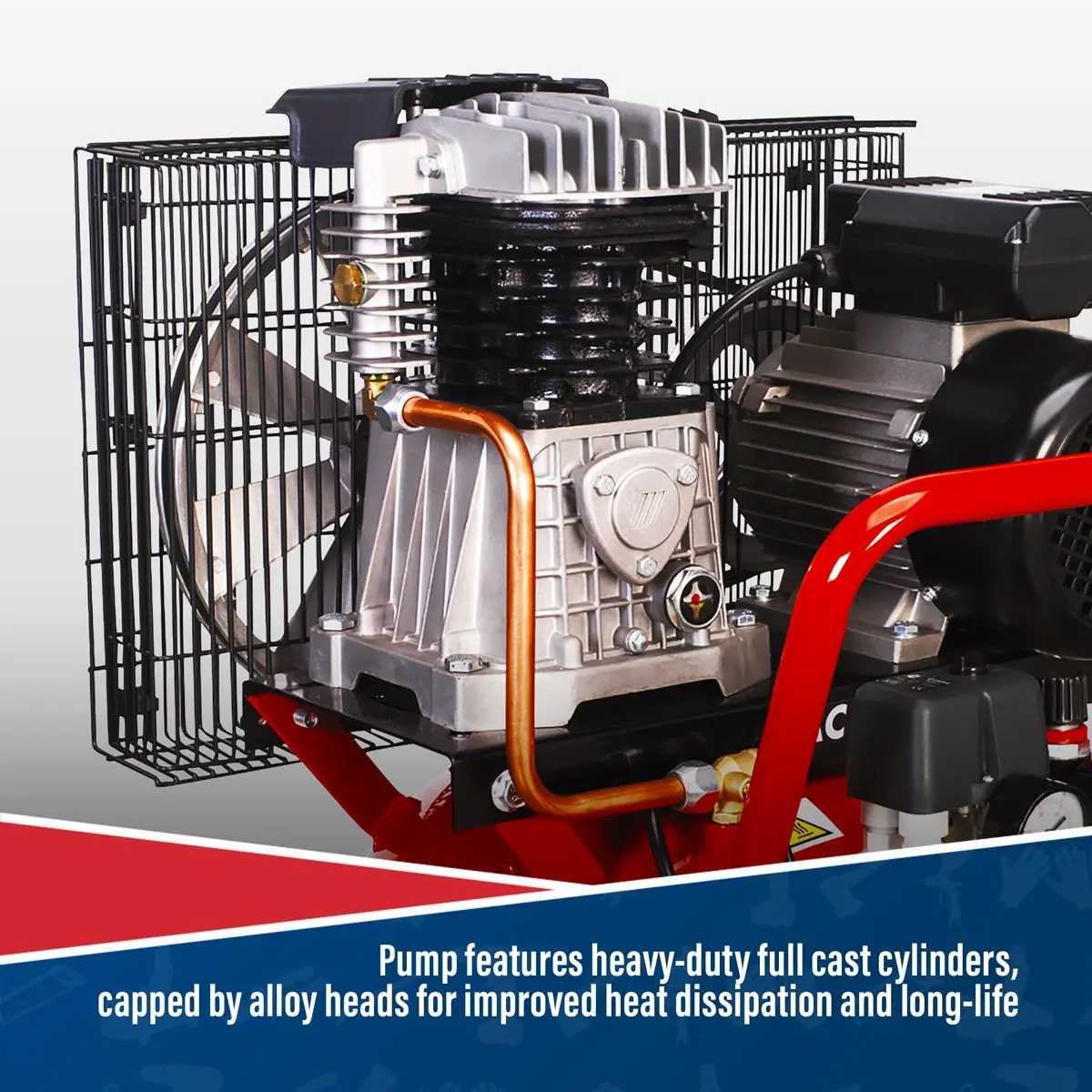

Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

Specification:

• Model No SAC1903B
• Air Displacement cfm(L/min): 13.4(380)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 9.7(275)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 13A
• Motor Output: 3hp
• Nett Weight: 65kg
• Oil Capacity: 0.45L
• Outlet: Quick Release Coupling
• Phase: 1ph
• Receiver Capacity: 90L
• Size (W x D x H): 525 x 495 x 1130mm
• Speed: 1636rpm
• Supply: 230V/13A

Product Guarantee: 1 Year
Catalogue Page: Page 1178

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
