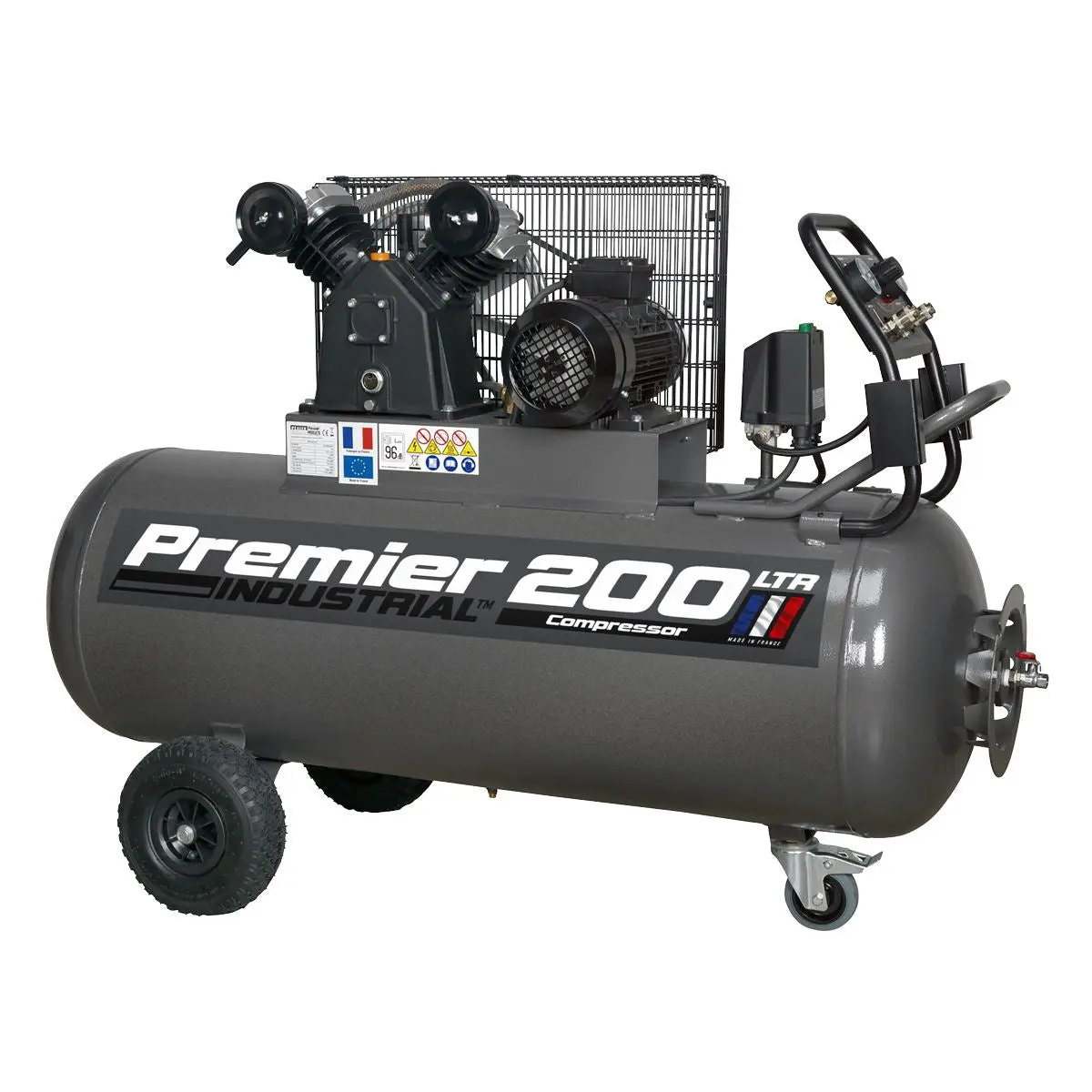

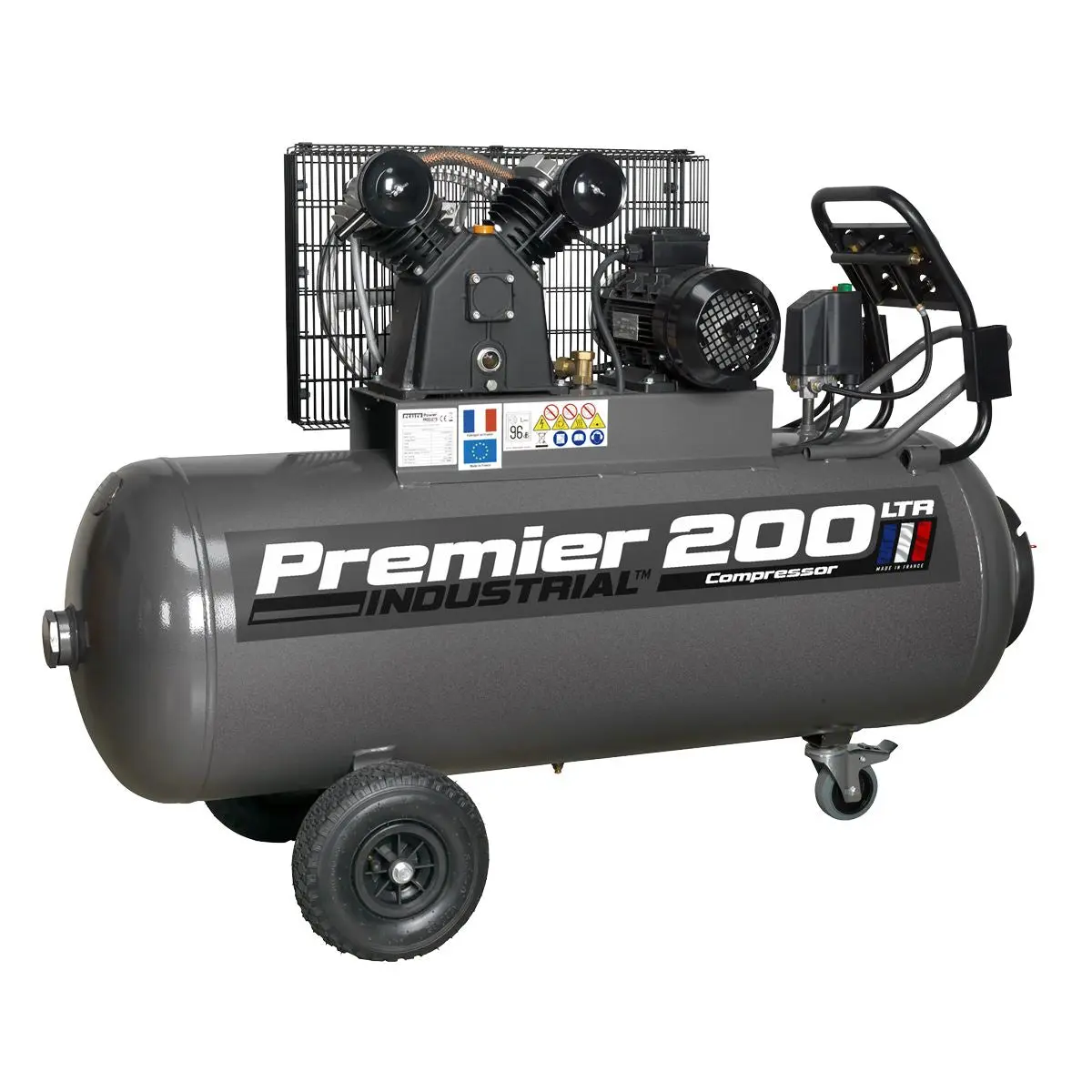

Sealey Premier 200L Belt Drive Air Compressor with Front Control Panel 3hp 415V 3ph

Sealey Premier 200L Belt Drive Air Compressor with Front Control Panel 3hp 400V

Heavy-duty 3-phase compressor suitable for the professional workshop.

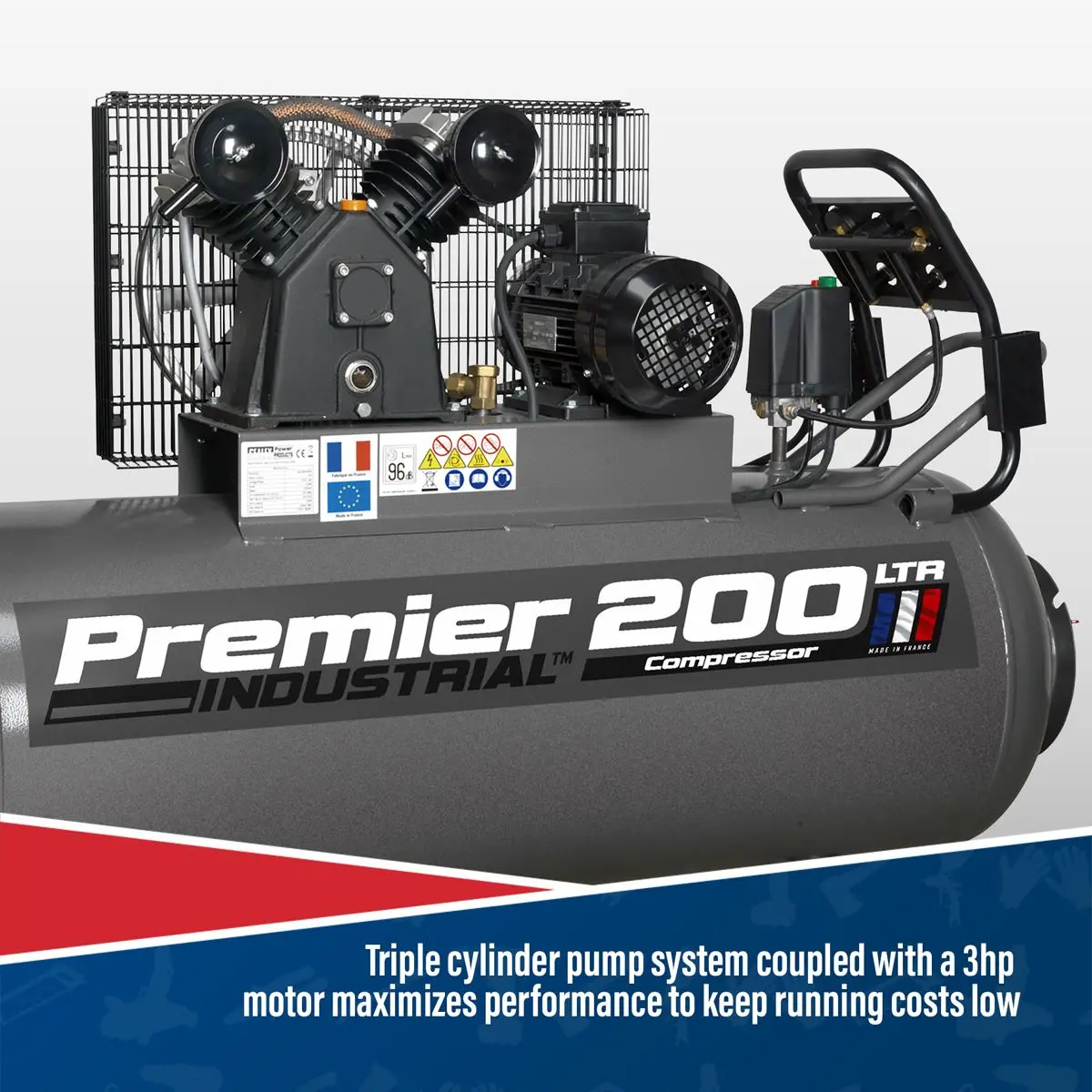

Triple cylinder pump system coupled with a 3hp motor maximizes performance to keep running costs low compared to single stage, single phase models.

Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

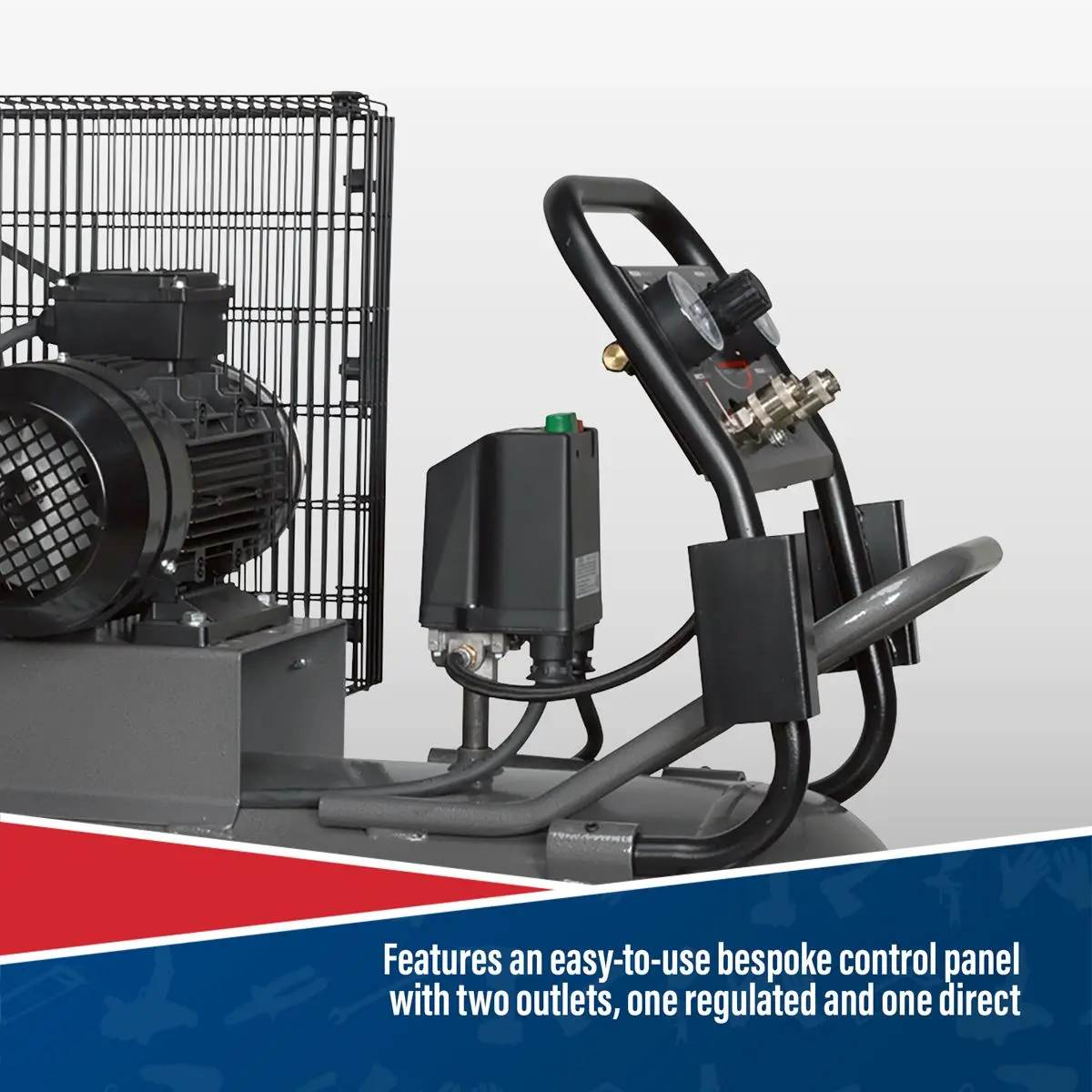

Features an easy-to-use bespoke control panel with two outlets, one regulated and one direct.

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

Heavy-duty pneumatic wheels with single front lockable castor for easy manoeuvrability.

Supplied with hose reel to keep your workspace tidy.

Full CE certification, test certificates and operating/maintenance manual.

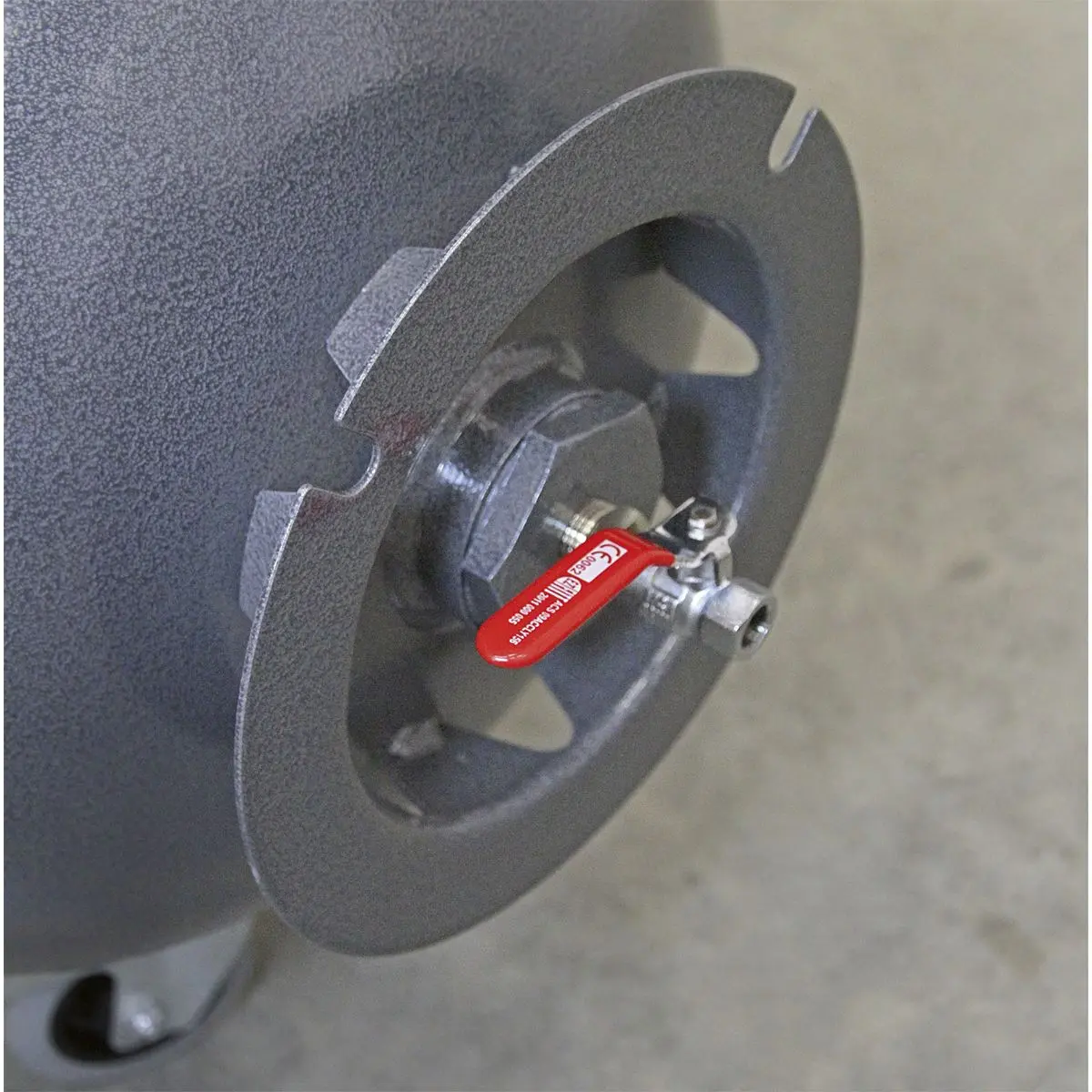

Includes a drain valve for easy release of condensed water build-up in the tank.

3 Year guarantee*.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No SAC3203B3PH

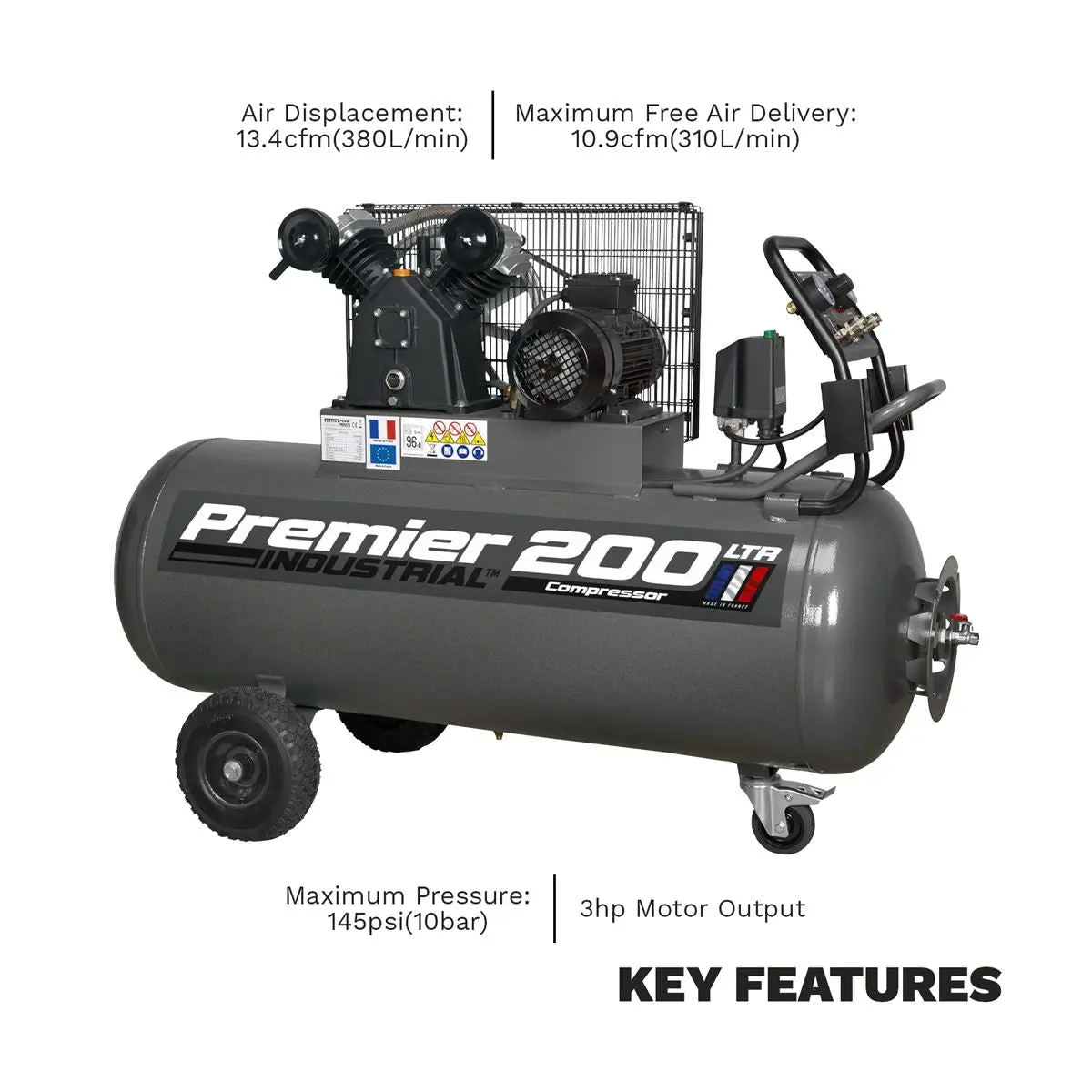

• Air Displacement cfm(L/min): 13.4(380)
• Brand: Sealey Premier
• Maximum Free Air Delivery cfm(L/min): 10.9(310)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 32A
• Motor Output: 3hp
• Nett Weight: 103kg
• Oil Capacity: 1L
• Outlet: High-Flow Quick Release Coupling
• Phase: 3ph
• Receiver Capacity: 200L
• Size (W x D x H): 1410 x 600 x 1020mm
• Speed: 1243rpm
• Supply: 400V/32A

Product Guarantee: 3 Years
Catalogue Page: Page 1181

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
